Mellanox Technologies MMA1L10-CR network transceiver module Fiber optic 10000 Mb

Part No:
980-9I17P-00CR00
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£1,090.95
£1,309.14
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 8 left.

NVIDIA – QSFP28 transceiver module – 100GBase-X – MPO multi-mode – 1310 nm

8 in stock (can be backordered)

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: 980-9I17P-00CR00 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
NVIDIA

Related products

Description

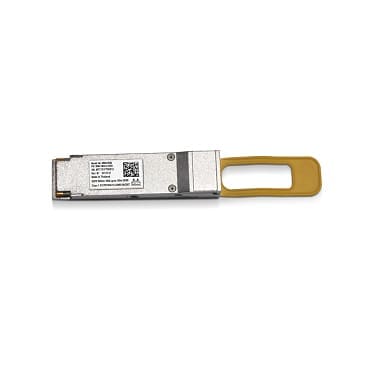

Mellanox MMA1L10-CR Optical Transceiver 100GbE QSFP28 LC-LC 1310nm LR4 up to 10km

Mellanox 100Gb/s transceiver module is designed for use in 100 Gigabit Ethernet (GbE) links on up to 10km of single mode fiber. It is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2 C interface, as specified by the QSFP28 MSA. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side the module de-multiplexes a 100Gb/s optical LAN WDM input into 4 optical signals and then converts them to 4 output channels of electrical data. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Feature Feature Value
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Interface type QSFP28
Single-mode fiber (SMF) supported Yes
Fiber optic connector QSFP28
Maximum transfer distance 10000 m
Wavelength 1310 nm
Networking standards IEEE 802.3ba, IEEE 802.3bm
Input voltage 3.6 V
Power consumption (typical) 3.5 W
Compliance certificates RoHS
Operating temperature (T-T) 0 – 70 °C
Storage temperature (T-T) -40 – 85 °C
Operating relative humidity (H-H) 15 – 85%
Width 18.7 mm
Depth 123.3 mm

Additional information

SFP transceiver type

Fiber optic
Interface type

QSFP28
Fiber optic connector

QSFP28
Wavelength

1310 nm
Input voltage

3.6 V
Compliance certificates

RoHS
Storage temperature (T-T)

-40 – 85 °C
Width

18.7 mm
Maximum data transfer rate

10000 Mbit/s
Maximum transfer distance

10000 m
Networking standards

IEEE 802.3ba, IEEE 802.3bm
Power consumption (typical)

3.5 W
Operating temperature (T-T)

0 – 70 °C
Depth

123.3 mm

Brand

NVIDIA
