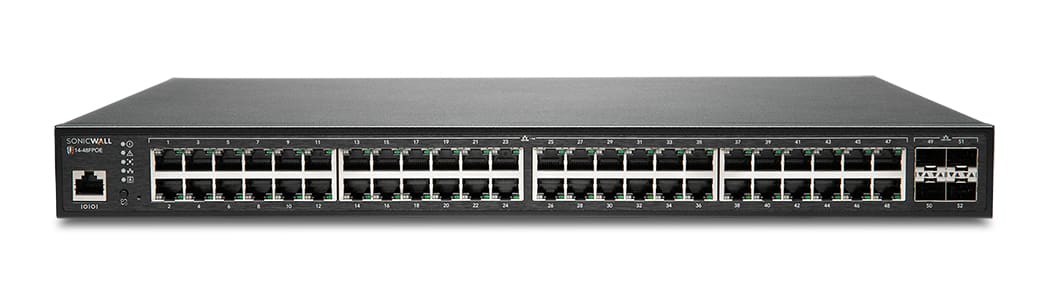

SonicWall S14-48FPOE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Part No:
02-SSC-8383
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£1,468.11
£1,761.73
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

SonicWall Switch SWS14-48FPOE – Switch – Managed – 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ – rack-mountable – PoE+ (740 W) – with 1 year 24×7 Support

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: 02-SSC-8383 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Sonicwall

Related products

Description

Explore the Switch Series
Your network is under more pressure than ever. As the number of connected devices expands, bandwidth demands continue to soar, making it difficult to consistently provide the secure, high-speed connection your business depends on.

SonicWall’s feature-rich switches answer the challenge delivering high-speed switching, so you can add more devices, keep up with SaaS proliferation and gain more control, all while protecting your network and your budget.

Its unified security posture makes it ideal for small and medium-sized businesses and Software Defined Branch (SD-Branch) deployments. Keep pace with the changing network and security landscape.

SD-Branch Ready
Integrates seamlessly with the SonicWall ecosystem to provide unified security posture.

10 Gigabit Connectivity
Attain significant boost in your overall switching performance as network demands grow.

Flexible Management
Whether through the firewall or Wireless Network Manager, with our single-pane-of-glass view, managing your security is easy.

Zero-Touch Deployment
Quickly set up, configure and deploy devices without the time and expense of site visits or on-site personnel.

Various Deployment Options
Multiple models provide you the flexibility to choose the best option aligned with your business goals.

Feature Feature Value
Switch type Managed
Switch layer L2
System event log Yes
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45
Networking standards IEEE 802.1af, IEEE 802.1p, IEEE 802.1x
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port mirroring Yes
IP routing Yes
Auto MDI/MDI-X Yes
VLAN support Yes
Virtual LAN features Tagged VLAN
Number of VLANs 4096
MAC address table 32000 entries
Switching capacity 176 Gbit/s
Jumbo frames support Yes
Security algorithms 802.1x RADIUS, SSH
Multicast support Yes
Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators LAN, PoE
Number of fans 3 fan(s)
Certification FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Internal memory 512 MB
Flash memory 128 MB
Mean time between failures (MTBF) 100645 h
Power source AC
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 12 A
Power consumption (max) 885 W
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 740 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 95%
Heat dissipation 1807.3 BTU/h
Width 440 mm
Depth 44 mm
Height 310 mm
Weight 4.8 kg

Additional information

Switch type

Managed
System event log

Yes
Console port

RJ-45
10G support

Yes
Port mirroring

Yes
Auto MDI/MDI-X

Yes
Virtual LAN features

Tagged VLAN
MAC address table

32000 entries
Jumbo frames support

Yes
Multicast support

Yes
Form factor

1U
LED indicators

LAN, PoE
Certification

FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Flash memory

128 MB
Power source

AC
AC input voltage

100 – 240 V
Input current

12 A
Power over Ethernet (PoE)

Yes
Operating temperature (T-T)

0 – 40 °C
Width

440 mm
Height

310 mm
Switch layer

L2
SFP module slots quantity

4
Networking standards

IEEE 802.1af, IEEE 802.1p, IEEE 802.1x
IP routing

Yes
VLAN support

Yes
Number of VLANs

4096
Switching capacity

176 Gbit/s
Security algorithms

802.1x RADIUS, SSH
Rack mounting

Yes
Product colour

Black
Number of fans

3 fan(s)
Internal memory

512 MB
Power supply included

Yes
AC input frequency

50/60 Hz
Power consumption (max)

885 W
Storage temperature (T-T)

-40 – 70 °C
Heat dissipation

1807.3 BTU/h
Depth

44 mm
Weight

4.8 kg

Brand

Sonicwall
