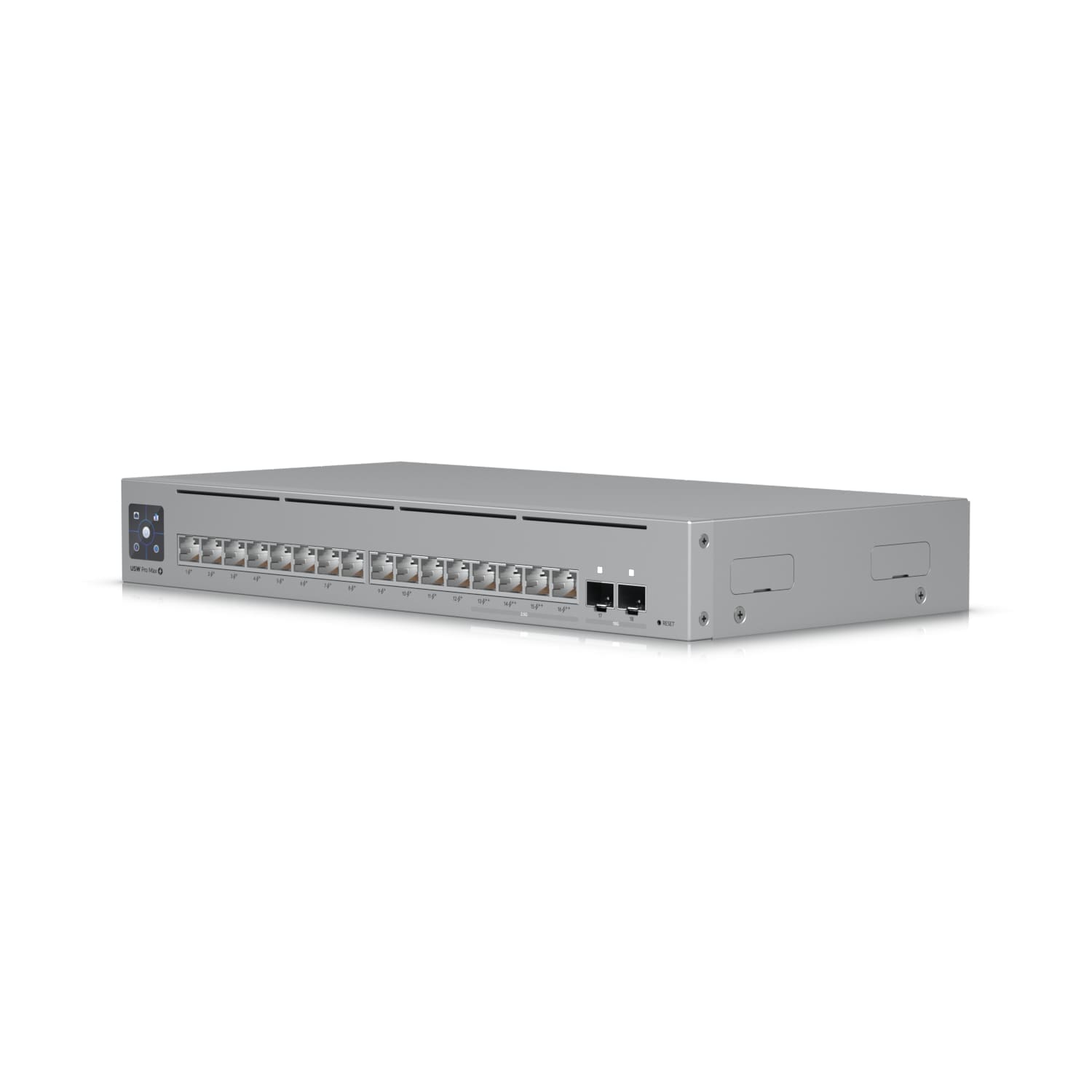

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Eth

Part No:
USW-PRO-MAX-16-POE
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£289.26
£347.11
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 4 left.

Ubiquiti Switch UniFi 12xRJ45 GBit/4xRJ45 2.5G/2xSFP+ Managed PoE+ 180W Max optional 19″ Rack-Mountable, 1,3″ Touchscreen

4 in stock (can be backordered)

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: USW-PRO-MAX-16-POE Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Ubiquiti Networks

Related products

Description

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Feature Feature Value
Switch type Managed
Switch layer L3
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 12
2.5G Ethernet (copper) ports quantity 4
SFP+ module slots quantity 2
Power connector DC-in jack
Networking standards IEEE 802.1x
10G support Yes
Port mirroring Yes
Flow control support Yes
Broadcast storm control Yes
Rate limiting Yes
VLAN support Yes
Virtual LAN features Voice VLAN
Switching capacity 84 Gbit/s
Throughput 42 Gbit/s
Forwarding rate 62.496 Mpps
Jumbo frames support Yes
DHCP features DHCP snooping, DHCPv6 relay
IGMP snooping Yes
Loop protection Yes
Multicast support Yes
Rack mounting Yes
Product colour Grey
Housing material Steel
Reset button Yes
LED indicators System
Display type LCM
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Power source AC/DC
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
DC input voltage 44 – 57 V
Power consumption (max) 30 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 12
Power over Ethernet 4PPoE (PoE++) ports quantity 4
Power over Ethernet (PoE) power per port 15 W
Total Power over Ethernet (PoE) budget 180 W
Operating temperature (T-T) -5 – 40 °C
Operating relative humidity (H-H) 10 – 90%
Width 325.1 mm
Depth 160 mm
Height 43.7 mm
Weight 2.1 kg
Cables included Power
Manual Yes
Mounting brackets included Yes

Additional information

Switch type

Managed
SFP module slots quantity

2
Networking standards

IEEE 802.1x
Port mirroring

Yes
Broadcast storm control

Yes
VLAN support

Yes
Switching capacity

84 Gbit/s
Forwarding rate

62.496 Mpps
DHCP features

DHCP snooping, DHCPv6 relay
Loop protection

Yes
Rack mounting

Yes
Housing material

Steel
LED indicators

System
Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC)
Power supply included

Yes
AC input voltage

100 – 240 V
DC input voltage

44 – 57 V
Power over Ethernet (PoE)

Yes
Depth

160 mm
Weight

2.1 kg
Manual

Yes
Switch layer

L3
Power connector

DC-in jack
10G support

Yes
Flow control support

Yes
Rate limiting

Yes
Virtual LAN features

Voice VLAN
Throughput

42 Gbit/s
Jumbo frames support

Yes
IGMP snooping

Yes
Multicast support

Yes
Product colour

Grey
Reset button

Yes
Display type

LCM
Power source

AC/DC
AC input frequency

50/60 Hz
Power consumption (max)

30 W
Operating temperature (T-T)

-5 – 40 °C
Width

325.1 mm
Height

43.7 mm
Cables included

Power
Mounting brackets included

Yes

Brand

Ubiquiti Networks
