Description

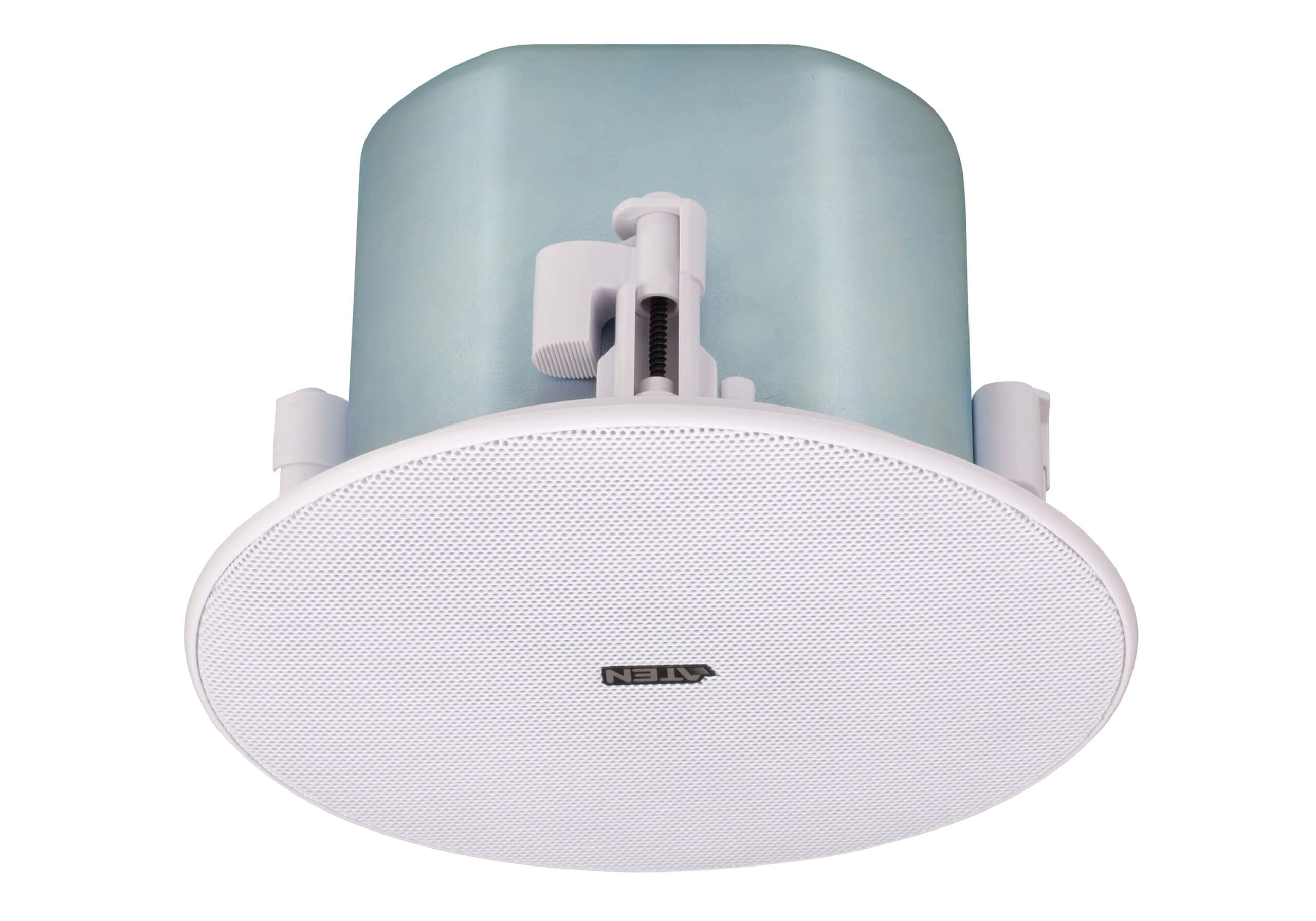

The AS104 comes in a pair of 4” coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4” woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 – 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.

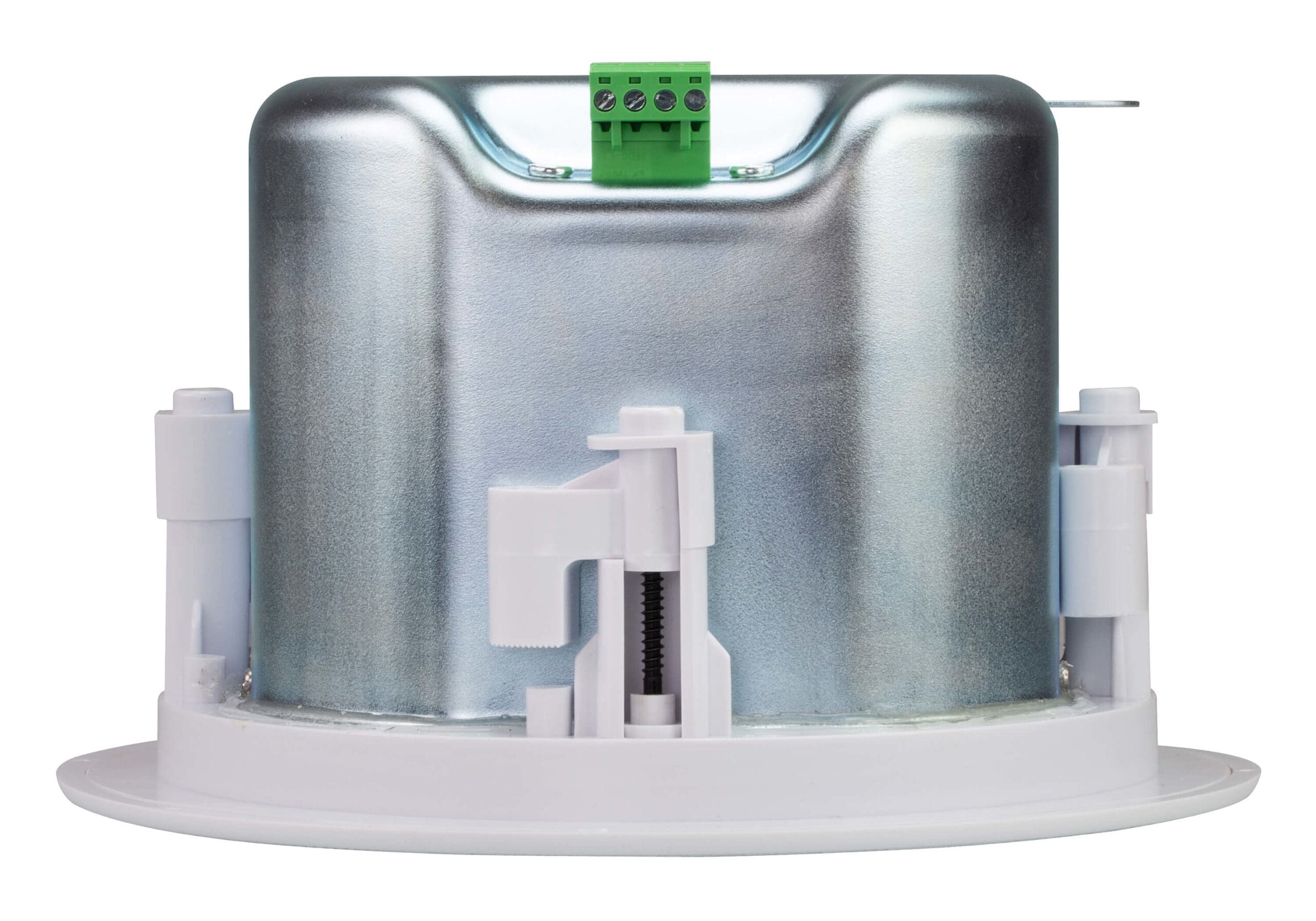

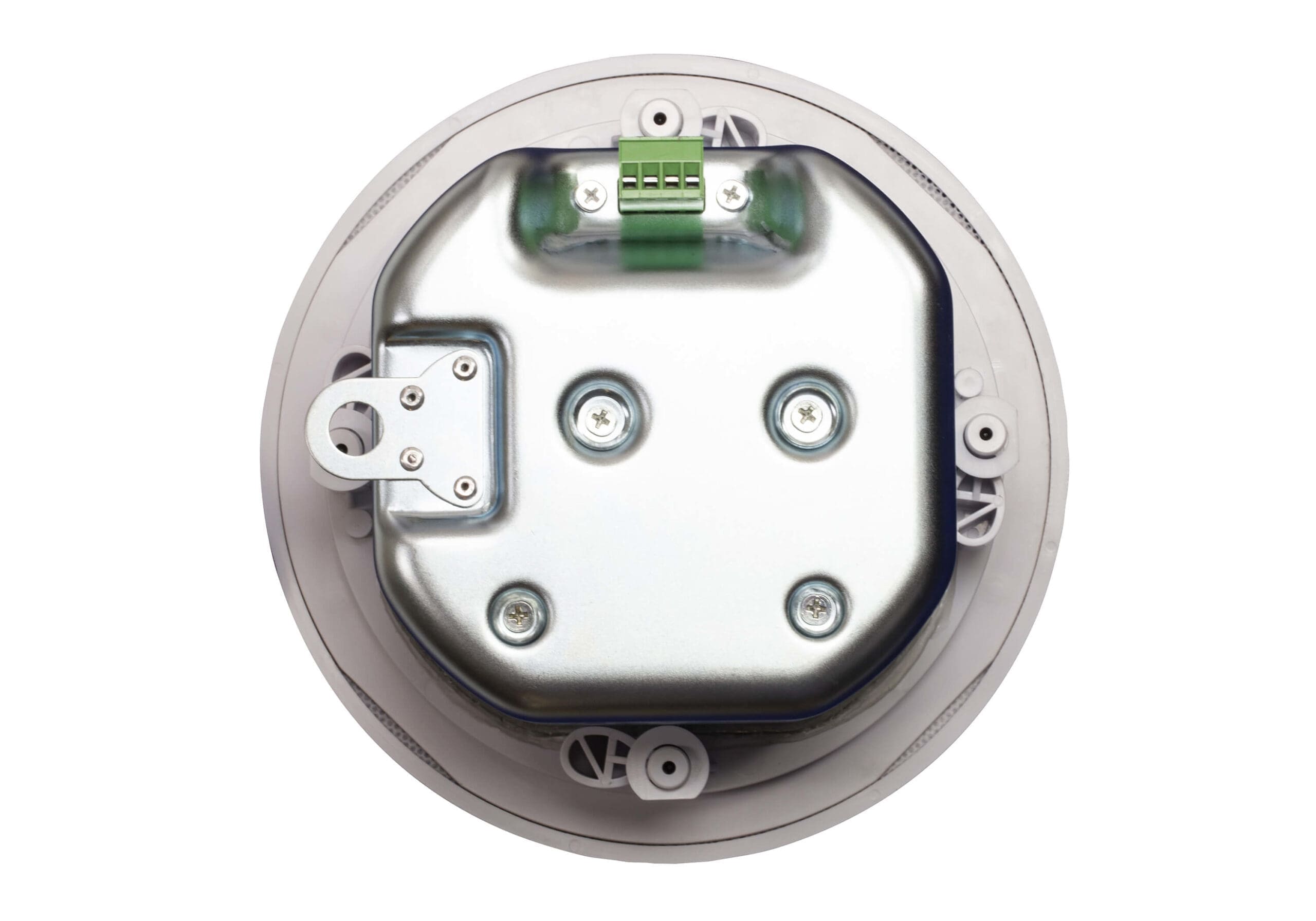

The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
| Feature |
Feature Value |
| Speaker type |
2-way |
| Speaker placement |
Ceiling-mountable |
| Number of drivers |
2 |
| Tweeter |
Yes |
| Number of tweeter drivers |
1 |
| Tweeter diameter |
2 cm |
| Woofer |
Yes |
| Number of woofer drivers |
1 |
| Woofer diameter |
10.2 cm |
| RMS rated power |
30 W |
| Peak Music Power Output (PMPO) |
60 W |
| Frequency range |
100 – 20000 Hz |
| Impedance |
8 Ω |
| Sensitivity |
86 dB |
| Total Harmonic Distortion (THD) |
5% |
| Product colour |
White |
| Recommended usage |
Universal |
| Housing material |
Plastic, Rubber, Steel |
| Amplifier |
No |
| Connectivity technology |
Wired |
| Bluetooth |
No |
| Power source type |
DC |
| Transformer taps |
2.5,5,10,20 W |
| Width |
218 mm |
| Depth |
218 mm |
| Height |
130 mm |
| Weight |
2.2 kg |
| Package weight |
9.46 kg |
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Compliance certificates |
CE, RoHS, WEEE |
| Master (outer) case width |
350 mm |
| Master (outer) case length |
725 mm |
| Master (outer) case height |
200 mm |
| Master (outer) case gross weight |
9.46 kg |
| Master (outer) case net weight |
6.6 kg |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case volume |
50687.16 cm³ |
| Country of origin |
China |
| Package volume |
50687.16 cm³ |
| Sustainability compliance |
Yes |
