Description
5.1.2 Channel Q Class
Fill your room with sound, bringing the movie theater experience into your home.
620 Watts Power
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.
Dolby Atmos & DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
RayDanz Technology
Patented technology that dramatically widens the sound stage for an amazing acoustic experience.
Auto Room Calibration (AI Sonic)
Get optimal sound quality no matter where you are in the room with Auto Room Calibration.
Bluetooth
Stream all your favorite music and podcasts wirelessly from your Bluetooth® device.

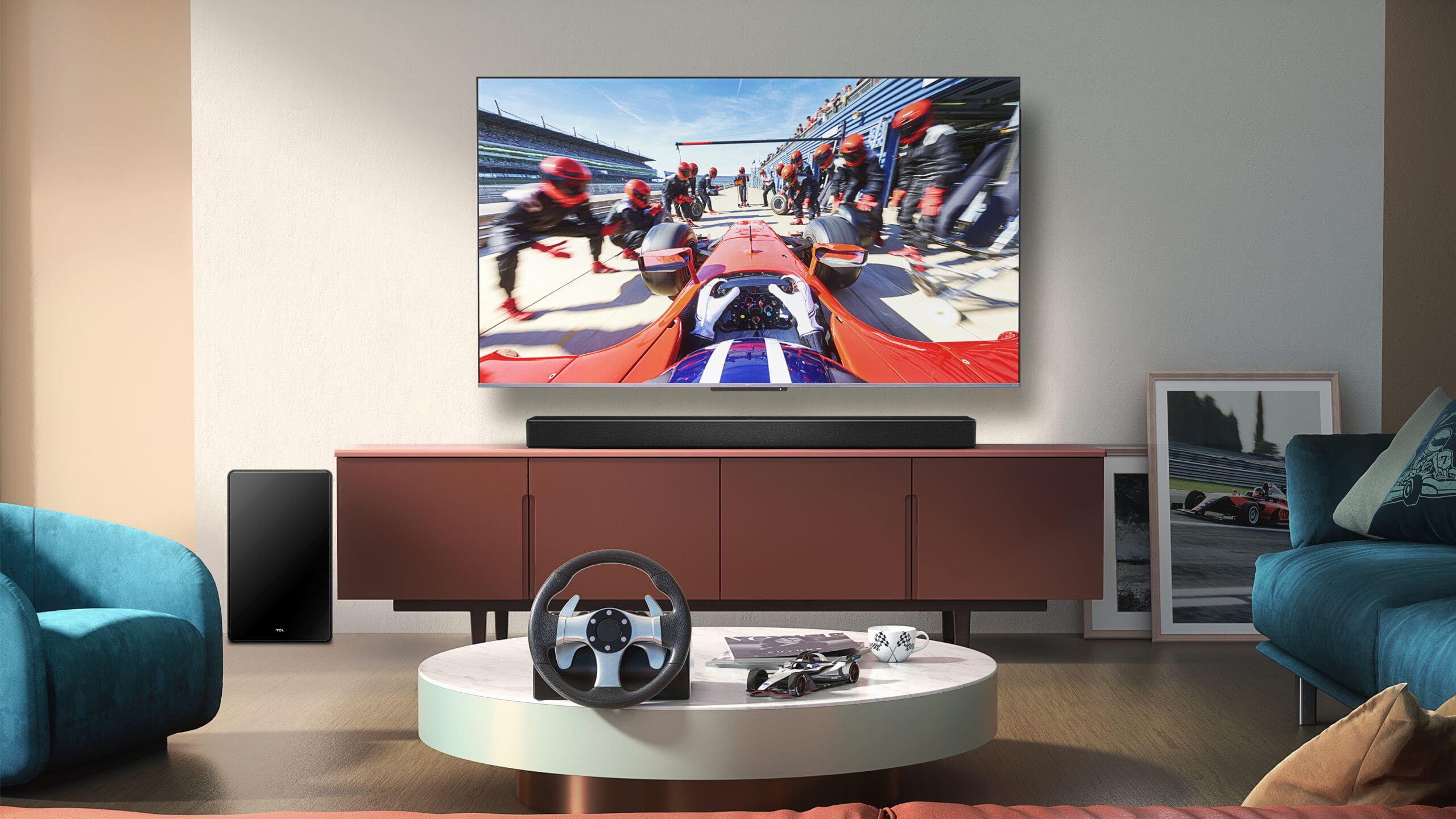

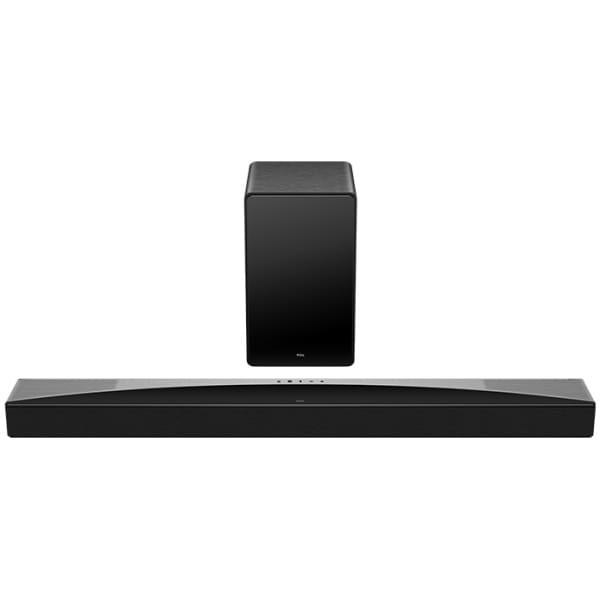

5.1.2 CHANNEL Q CLASS SOUND BAR
Fill your room with sound, bringing the movie theater experience into your home with just a single HDMI cable. It’s home theater, made simple.
DOLBY ATMOS AND DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
UP TO 620 WATTS TOTAL POWER
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.
BLUETOOTH WIRELESS MUSIC STREAMING
Stream your favorite music wirelessly with Bluetooth connectivity that allows you to play your favorite songs from your smartphone, tablet, or other Bluetooth-enabled device.

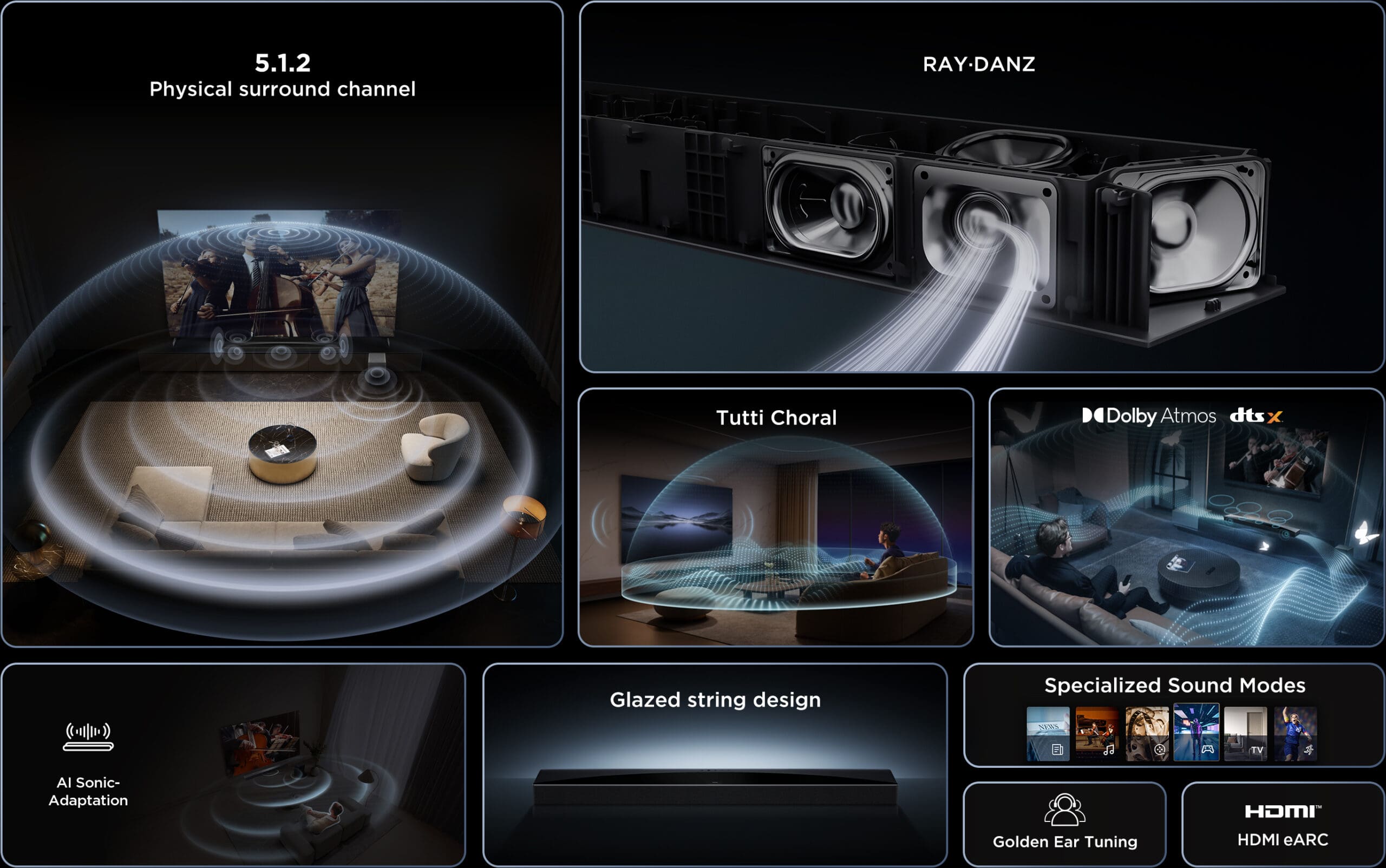

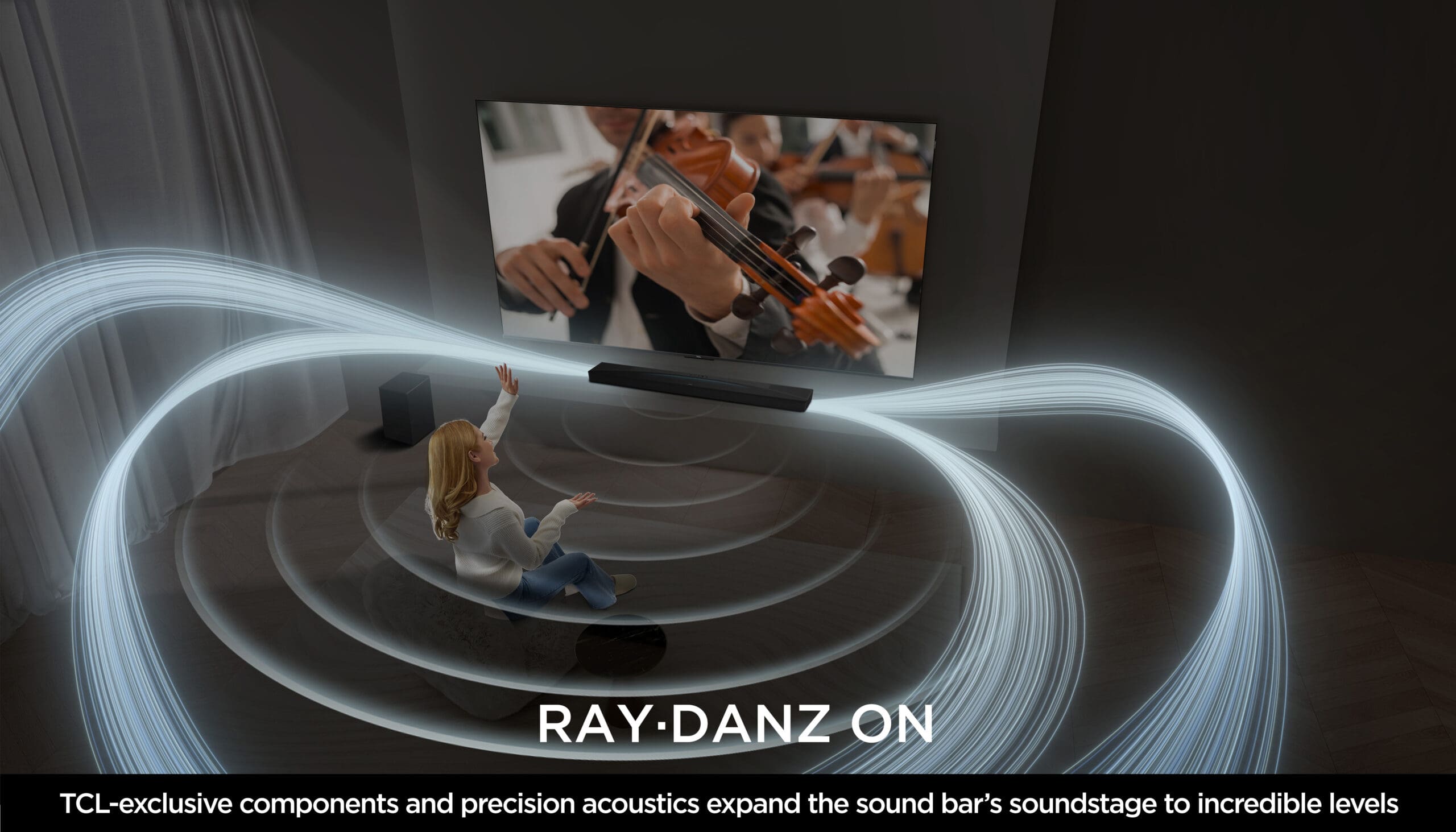

RAY DANZ TECHNOLOGY WITH ACOUSTIC REFLECTORS
Patented technology that dramatically widens the sound stage for an amazing acoustic experience
BUILT-IN TWEETERS
Hear every detail of your favorite movies and music with the built-in tweeters that deliver precise, high-frequency sound to complement the powerful bass.
BUILT-IN CENTER CHANNEL
Enjoy clear dialogue even during action-packed scenes with the built-in center speaker that ensures voices are always heard with crystal-clear clarity.
SOUND BAR WITH UP-FIRING SPEAKERS
Up-Firing Speakers reflect audio off your ceiling to completely immerse you in movies, music, and games.

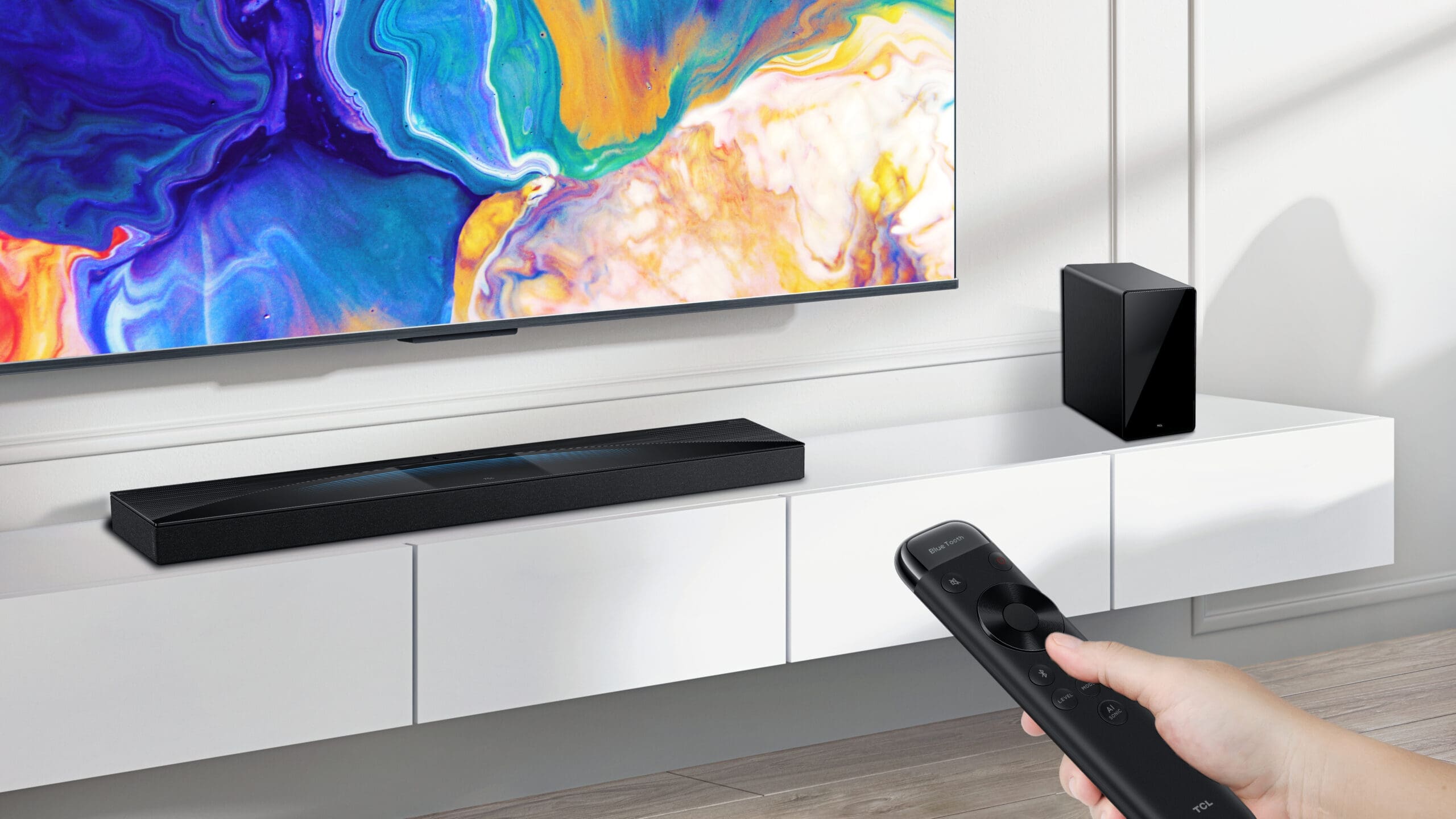

WIRELESS SUBWOOFER WITH 6.5” DRIVER AND BASS BOOST
Feel the bass with the wireless subwoofer featuring a 6.5” driver and Bass Boost technology providing deep, rich tones.

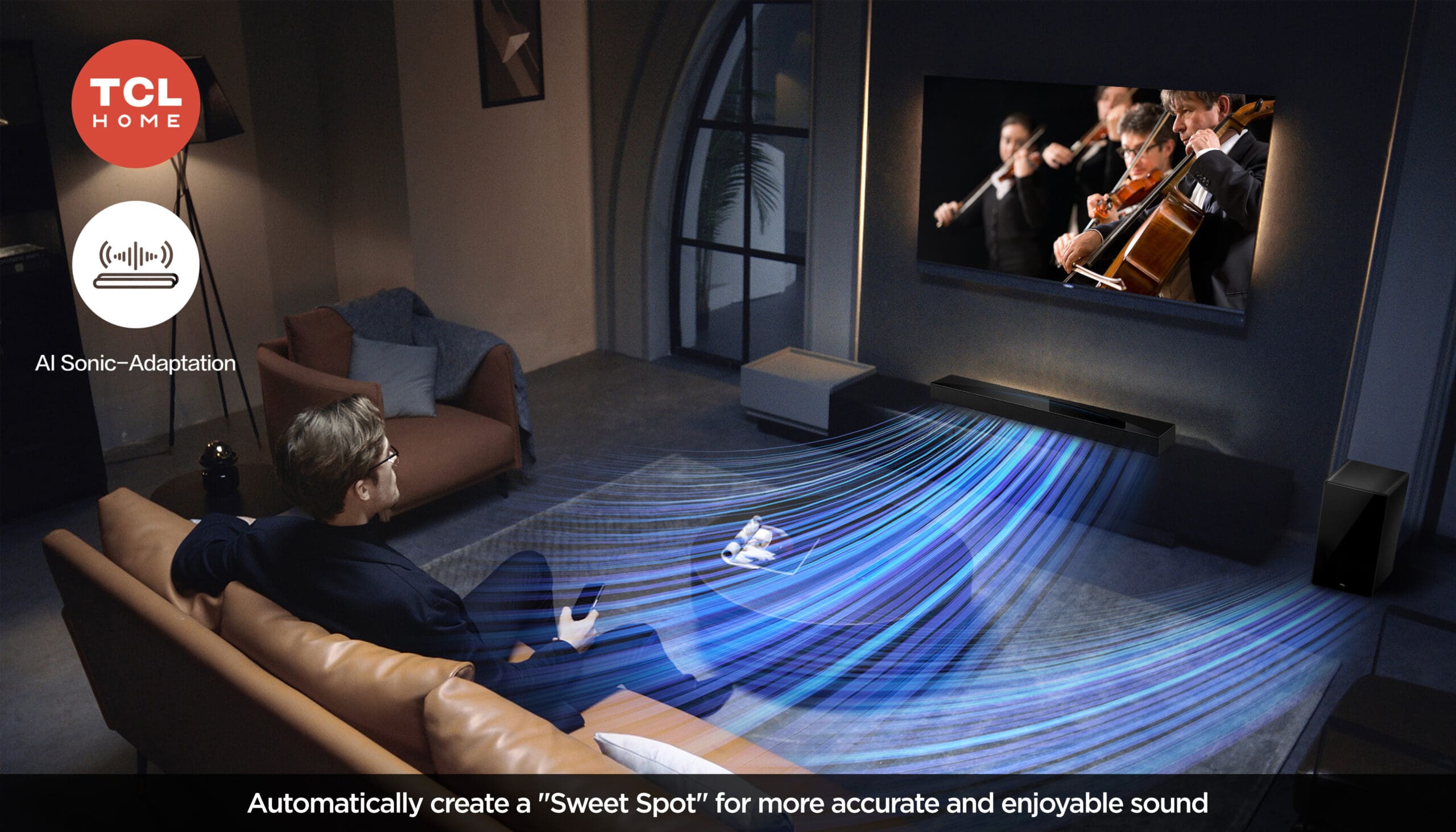

AI SONIC AUTO ROOM CALIBRATION
Get optimal sound quality with Auto Room Calibration powered by AI Sonic that tailors the sound to your unique space.
| Feature |
Feature Value |
| Audio output channels |
5.1.2 channels |
| RMS rated power |
780 W |
| Audio decoders |
DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby MAT, Dolby Surround, Dolby TrueHD |
| Equalizer modes |
Game, Movie, Music, Sport, Standard, Voice |
| Equalizer |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Enhanced Audio Return Channel (eARC) |
Yes |
| Audio sample rate (24bit) |
48 kHz |
| Soundbar speaker RMS power |
30 W |
| Number of speakers |
7 |
| Subwoofer included |
Yes |
| Subwoofer type |
Active subwoofer |
| Subwoofer connectivity |
Wireless |
| Subwoofer RMS power |
180 W |
| Bass adjustment |
Yes |
| Woofer diameter (subwoofer) |
20.3 cm (8″) |
| Product colour |
Titanium |
| Wall mountable |
Yes |
| Colour name |
Dark titanium |
| FM radio |
No |
| Built-in display |
Yes |
| USB direct playback |
Yes |
| Audio formats supported |
AAC, MP3 |

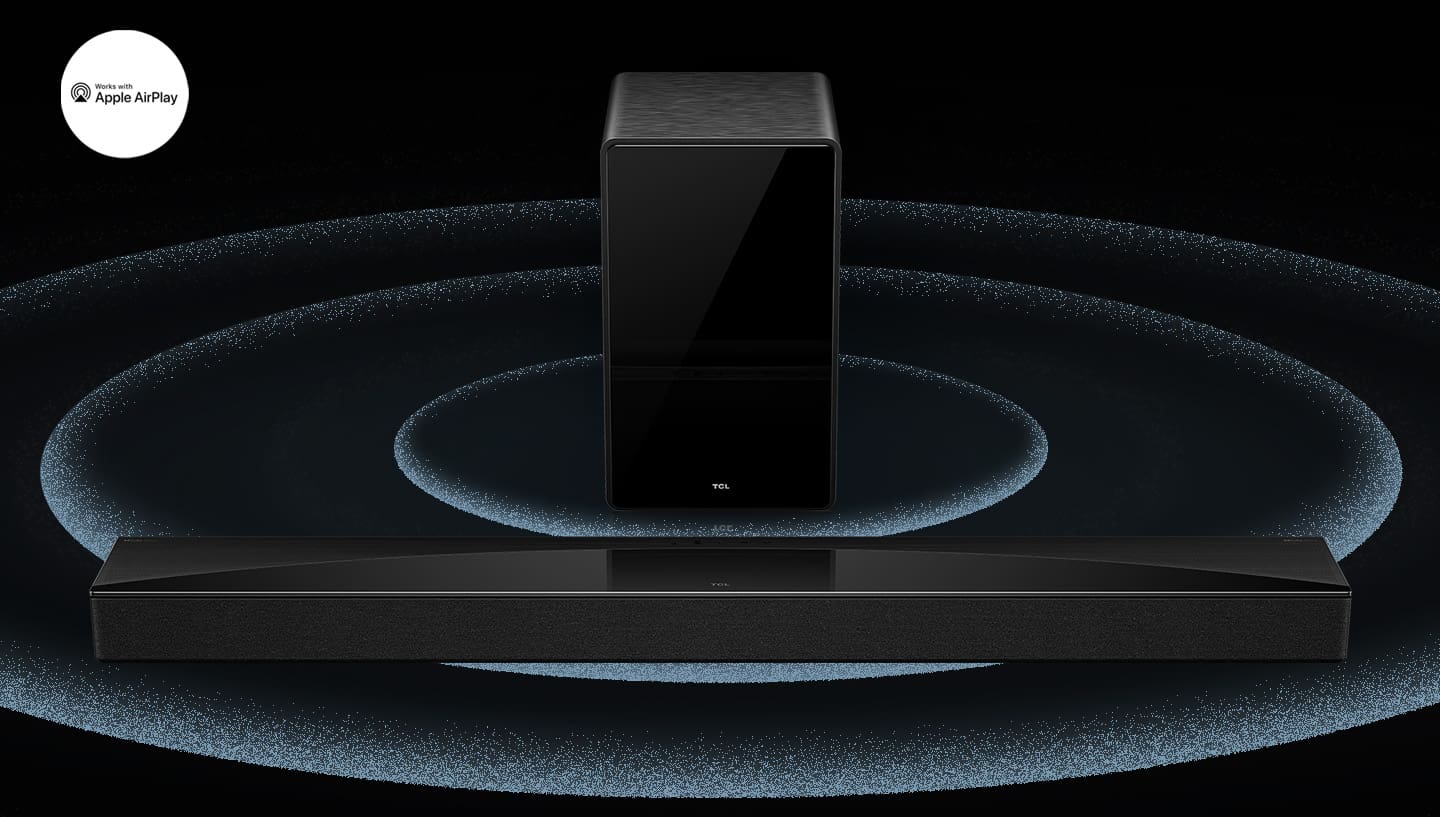

| Apple AirPlay 2 support |
Yes |
| Supported video streaming resolutions |
4096 x 2160 |
| Consumer Electronics Control (CEC) |
T-link |
| Supported radio bands |
Not supported |
| Smartphone/tablet remote support |
Yes |
| Detachable power cord |
Yes |
| 3D |
Yes |
| Video formats supported |
Not supported |
| Warranty period |
2 year(s) |
| Connectivity technology |
Wired & Wireless |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| HDMI ports quantity |
3 |
| Bluetooth version |
5.3 |
| Bluetooth codec |
SBC, AAC |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN |
No |
| HDMI in |
2 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.1 |
| USB port |
Yes |
| Composite video in |
0 |
| Card reader integrated |
No |
| Digital audio coaxial in |
0 |
| Digital audio coaxial out |
0 |
| Compatible memory cards |
Not supported |
| Digital audio optical in |
0 |
| AUX in |
No |
| Digital audio optical out |
1 |
| AC input voltage |
220 – 240 V |
| AC input frequency |
50 Hz |
| Power consumption (typical) |
98 W |
| Power consumption (standby) |
0.5 W |
| Width |
1040 mm |
| Depth |
110 mm |
| Height |
58 mm |
| Soundbar weight |
4.4 kg |
| Subwoofer width |
42 cm |
| Subwoofer depth |
36.5 cm |
| Subwoofer height |
24 cm |
| Subwoofer weight |
7.5 kg |
| Package width |
1195 mm |
| Package depth |
280 mm |
| Package height |
540 mm |
| Package weight |
15.1 kg |
| Wall mounting kit |
Yes |
| Cables included |
AC, HDMI |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Quantity per truck |
24 pc(s) |
| Optical disc player type |
Not included |
| Digital Living Network Alliance (DLNA) certified |
No |
