Description
A new class of bright projection

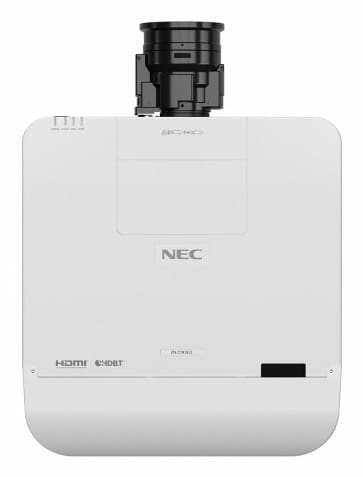

Now even larger spaces can benefit from Sharp/NEC’s innovation in silent technology with the 17,000 center lumens PA1705UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress – no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Sharp/NEC customers can easily make the transition to benefit from the latest laser technology. The PA1705UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
| Feature |
Feature Value |
| Projector brightness |
16000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920×1200) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1524 – 12700 mm (60 – 500″) |
| Projection distance |
0.68 – 80.77 m |
| Keystone correction, horizontal |
+/- 40° |
| Keystone correction, vertical |
+/- 30° |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Focus |
Motorized |
| Zoom capability |
Yes |
| Horizontal lens shift range |
-25 – 25% |
| Vertical lens shift range |
-65 – 65% |
| 3D |
Yes |
| Supported graphics resolutions |
640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes |
720p, 1080i, 1080p |
| Video colour modes |
DICOM simulation mode |
| HDMI ports quantity |
2 |
| Serial interface type |
RJ-45, RS-232 |
| HDBaseT port |
Yes |
| USB 2.0 ports quantity |
1 |
| Headphone outputs |
1 |
| PC in (D-Sub) |
Yes |
| 3G-SDI input |
1 |
| AC (power) in |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Noise level |
43 dB |
| Noise level (economic mode) |
37 dB |
| HDCP |
Yes |
| Certification |
CE; EAC; ErP; RoHS; TUEV Type Approved |
| Market positioning |
Education |
| Product colour |
White |
| Built-in display |
No |
| Power source |
AC |
| Power consumption (typical) |
995 W |
| Power consumption (standby) |
2 W |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-10 – 50 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage relative humidity (H-H) |
20 – 80% |
| Weight |
28.7 kg |
| Width |
599 mm |
| Depth |
490 mm |
| Height |
238 mm |
| Remote control included |
Yes |
| Remote control type |
IR |
| Cables included |
AC |
| Manual |
Yes |
