ATEN Control System – Compact Control Box Gen. 2 with Dual LAN

Part No:
VK1200
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 2 left.

Control Box w 2 License Gen2 w Dual LAN

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VK1200 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly

Description

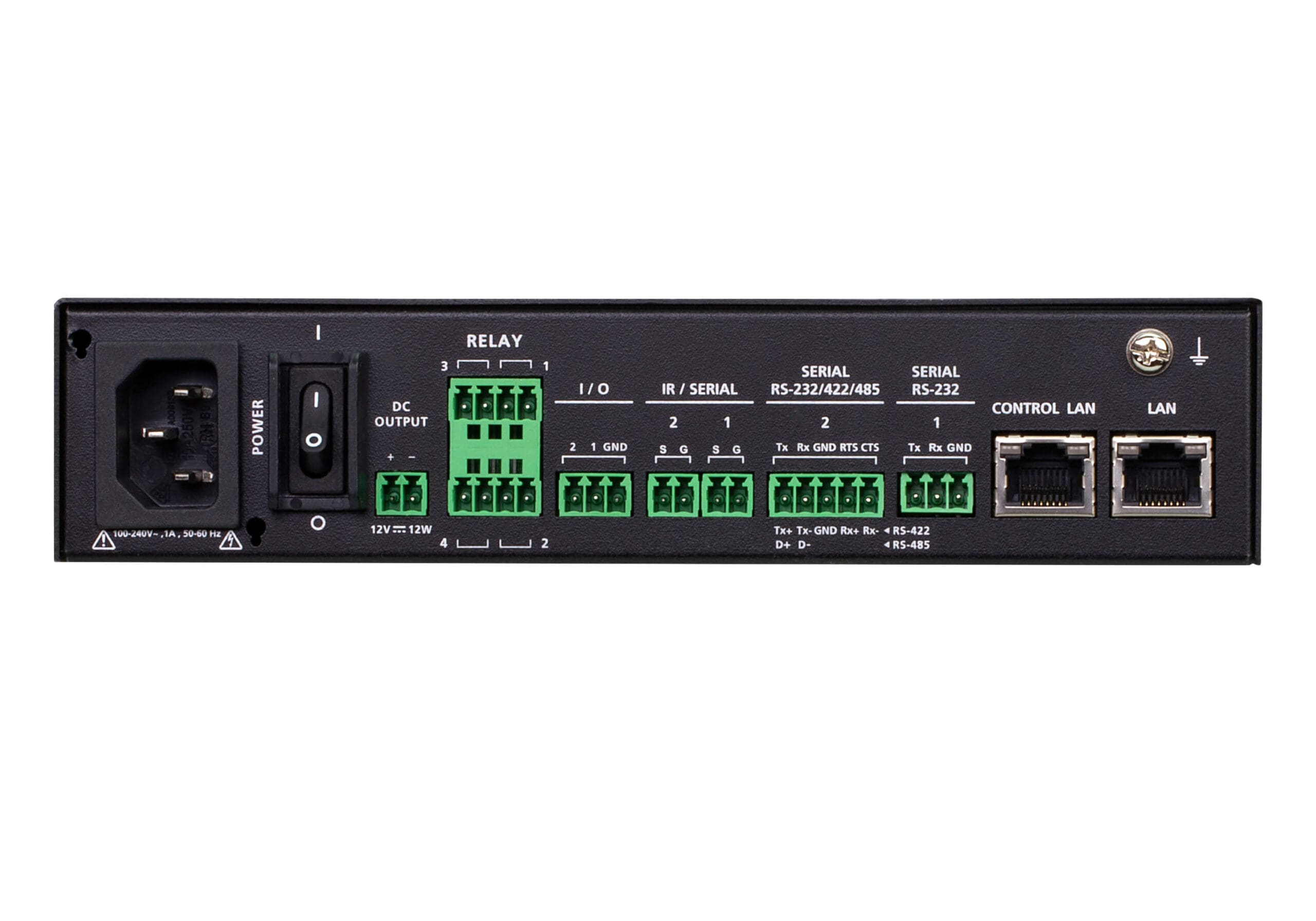

VK1200, ATEN’s second-generation Control Box, boasts the highest performance processor within the series. Equipped with a quad-core CPU and 2 GB / 1 GB memory, VK1200 provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. VK1200 features dual, isolated LAN ports – Control LAN and LAN. The Control LAN allows managed devices to be securely protected within a separate network, independent from the corporate network, for fulfilling high-security and stability demand. On the other hand, the LAN can be connected to ATEN Unizon, a centralized platform streamlining daily AV / IT management, which provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

The VK1200 Control Box can be used to easily manage any room setting, and can be deployed into an existing installation by seamless integration with ATEN VanCryst ProAV products, as well as nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK1200 is the perfect solution for managing mass device deployments especially in strict security settings with high performance requirements, such as government agencies, military facilities, corporate organizations, and healthcare institutions.

VK1200 is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defined GUIs from any mobile device, ATEN Keypad and Touch Panel.


Feature Feature Value
Built-in display Yes
Processor cores 4
Product colour Black
On/off switch Yes
LED indicators Yes
Reset button Yes
Display type LCD
Display diagonal 4.06 cm (1.6″)
Display resolution 128 x 64 pixels
Heat dissipation 81 BTU/h
Number of relay pins 8
Internal memory 1 GB
Internal storage capacity 8 GB
Storage media type Flash
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Supported network protocols ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
USB port Yes
USB ports quantity 1
USB port type USB Type-A
RS-232 ports 2
RS-422 ports 1
RS-485 ports 1
Number of analog I/O pins 3
IR connectivity Yes
DC-in jack Yes
Serial interface type RS-232, RS-232/422/485
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Power consumption (max) 4.7 W
Power consumption (typical) 4.5 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Country of origin Taiwan
Products per master (outer) case 3 pc(s)
Master (outer) case gross weight 6.73 kg
Master (outer) case width 370 mm
Master (outer) case length 427 mm
Master (outer) case height 232 mm
Master (outer) case net weight 4.88 kg
Terminal block included Yes
License quantity 2 license(s)
Manual Yes
Power cord included Yes
Package volume 9910.9 cm³
Master (outer) case volume 36528.73 cm³
Width 164.1 mm
Depth 200 mm
Height 44 mm
Weight 1.23 kg
Package width 207 mm
Package depth 414 mm
Package height 117 mm
Package weight 2.08 kg

Additional information

Built-in display

Yes

Product colour

Black

LED indicators

Yes

Display type

LCD

Display resolution

128 x 64 pixels

Number of relay pins

8

Internal storage capacity

8 GB

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Cabling technology

10/100/1000Base-T(X)

USB port

Yes

USB port type

USB Type-A

RS-422 ports

1

Number of analog I/O pins

3

DC-in jack

Yes

Operating temperature (T-T)

0 – 50 °C

Power consumption (typical)

4.5 W

AC input frequency

50/60 Hz

Master (outer) case width

370 mm

Master (outer) case height

232 mm

Terminal block included

Yes

Manual

Yes

Package volume

9910.9 cm³

Width

164.1 mm

Height

44 mm

Package width

207 mm

Package height

117 mm

Processor cores

4

On/off switch

Yes

Reset button

Yes

Display diagonal

4.06 cm (1.6")

Heat dissipation

81 BTU/h

Internal memory

1 GB

Storage media type

Flash

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

10,100,1000 Mbit/s

Supported network protocols

ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

USB ports quantity

1

RS-232 ports

2

RS-485 ports

1

IR connectivity

Yes

Serial interface type

RS-232, RS-232/422/485

Storage temperature (T-T)

-20 – 60 °C

Power consumption (max)

4.7 W

AC input voltage

100 – 240 V

Country of origin

Taiwan

Master (outer) case length

427 mm

License quantity

2 license(s)

Power cord included

Yes

Master (outer) case volume

36528.73 cm³

Depth

200 mm

Weight

1.23 kg

Package depth

414 mm

Package weight

2.08 kg

Brand

Aten
