ATEN 4K HDMI HDBaseT Receiver with Scaler

Part No:

VE816R

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE816R-AT-E HDBaseT Reciever & Scaler

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE816R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

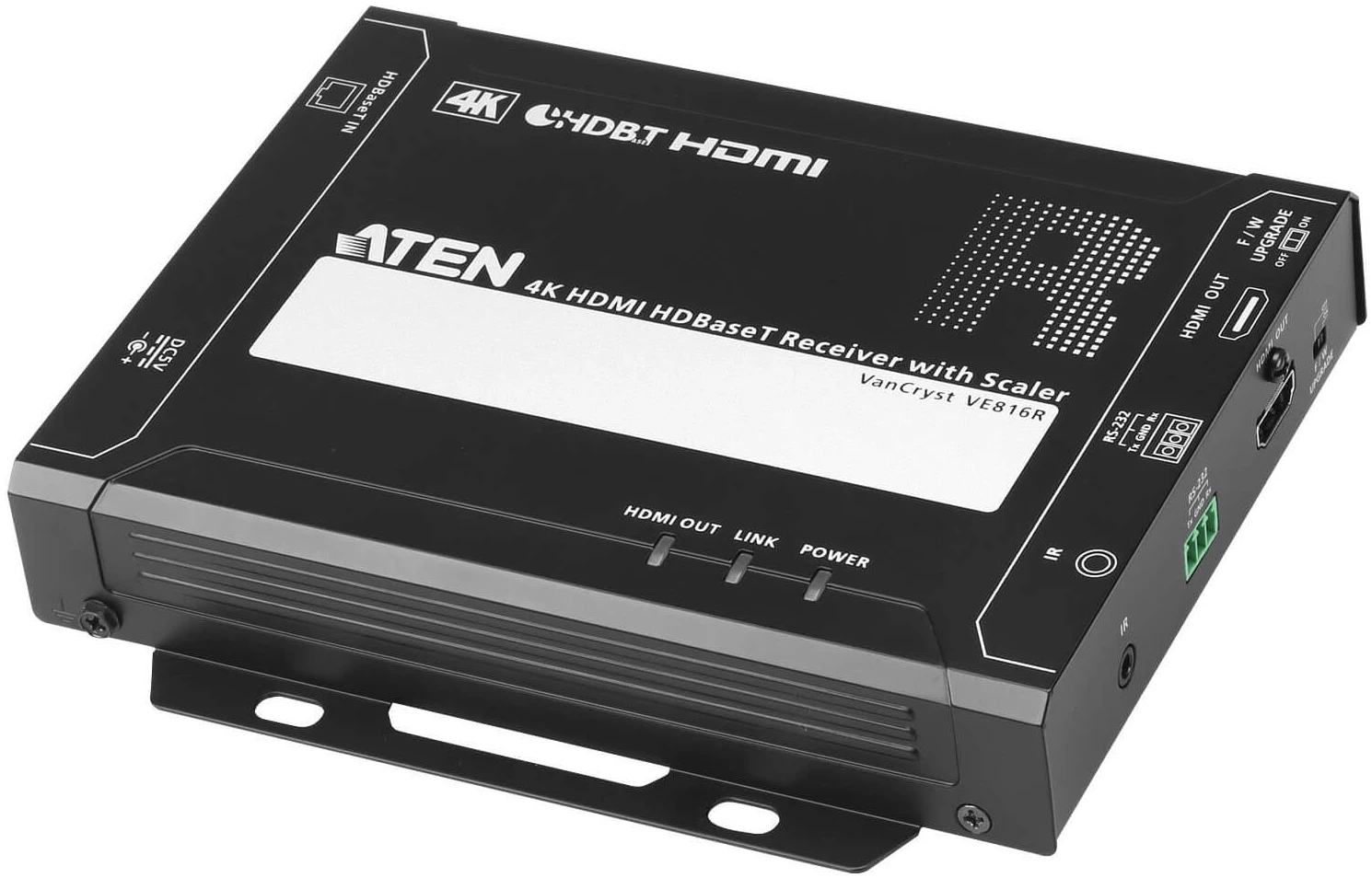

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.
1x VE816R 4K HDMI HDBaseT Receiver with Scaler
1x 2XRT-0004G IR Transmitter
1x 2XRT-003G-1 IR Receiver
1x Terminal Block
1x 0AD6-1005-26EG Power Adapter
1x User Instructions

Feature Feature Value
Type AV receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 100 m
Maximum refresh rate 60 Hz
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
Bandwidth 340 MHz
HDCP Yes
Material Metal
3D Yes
Rack mounting Yes
Firmware upgradeable Yes
Plug and Play Yes
Impedance 100 Ω
HDCP version 2.2
Product colour Black
HDBaseT certified Yes
Connectivity technology Wired
RJ-45 input ports 1
HDBaseT port Yes
Number of HDMI outputs 1
DC-in jack Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Width 166 mm
Depth 124.9 mm
Height 29 mm
Weight 870 g
Quantity per pack 1 pc(s)
Package width 62 mm
Package depth 283 mm
Package height 173 mm
Package weight 1 kg
AC adapter included Yes
Manual Yes
Master (outer) case width 300 mm
Master (outer) case length 336 mm
Master (outer) case height 194 mm
Master (outer) case gross weight 5.2 kg
Master (outer) case net weight 4.35 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV receiver
Cable types supported

Cat5e, Cat6, Cat6a
Maximum refresh rate

60 Hz
HDCP

Yes
3D

Yes
Firmware upgradeable

Yes
Impedance

100 Ω
Product colour

Black
Connectivity technology

Wired
HDBaseT port

Yes
DC-in jack

Yes
Storage temperature (T-T)

-20 – 60 °C
Depth

124.9 mm
Weight

870 g
Package width

62 mm
Package height

173 mm
AC adapter included

Yes
Master (outer) case width

300 mm
Master (outer) case height

194 mm
Maximum resolution

4096 x 2160 pixels
Maximum transfer distance

100 m
Bandwidth

10.2 Gbit/s, 340 MHz
Material

Metal
Rack mounting

Yes
Plug and Play

Yes
HDCP version

2.2
HDBaseT certified

Yes
RJ-45 input ports

1
Number of HDMI outputs

1
Operating temperature (T-T)

0 – 40 °C
Width

166 mm
Height

29 mm
Quantity per pack

1 pc(s)
Package depth

283 mm
Package weight

1 kg
Manual

Yes
Master (outer) case length

336 mm

Brand

Aten
