ATEN 4K HDMI Over IP Transmitter
Part No:
VE8950T
Price Locked for 30 Days:
Lock Added: N/A
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 11 left.
VE8950T-AT-E 4K HDMI over IP Transmitter
Non-Returnable*
Related products
Description

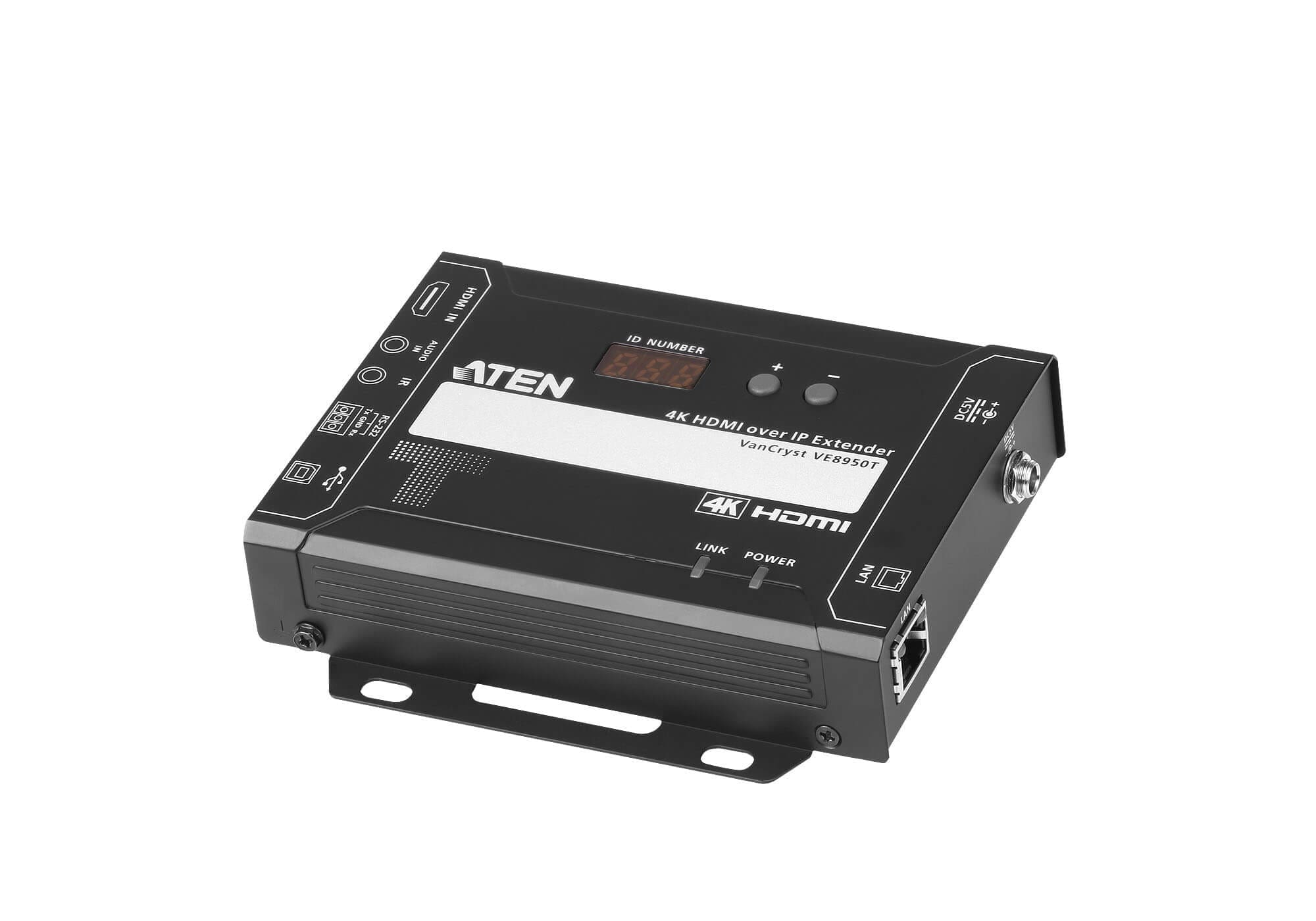

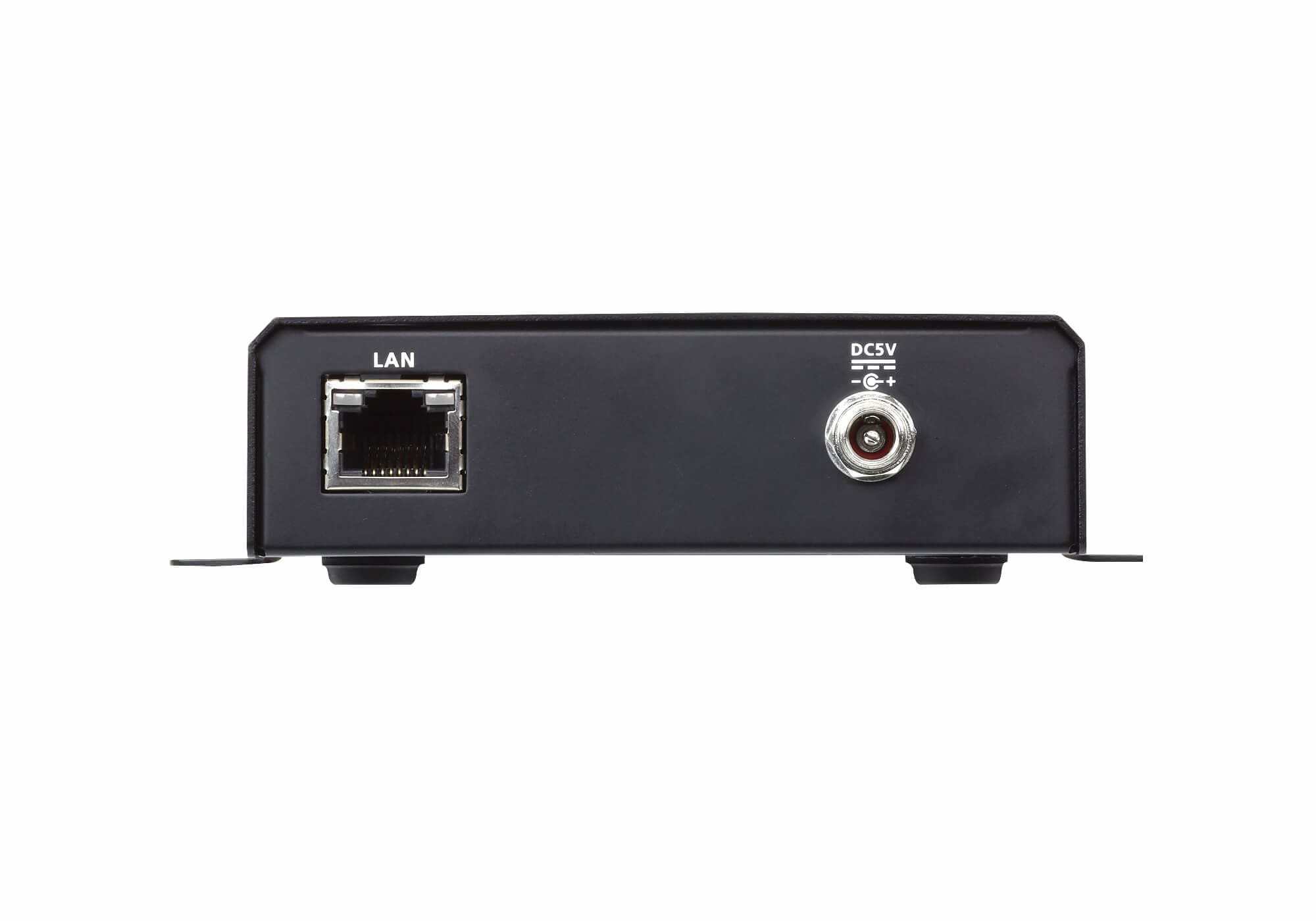

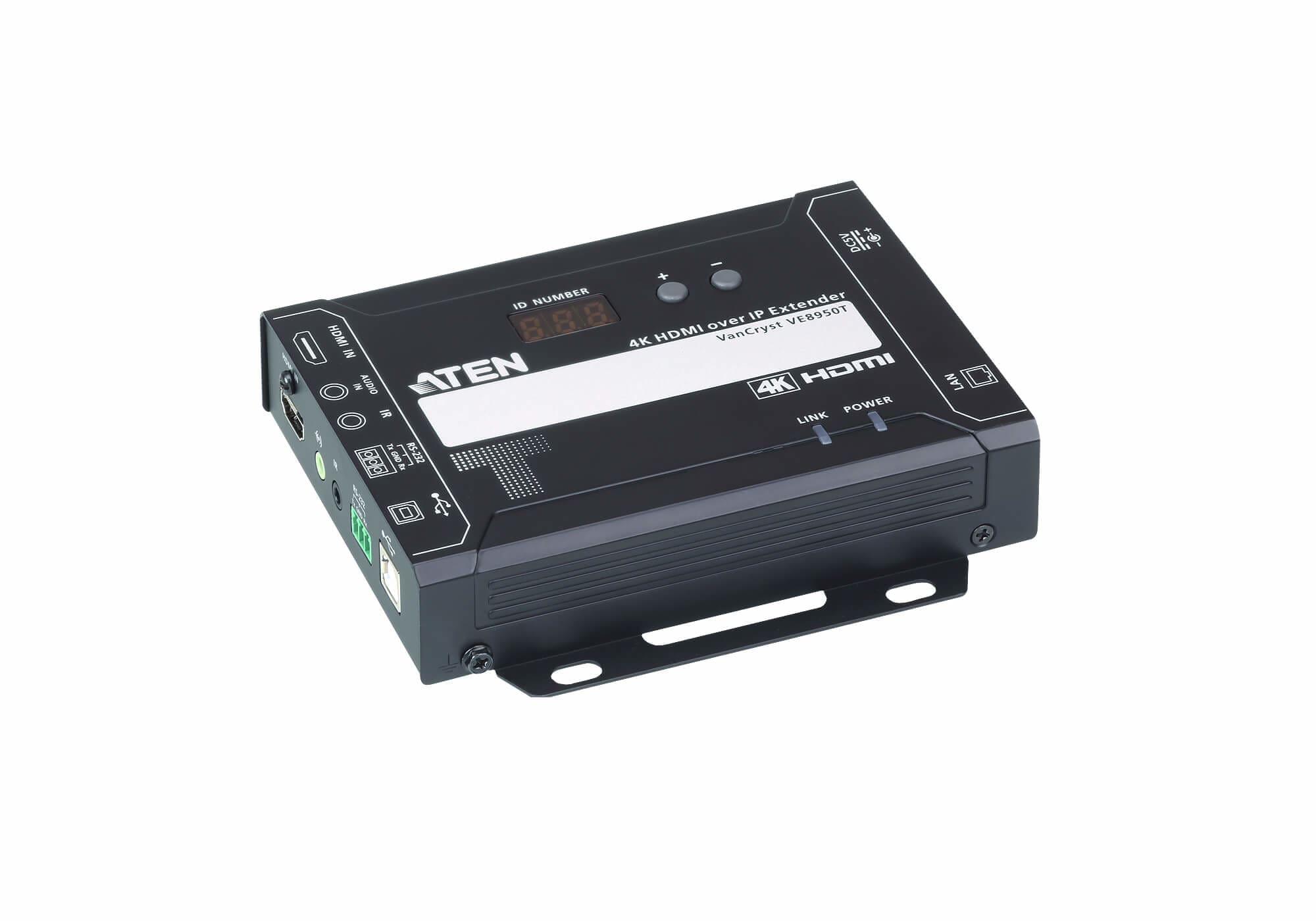

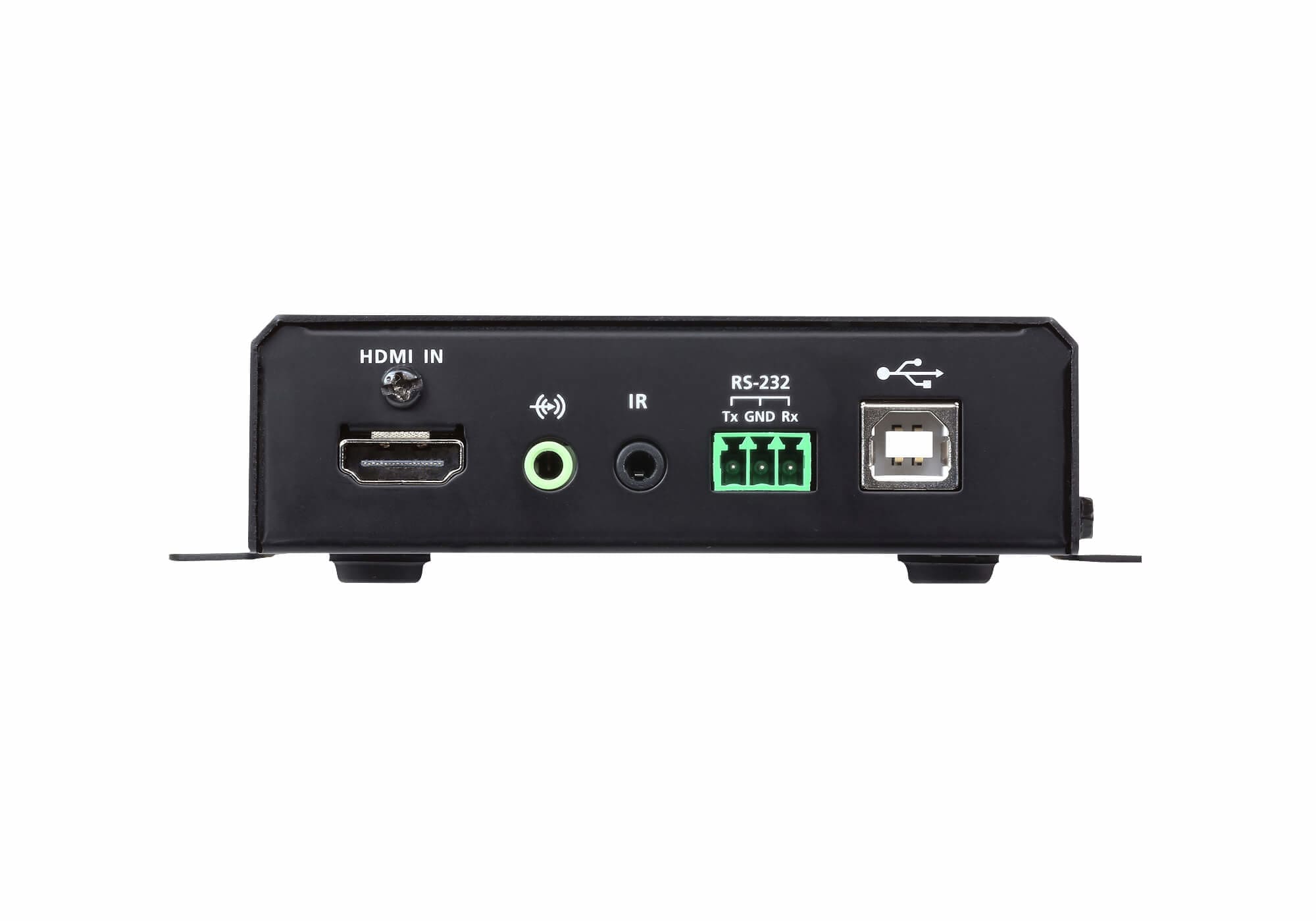

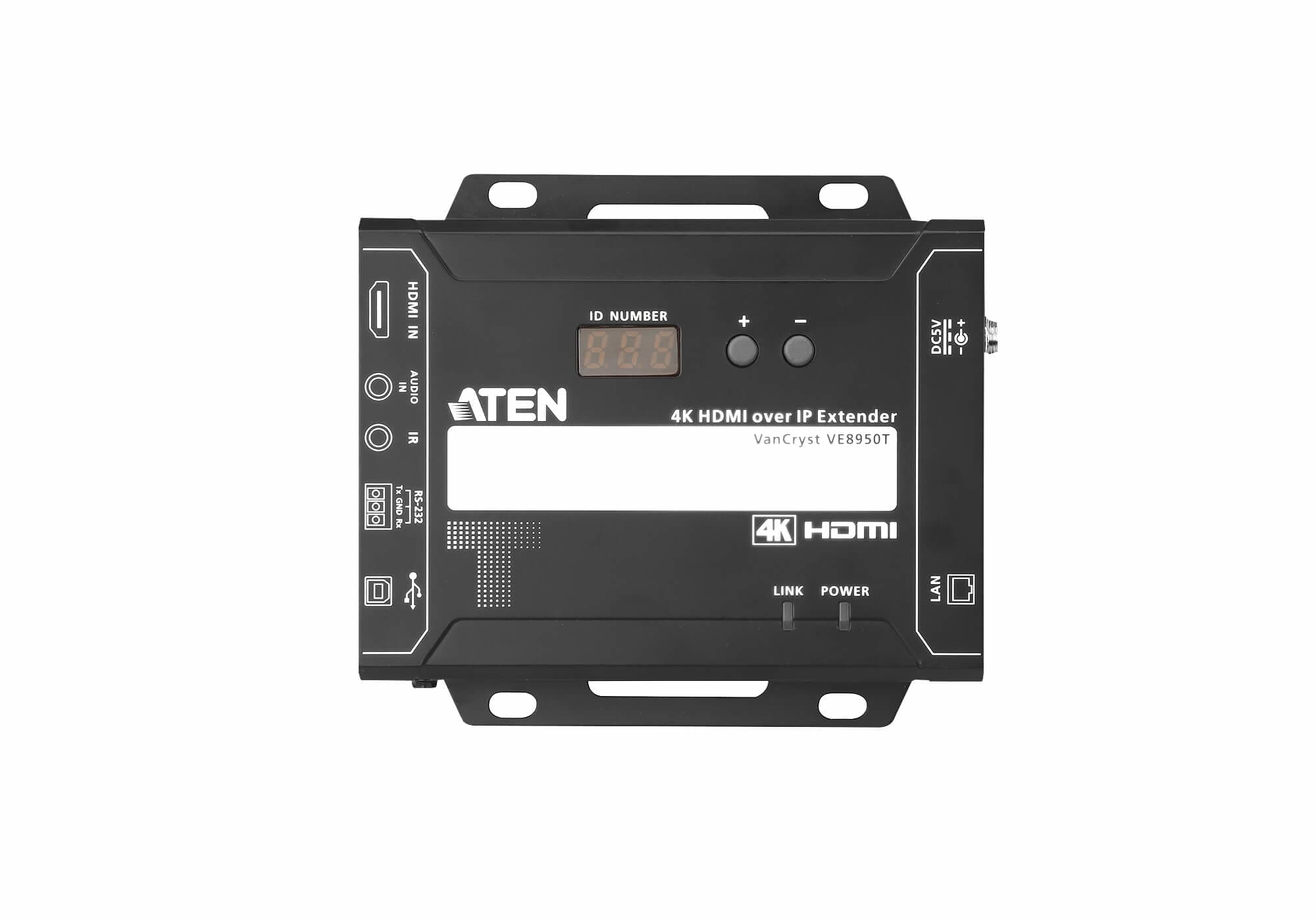

The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
1x VE8950T 4K HDMI over IP Transmitter
1x RS-232 Terminal block
1x 0AD8-1F05-30M1 Power adapter
1x User instructions
| Feature | Feature Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Material | Metal |
| Control type | Buttons |
| Baud rate | 19.2 Kbit/s |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Audio input | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating voltage (transmitter) | 5 V |
| Power consumption (TX) | 3.08 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage relative humidity (H-H) | 0 – 80% |
| Width | 136 mm |
| Depth | 101 mm |
| Height | 29.6 mm |
| Weight | 600 g |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 790 g |
| AC adapter included | Yes |
| Manual | Yes |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.23 kg |
| Master (outer) case net weight | 3 kg |
| Products per master (outer) case | 5 pc(s) |
Additional information
| Type | AV transmitter |
|---|---|
| Cable types supported | Cat5e, Cat6 |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
| Material | Metal |
| Baud rate | 19.2 Kbit/s |
| Daisy chain | Yes |
| Connectivity technology | Wired |
| HDMI in | 1 |
| USB version | 2.0 |
| Audio input | 1 |
| DC-in jack | Yes |
| Power consumption (TX) | 3.08 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 136 mm |
| Height | 29.6 mm |
| Quantity per pack | 1 pc(s) |
| Package depth | 239 mm |
| Package weight | 790 g |
| Manual | Yes |
| Master (outer) case length | 325 mm |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Supported video modes | 1080p |
| HDCP | Yes |
| Control type | Buttons |
| Impedance | 100 Ω |
| Product colour | Black |
| RJ-45 output ports | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| Remote (IR) input | 1 |
| External power adapter | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Depth | 101 mm |
| Weight | 600 g |
| Package width | 59 mm |
| Package height | 160 mm |
| AC adapter included | Yes |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
