ATEN 4K HDMI over IP Transmitter with PoE
Lock Added: N/A
This item is currently unavailable for next day delivery, however you may still order this item as a back-order?
4K HDMI Over IP Transmitter with POE
Related products
Description

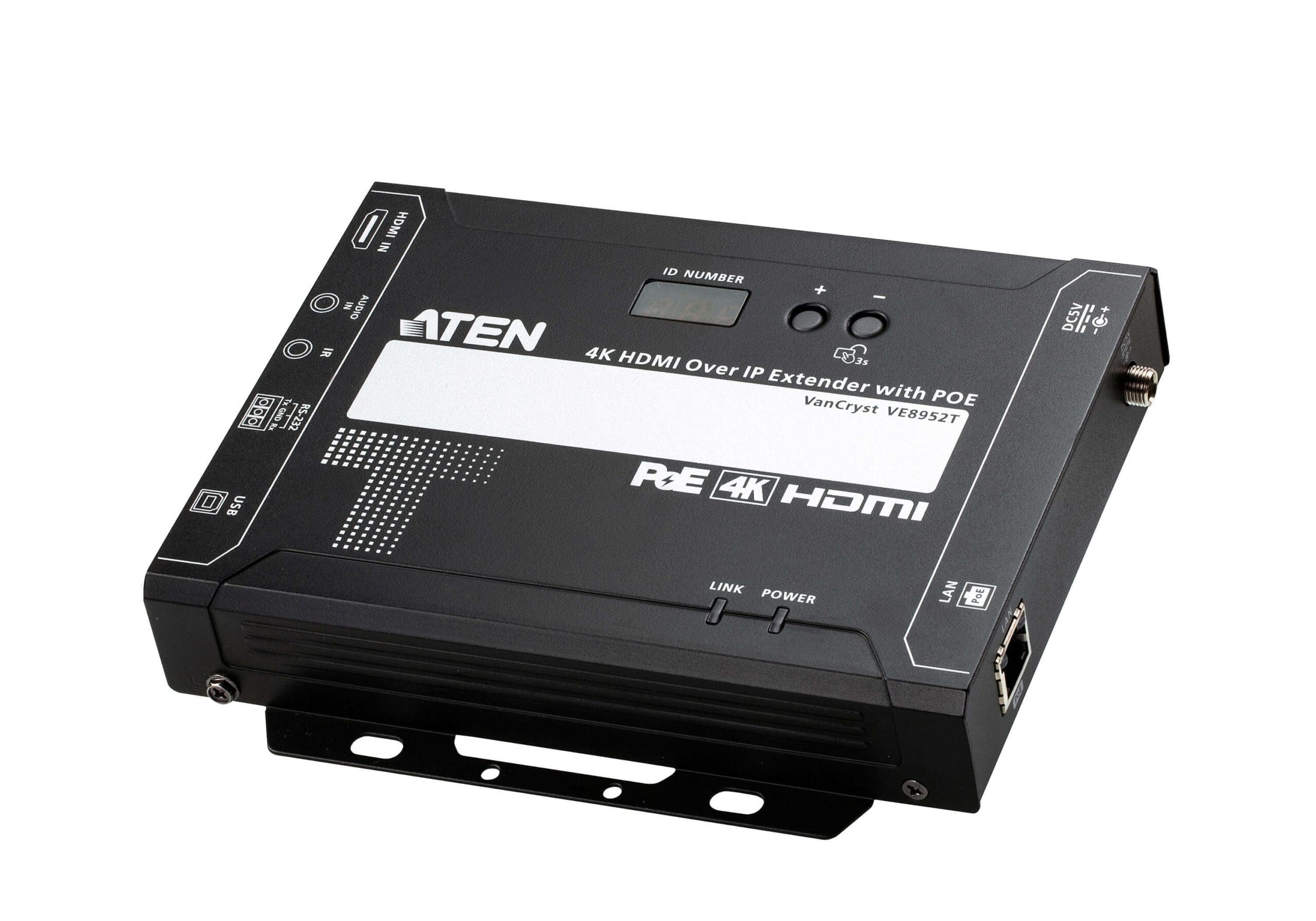

The ATEN VE8952T 4K HDMI over IP Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.
No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.
No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation.
Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.
Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets.
Flexible Control with Mobile App
Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : http://assets.aten.com/product/manual/VE89_Implementation_Guide.pdf
1x VE8952T 4K HDMI over IP Transmitter with PoE
1x JCNT-3301-103G RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x 0X02-0025-002G Foot Pads
1x User Instructions
| Feature | Feature Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Front panel control (TX) | Yes |
| Extended display identification data (EDID) | Yes |
| LED indicators | Yes |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| RS-232 input ports | 1 |
| Audio input | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating voltage | 5 V |
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage relative humidity (H-H) | 0 – 80% |
| Width | 166 mm |
| Depth | 124.9 mm |
| Height | 29 mm |
| Weight | 720 g |
| Quantity per pack | 1 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 965 g |
| AC adapter included | Yes |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.25 kg |
| Master (outer) case net weight | 3.6 kg |
| Products per master (outer) case | 5 pc(s) |
Additional information
| Type | AV transmitter |
|---|---|
| Maximum transfer distance | 100 m |
| Front panel control (TX) | Yes |
| LED indicators | Yes |
| Material | Metal |
| Daisy chain | Yes |
| Connectivity technology | Wired |
| HDMI in | 1 |
| USB connector type | USB Type-B |
| Audio input | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 166 mm |
| Height | 29 mm |
| Quantity per pack | 1 pc(s) |
| Package depth | 283 mm |
| Package weight | 965 g |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 194 mm |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| RJ-45 output ports | 1 |
| USB ports quantity | 1 |
| RS-232 input ports | 1 |
| Serial ports quantity | 1 |
| Remote (IR) input | 1 |
| Operating voltage | 5 V |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Depth | 124.9 mm |
| Weight | 720 g |
| Package width | 62 mm |
| Package height | 173 mm |
| AC adapter included | Yes |
| Master (outer) case length | 336 mm |
