ATEN 4Port USB 2.0 Cat 5 Extender(UP TO 100M)

Part No:

UEH4002A

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

USB 2.0 4 port Extender for 100M

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: UEH4002A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The UEH4002A 4-port USB 2.0 CAT 5 Extender incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard 5 meter cable limit for USB peripheral devices.

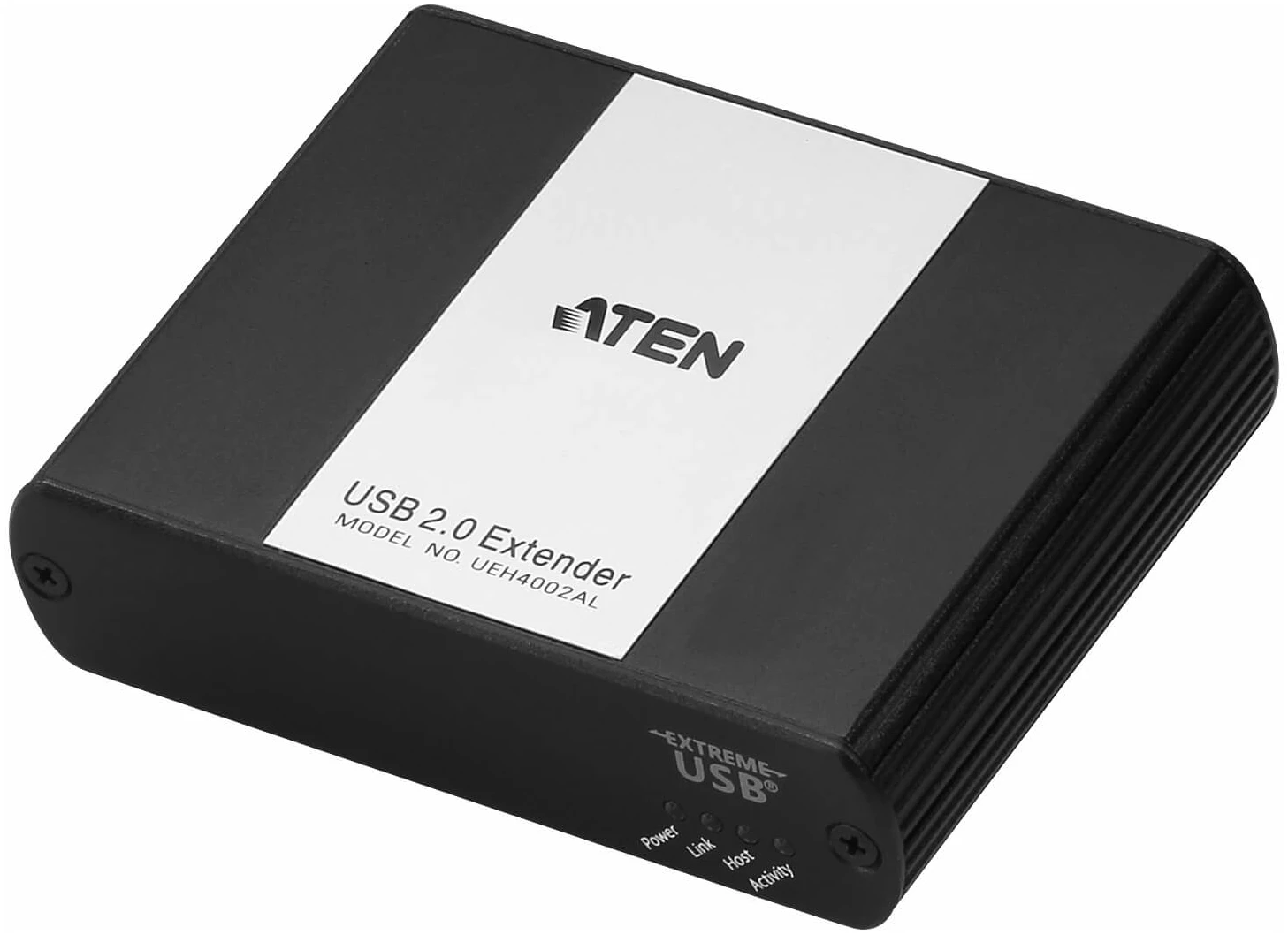

1x UEH4002AL 4-Port Cat 5 USB 2.0 Extender (Local unit)

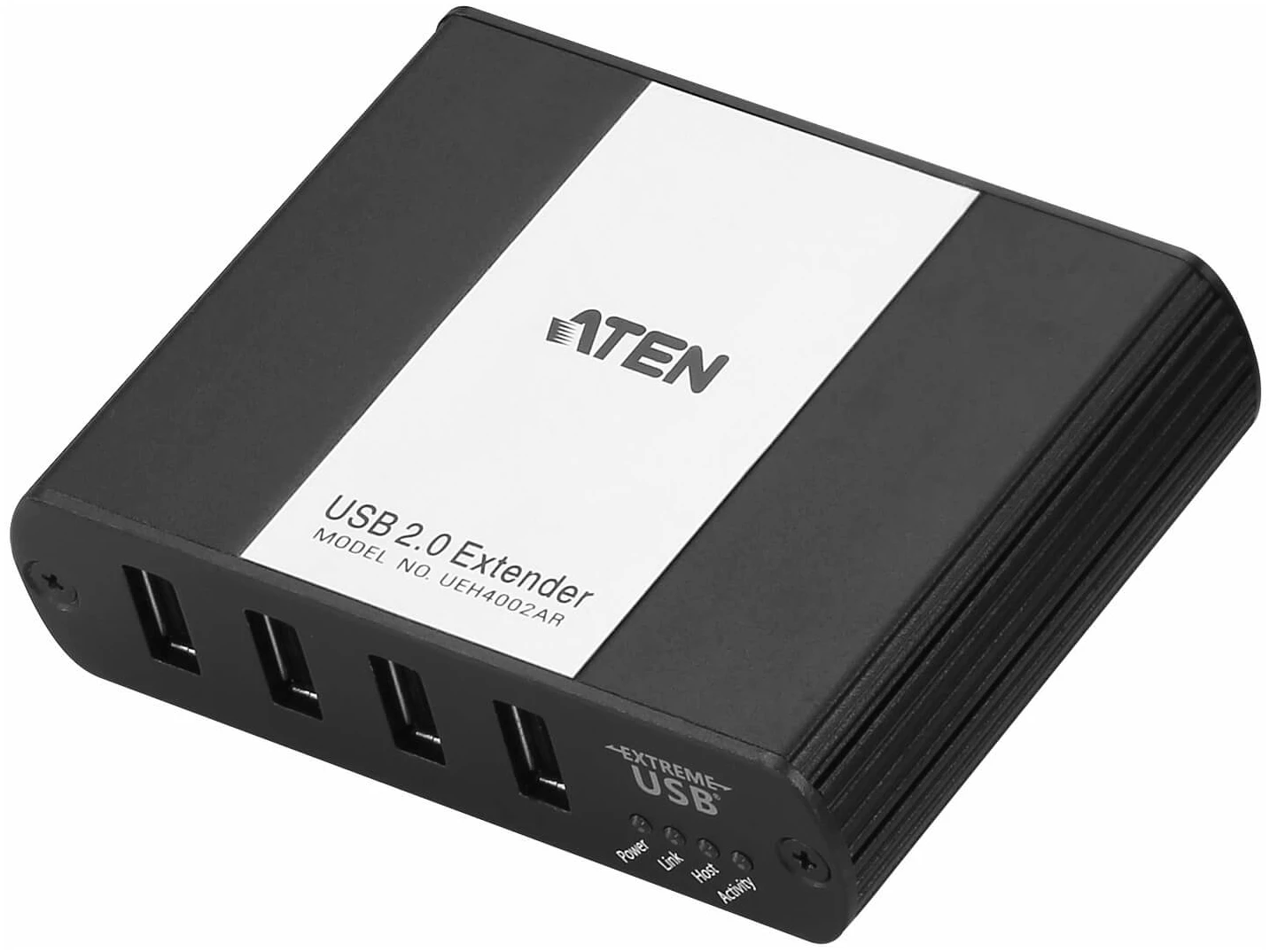

1x UEH4002AR 4-Port Cat 5 USB 2.0 Extender (Remote unit)
1x 0AD9-1B05-30EG AC Power Adapter
1x LIN6-04U1-V1BG USB 2.0 Type-A to Type-B Cable (1.8m)
1x User Instructions

Feature Feature Value
Type AV transmitter & receiver
Cable types supported Cat5e
Maximum transfer distance 100 m
LED indicators Yes
Plug and Play Yes
Product colour Black, White
Windows operating systems supported Yes
Mac operating systems supported Yes
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
USB ports quantity 5
USB version 2.0
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 70 °C
Operating relative humidity (H-H) 0 – 80%
Weight 630 g
Receiver dimensions (WxDxH) 100 x 76 x 26 mm
Receiver weight 190 g
Transmitter dimensions (WxDxH) 100 x 76 x 26 mm
Transmitter weight 190 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 680 g
AC adapter included Yes
Cables included USB
Quick start guide Yes
Sustainability certificates RoHS
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 3.77 kg
Master (outer) case net weight 3.15 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV transmitter & receiver
Maximum transfer distance

100 m
Plug and Play

Yes
Connectivity technology

Wired
RJ-45 output ports

1
USB version

2.0
Storage temperature (T-T)

-20 – 70 °C
Weight

630 g
Receiver weight

190 g
Transmitter weight

190 g
Package depth

239 mm
Package weight

680 g
Cables included

USB
Sustainability certificates

RoHS
Master (outer) case length

325 mm
Cable types supported

Cat5e
LED indicators

Yes
Product colour

Black, White
RJ-45 input ports

1
USB ports quantity

5
Operating temperature (T-T)

0 – 50 °C
Receiver dimensions (WxDxH)

100 x 76 x 26 mm
Package width

59 mm
Package height

160 mm
AC adapter included

Yes
Quick start guide

Yes
Master (outer) case width

250 mm
Master (outer) case height

175 mm

Brand

Aten
