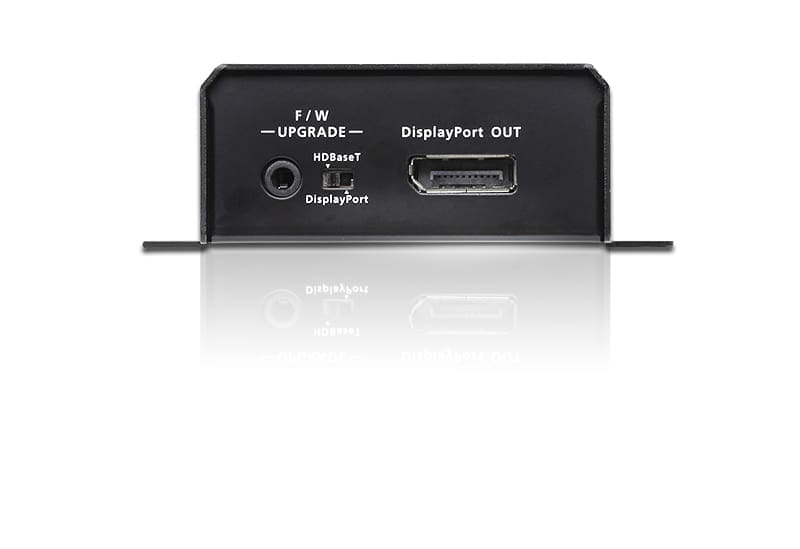

ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m

Part No:

VE901

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE901 HDBT Lite Extend over 1xCat5

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE901 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseTâ„¢ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions

Feature Feature Value
Type AV transmitter & receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 70 m
LED indicators Yes
Supported video modes 1080p
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
Bandwidth 297 MHz
HDCP Yes
Material Metal
Rack mounting Yes
Plug and Play Yes
Impedance 100 Ω
HDCP version 1.4
Product colour Black
HDBaseT certified Yes
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
HDBaseT port Yes
DisplayPorts in 1
DisplayPorts out 1
DC-in jack Yes
Operating voltage (transmitter) 5 V
Operating voltage (receiver) 5 V
Power consumption (TX) 2.84 W
Power consumption (RX) 5.72 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Weight 750 g
Receiver dimensions (WxDxH) 94.2 x 66 x 29 mm
Receiver weight 270 g
Transmitter dimensions (WxDxH) 94.2 x 66 x 29 mm
Transmitter weight 240 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 855 g
AC adapter included Yes
Manual Yes
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 4.85 kg
Master (outer) case net weight 3.75 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV transmitter & receiver
Cable types supported

Cat5e, Cat6, Cat6a
LED indicators

Yes
Bandwidth

10.2 Gbit/s, 297 MHz
Material

Metal
Plug and Play

Yes
HDCP version

1.4
HDBaseT certified

Yes
RJ-45 input ports

1
HDBaseT port

Yes
DisplayPorts out

1
Power consumption (TX)

2.84 W
Operating temperature (T-T)

0 – 40 °C
Weight

750 g
Receiver weight

270 g
Transmitter weight

240 g
Package depth

239 mm
Package weight

855 g
Manual

Yes
Master (outer) case length

325 mm
Maximum resolution

4096 x 2160 pixels
Maximum transfer distance

70 m
Supported video modes

1080p
HDCP

Yes
Rack mounting

Yes
Impedance

100 Ω
Product colour

Black
Connectivity technology

Wired
RJ-45 output ports

1
DisplayPorts in

1
DC-in jack

Yes
Power consumption (RX)

5.72 W
Storage temperature (T-T)

-20 – 60 °C
Receiver dimensions (WxDxH)

94.2 x 66 x 29 mm
Package width

59 mm
Package height

160 mm
AC adapter included

Yes
Master (outer) case width

250 mm
Master (outer) case height

175 mm

Brand

Aten
