ATEN DVI /Audio Over Cat5 Extender With MK

Part No:

VE607

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE607 DVI/Audio Cat5 Extender+Wall Plate

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE607 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

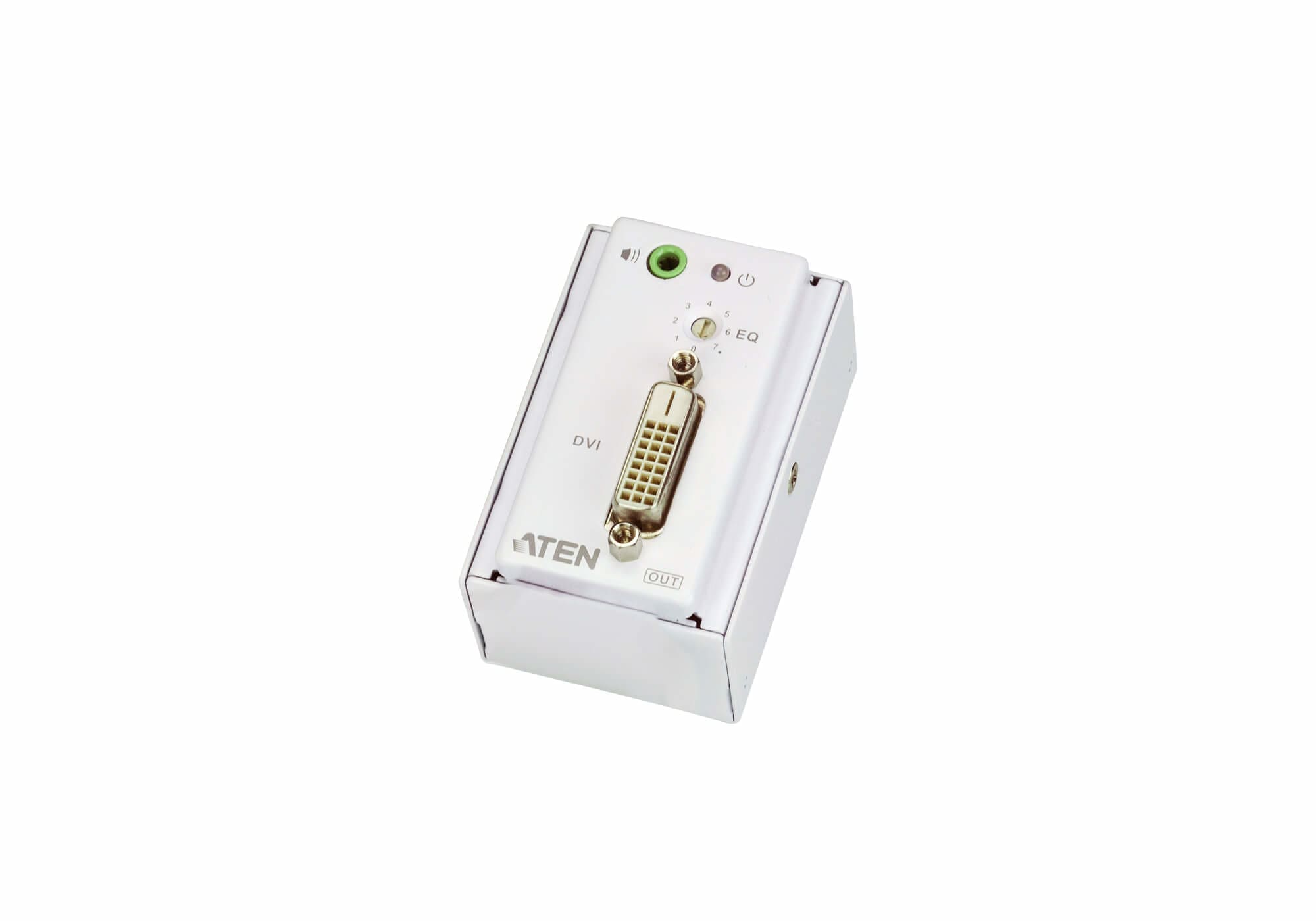

The VE607 DVI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box. It extends DVI and audio signals up to 60 m over Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.
1x VE607 DVI/Audio Cat 5 Transmitter with MK Wall Plate
1x VE607 DVI/Audio Cat 5 Receiver with MK Wall Plate
1x Terminal Block Connector
1x 0AD6-1909-06EG Power Adapter
2x MK type Wall Plate Covers
8x Screw Covers
1x Screw kit
1x User Instructions

Feature Feature Value
Type AV transmitter & receiver
Maximum resolution 1920 x 1200 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 60 m
Audio system stereo
Electrostatic Discharge (ESD) protection 15 kV
LED indicators Yes
Supported video modes 1080p
Supported graphics resolutions 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
Bandwidth 6.75 Gbit/s
Bandwidth 225 MHz
Resolution 1920 x 1200 pixels
HDCP Yes
Material Metal
Plug and Play Yes
Impedance 100 Ω
Product colour White
Connectivity technology Wired
Ethernet LAN Yes
RJ-45 input ports 2
RJ-45 output ports 2
DVI input ports 1
DVI output ports 1
Video in 1
Video out 1
Audio input 1
Audio output 1
DC-in jack Yes
Operating voltage (transmitter) 9 V
Operating voltage (receiver) 9 V
Power consumption (transmitter) (max) 1.35 W
Power consumption (receiver) (max) 0.81 W
External power adapter Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Weight 446 g
Receiver dimensions (WxDxH) 44.4 x 68.5 x 43.4 mm
Receiver weight 180 g
Transmitter dimensions (WxDxH) 44.4 x 68.5 x 43.4 mm
Transmitter weight 180 g
Quantity per pack 2 pc(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 606 g
AC adapter included Yes
Manual Yes
Sustainability certificates RoHS
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 3.45 kg
Master (outer) case net weight 2.23 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV transmitter & receiver
Cable types supported

Cat5e, Cat6
Audio system

Stereo
LED indicators

Yes
Bandwidth

225 MHz, 6.75 Gbit/s
HDCP

Yes
Plug and Play

Yes
Product colour

White
Ethernet LAN

Yes
RJ-45 output ports

2
DVI output ports

1
Video out

1
Audio output

1
External power adapter

Yes
Storage temperature (T-T)

-20 – 60 °C
Weight

446 g
Receiver weight

180 g
Transmitter weight

180 g
Package width

59 mm
Package height

160 mm
AC adapter included

Yes
Sustainability certificates

RoHS
Master (outer) case length

325 mm
Maximum resolution

1920 x 1200 pixels
Maximum transfer distance

60 m
Supported video modes

1080p
Resolution

1920 x 1200 pixels
Material

Metal
Impedance

100 Ω
Connectivity technology

Wired
RJ-45 input ports

2
DVI input ports

1
Video in

1
Audio input

1
DC-in jack

Yes
Operating temperature (T-T)

0 – 50 °C
Receiver dimensions (WxDxH)

44.4 x 68.5 x 43.4 mm
Quantity per pack

2 pc(s)
Package depth

239 mm
Package weight

606 g
Manual

Yes
Master (outer) case width

250 mm
Master (outer) case height

175 mm

Brand

Aten
