Description
The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
1x VE600A DVI Extender with Audio Local Unit
1x VE600A DVI Extender with Audio Remote Unit
2x 0AD6-1605-09EG Power Adapters
1x Mounting Kit
1x User Instructions
| Feature |
Feature Value |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 1200 pixels |
| Cable types supported |
Cat5e |
| Maximum transfer distance |
60 m |
| Supported video modes |
1080i, 1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth |
6.75 Gbit/s |
| Bandwidth |
225 MHz |
| HDCP |
Yes |
| Material |
Metal |
| Impedance |
100 Ω |
| Product colour |
Black |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
2 |
| RJ-45 output ports |
2 |
| DVI input ports |
2 |
| DVI output ports |
2 |

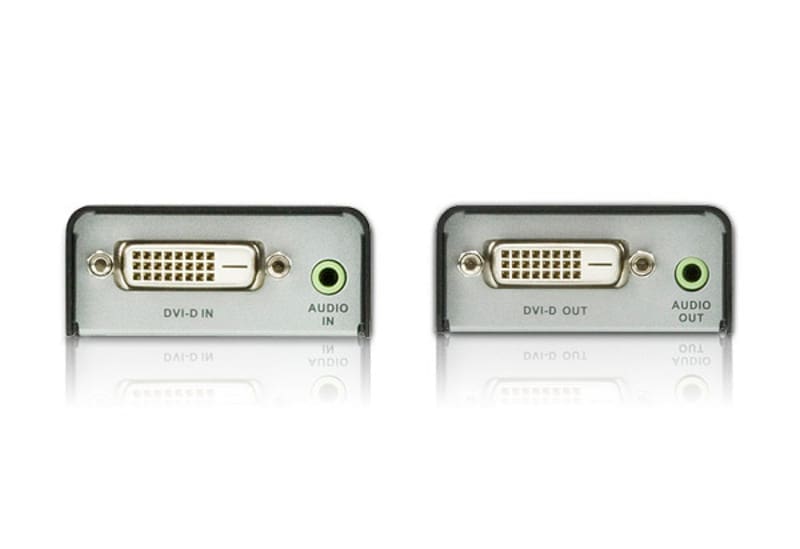

| Video in |
1 x DVI-D |
| Video out |
1 x DVI-D |
| Audio input |
1 |
| Audio output |
1 |
| Power consumption (max) |
2.05 W |
| Power consumption (transmitter) (max) |
1.56 W |
| Power consumption (receiver) (max) |
0.76 W |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Weight |
490 g |
| Receiver dimensions (WxDxH) |
56 x 91.3 x 24 mm |
| Receiver weight |
170 g |
| Transmitter dimensions (WxDxH) |
56 x 91.3 x 24 mm |
| Transmitter weight |
170 g |
| Quantity per pack |
2 pc(s) |
| Package width |
59 mm |
| Package depth |
239 mm |
| Package height |
160 mm |
| Package weight |
660 g |
| AC adapter included |
Yes |
| Manual |
Yes |
| Grounding wire |
Yes |
| Mounting kit |
Yes |
| Compliance certificates |
RoHS |
| Master (outer) case width |
315 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case height |
338 mm |
| Master (outer) case gross weight |
14 kg |
| Master (outer) case net weight |
9.8 kg |
| Products per master (outer) case |
20 pc(s) |
