Description

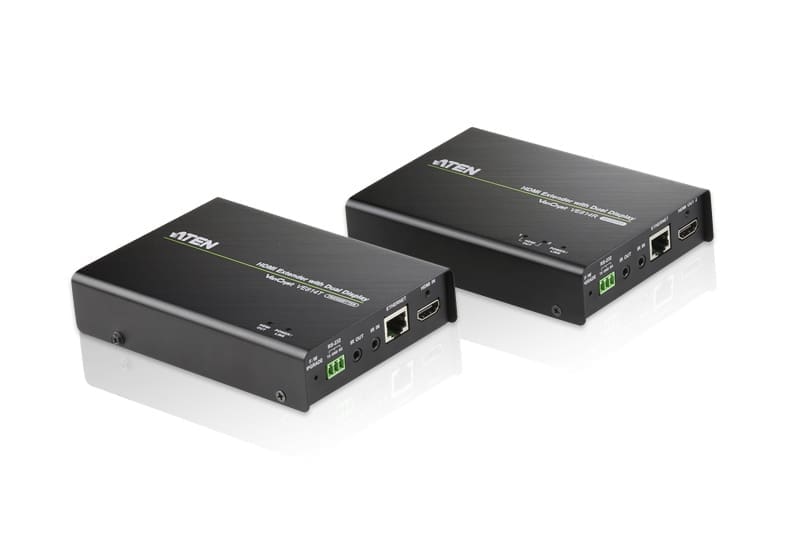

ATEN’s offering delivers high quality videos in dual displays over distance. With the VE814 HDMI Extender, your HDMI displays can be located up to 100 meters away from the HDMI source device. This is made possible using only one Cat 5e/6 cable, which is cheap and easily available. In addition, your video can be streamed using up to three HDMI displays – dual displays connected to the receiving unit (VE814R) and another one to the transmitter unit (VE814T).

The VE814 carries an Ethernet pass-through port for Internet connectivity, making it easy to go online when necessary. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814 is HDMI (3D, Deep Color, 4K) and HDCP compatible, ensuring superior video quality so that you get the most out of your HDMI displays.

Feature Feature Value
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 100 m
LED indicators Yes
Supported video modes 1080p, 2160p
Supported graphics resolutions 1920 x 1080 (HD 1080), 3840 x 2160
HDCP Yes
3D Yes
Consumer Electronics Control (CEC) support Yes
Impedance 100 Ω
Product colour Black
Connectivity technology Wired
Ethernet LAN Yes
RJ-45 input ports 1
Number of HDMI outputs 2
RS-232 input ports 1
Operating voltage 5.3 V
Power consumption (typical) 13.3 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 141.7 mm
Depth 103 mm
Height 30 mm
Weight 460 g

Additional information

Type

AV transmitter & receiver
Cable types supported

Cat5e, Cat6
LED indicators

Yes
3D

Yes
Impedance

100 Ω
Connectivity technology

Wired
RJ-45 input ports

1
RS-232 input ports

1
Power consumption (typical)

13.3 W
Storage temperature (T-T)

-20 – 60 °C
Width

141.7 mm
Height

30 mm
Maximum resolution

3840 x 2160 pixels
Maximum transfer distance

100 m
Supported video modes

1080p, 2160p
HDCP

Yes
Product colour

Black
Ethernet LAN

Yes
Number of HDMI outputs

2
Operating voltage

5.3 V
Operating temperature (T-T)

0 – 50 °C
Depth

103 mm
Weight

460 g

Brand

Aten
