ATEN HDMI HDBaseT Receiver with POH

Part No:

VE1812R

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VE1812R HDBT Receiver with PoH 4K 100m

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE1812R Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

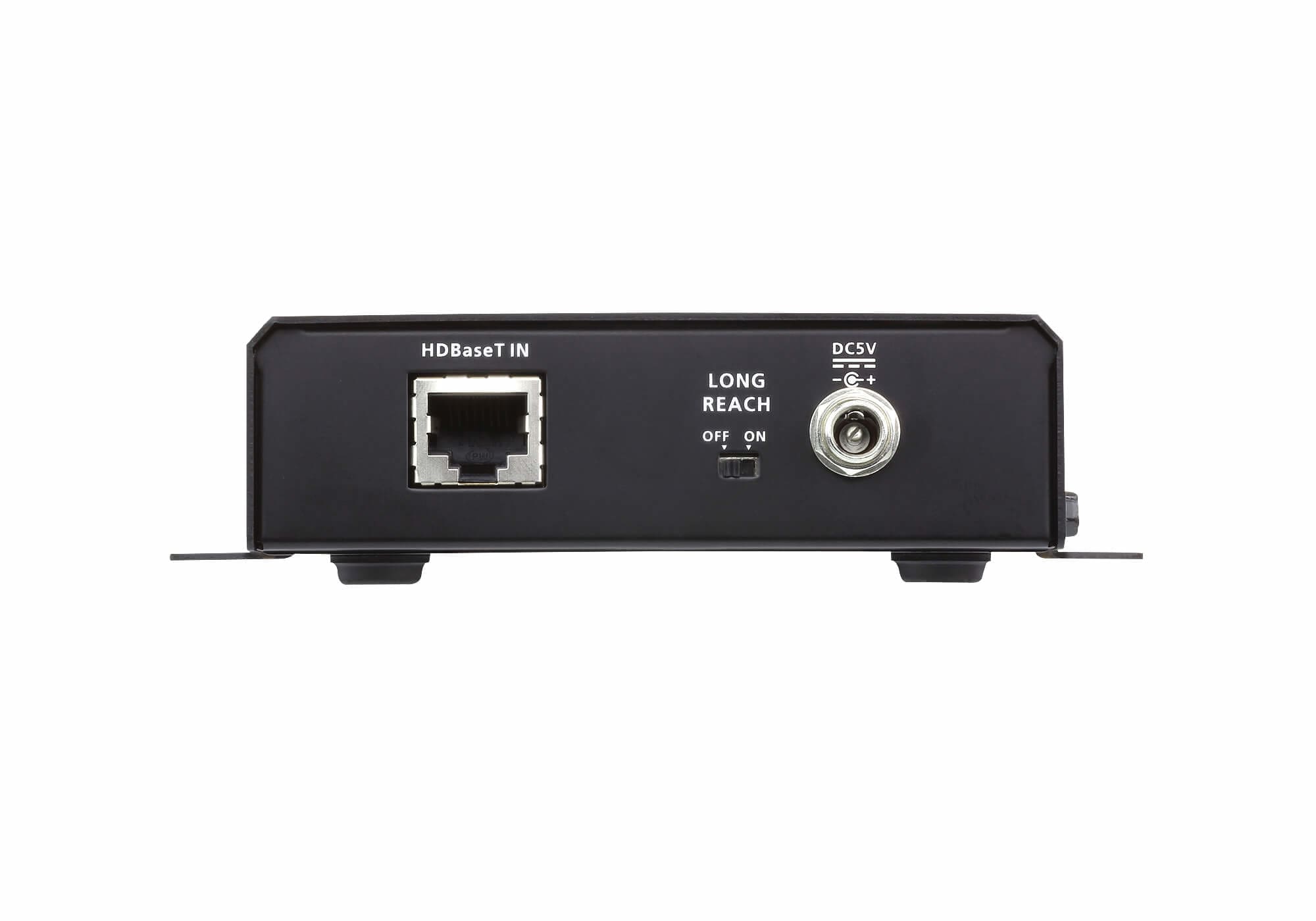

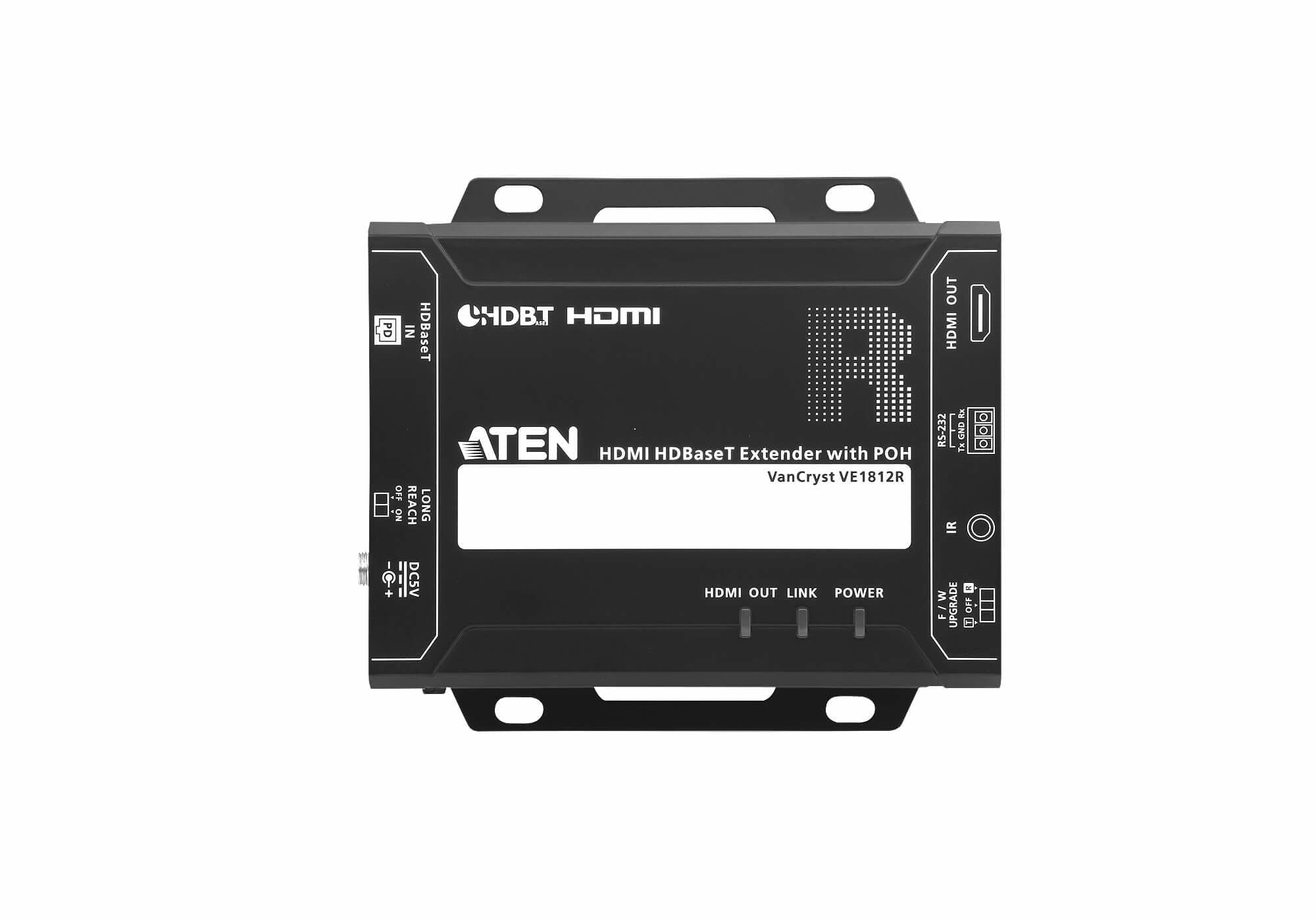

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
1x VE1812R HDMI HDBaseT Receiver with POH
1x 0AD9-1F05-26EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions

Feature Feature Value
Type AV receiver
Maximum resolution 4096 x 2160 pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 150 m
LED indicators Yes
Supported video modes 1080p, 2160p
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
Bandwidth 340 MHz
HDCP Yes
Material Metal
3D Yes
Consumer Electronics Control (CEC) support Yes
Impedance 100 Ω
Product colour Black
Connectivity technology Wired
RJ-45 input ports 1
HDBaseT port Yes
Number of HDMI outputs 1
RS-232 output ports 1
Video out 1
3.5 mm (1/8-inch) out Yes
Remote (IR) output 1
DC-in jack Yes
Operating voltage (receiver) 5 V
Power consumption (receiver) (max) 6.4 W
External power adapter Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Weight 650 g
Receiver dimensions (WxDxH) 123 x 140.4 x 30 mm
Receiver weight 450 g
Quantity per pack 1 pc(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 750 g
AC adapter included Yes
Quick start guide Yes
Sustainability certificates RoHS
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 4.48 kg
Master (outer) case net weight 3.25 kg
Products per master (outer) case 5 pc(s)

Additional information

Type

AV receiver
Cable types supported

Cat5e, Cat6, Cat6a
LED indicators

Yes
Bandwidth

10.2 Gbit/s, 340 MHz
Material

Metal
Product colour

Black
RJ-45 input ports

1
Number of HDMI outputs

1
Video out

1
Remote (IR) output

1
External power adapter

Yes
Storage temperature (T-T)

-20 – 60 °C
Weight

650 g
Receiver weight

450 g
Package width

59 mm
Package height

160 mm
AC adapter included

Yes
Sustainability certificates

RoHS
Master (outer) case length

325 mm
Maximum resolution

4096 x 2160 pixels
Maximum transfer distance

150 m
Supported video modes

1080p, 2160p
HDCP

Yes
3D

Yes
Impedance

100 Ω
Connectivity technology

Wired
HDBaseT port

Yes
RS-232 output ports

1
3.5 mm (1/8-inch) out

Yes
DC-in jack

Yes
Operating temperature (T-T)

0 – 40 °C
Receiver dimensions (WxDxH)

123 x 140.4 x 30 mm
Quantity per pack

1 pc(s)
Package depth

239 mm
Package weight

750 g
Quick start guide

Yes
Master (outer) case width

250 mm
Master (outer) case height

175 mm

Brand

Aten
