ATEN HDMI Over Cat5e/6 Audio/Video Extender (
Lock Added: N/A
This item is currently unavailable for next day delivery, however you may still order this item as a back-order?
VE800A HDMI Extender 60m 1080i
Related products
-
-
-
-
ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable
Part No:VE801exc VAT£206.82£248.18inc VATIn stock
10 available
Description

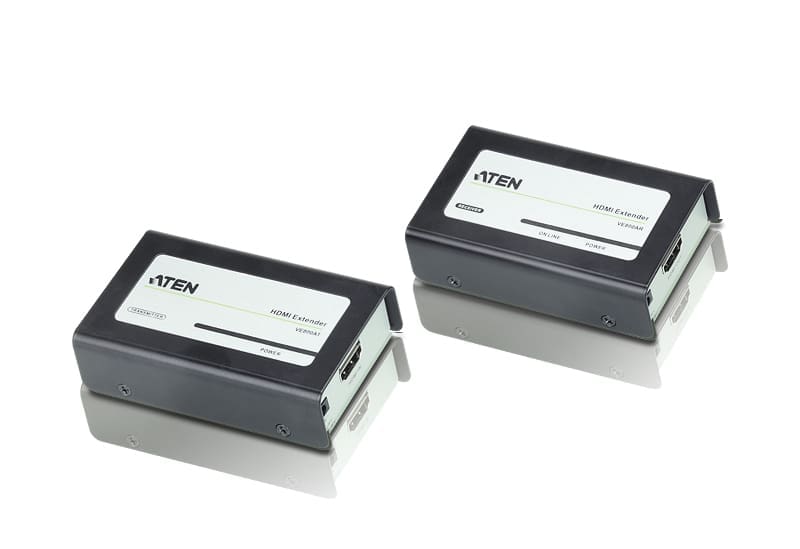

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
| Feature | Feature Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 3 m |
| LED indicators | Yes |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 55 mm |
| Depth | 90 mm |
| Height | 22 mm |
| Weight | 484 g |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 644 g |
| AC adapter included | Yes |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.52 kg |
| Master (outer) case net weight | 2.42 kg |
| Products per master (outer) case | 5 pc(s) |
Additional information
| Type | AV receiver |
|---|---|
| Cable types supported | Cat5, Cat6, Cat6a |
| LED indicators | Yes |
| Bandwidth | 225 MHz, 6.75 Gbit/s |
| Material | Metal |
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| HDMI in | 1 |
| DC-in jack | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 55 mm |
| Height | 22 mm |
| Package width | 59 mm |
| Package height | 160 mm |
| AC adapter included | Yes |
| Master (outer) case length | 325 mm |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 3 m |
| HDCP | Yes |
| Product colour | Black |
| Ethernet LAN | Yes |
| RJ-45 output ports | 2 |
| Number of HDMI outputs | 1 |
| Operating temperature (T-T) | 0 – 50 °C |
| Depth | 90 mm |
| Weight | 484 g |
| Package depth | 239 mm |
| Package weight | 644 g |
| Master (outer) case width | 250 mm |
| Master (outer) case height | 175 mm |
