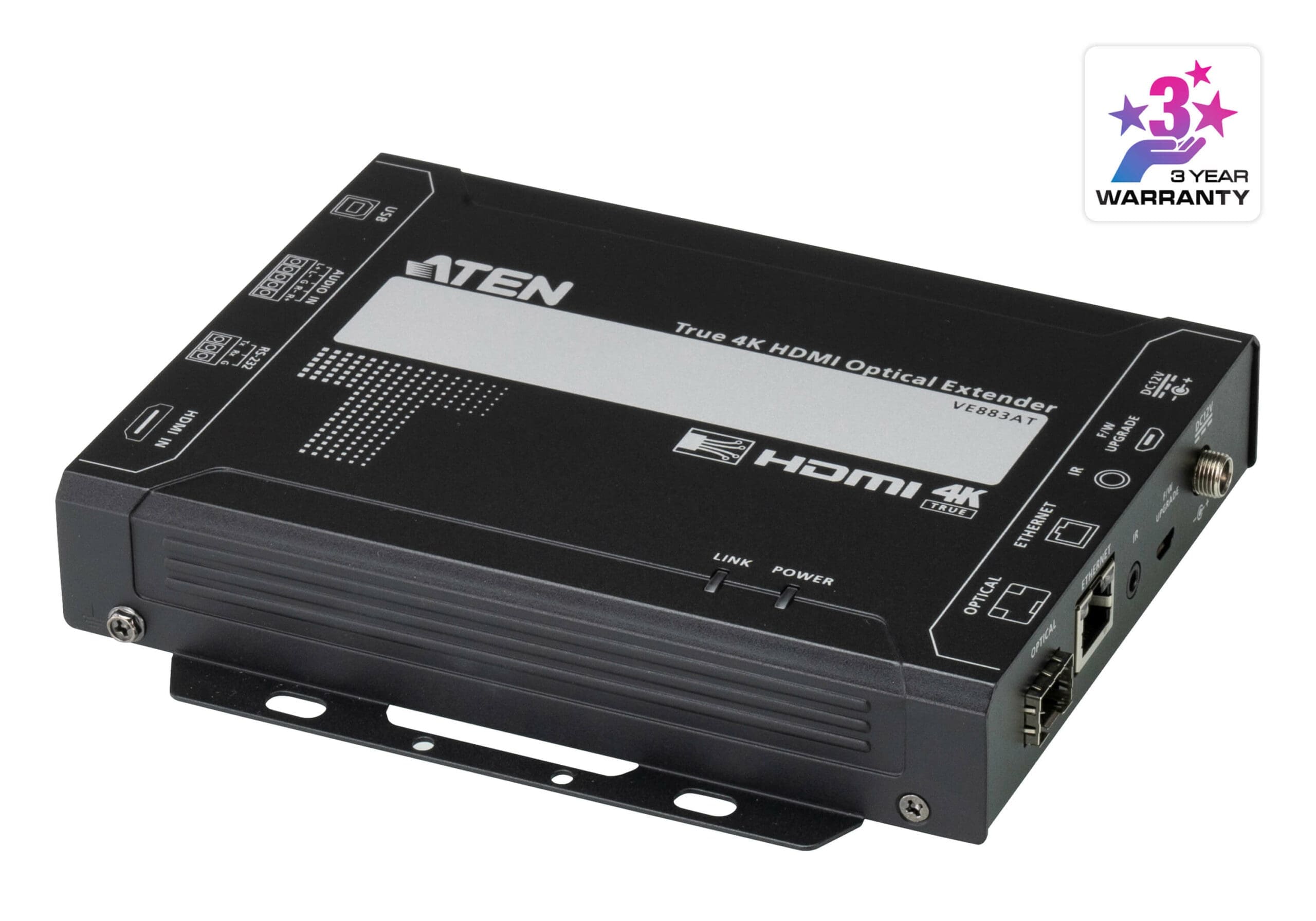

ATEN True 4K HDMI Optical Transmitter (4K@300m (K1, MM) / 10km (K2, SM))

Part No:

VE883ATK2

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

True 4K HDMI Optical Tx 10KM

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VE883ATK2 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The VE883AT is a True 4K HDMI Optical transmitter that extends up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883ATK1) or 10 km (VE883ATK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883AT prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

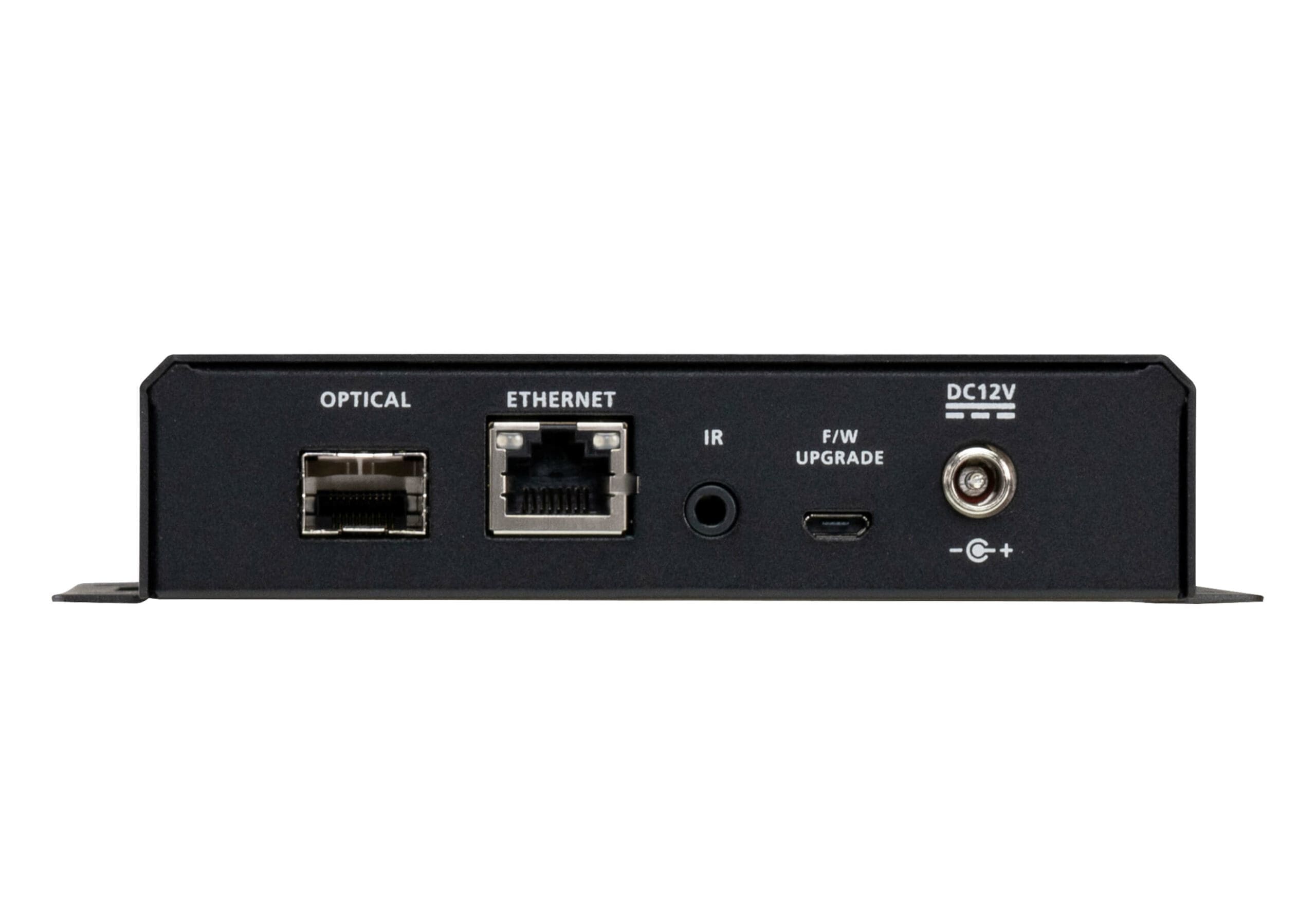

The VE883AT comes with interfaces of HDMI output, analog audio output, USB 2.0, IR, RS-232, and Gigabit Ethernet. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883AT is compatible with ATEN’s VM7584 Optical Input Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.

Feature Feature Value
Type AV transmitter
Maximum resolution 4096 x 2160 pixels
Maximum transfer distance 10000 m
Fiber optic wavelengths supported 1310 nm
Fiber mode structure Single-mode
Electrostatic Discharge (ESD) protection Yes
Electrostatic Discharge (ESD) protection 15 kV
LED indicators Yes
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
Bandwidth 340 MHz
HDCP Yes
Material Metal
3D Yes
Rack mounting Yes
Firmware upgradeable Yes
Plug and Play Yes
Impedance 100 Ω
HDCP version 2.2
Product colour Black
Connectivity technology Wired
RJ-45 output ports 1
HDMI in 1
Fiber optic connector SFP
USB ports quantity 1
USB version 2.0
USB connector type USB Type-B
Remote (IR) output 1
DC-in jack Yes
Power consumption (transmitter) (max) 7.01 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Width 146.9 mm
Depth 169.4 mm
Height 30 mm
Weight 670 g
Quantity per pack 1 pc(s)
Package width 95 mm
Package depth 265 mm
Package height 220 mm
Package weight 1.68 kg
AC adapter included Yes
Manual Yes
IR blaster included Yes
IR receiver included Yes
Country of origin Taiwan
Harmonized System (HS) code 85176200
Master (outer) case width 232 mm
Master (outer) case length 500 mm
Master (outer) case height 283 mm
Master (outer) case gross weight 8.99 kg

Additional information

Type

AV transmitter
Maximum transfer distance

10000 m
Fiber mode structure

Single-mode
Bandwidth

10.2 Gbit/s, 340 MHz
Material

Metal
Rack mounting

Yes
Plug and Play

Yes
HDCP version

2.2
Connectivity technology

Wired
HDMI in

1
USB ports quantity

1
USB connector type

USB Type-B
DC-in jack

Yes
Operating temperature (T-T)

0 – 40 °C
Depth

169.4 mm
Weight

670 g
Package width

95 mm
Package height

220 mm
AC adapter included

Yes
IR blaster included

Yes
Country of origin

Taiwan
Master (outer) case width

232 mm
Master (outer) case height

283 mm
Maximum resolution

4096 x 2160 pixels
LED indicators

Yes
HDCP

Yes
3D

Yes
Firmware upgradeable

Yes
Impedance

100 Ω
Product colour

Black
RJ-45 output ports

1
Fiber optic connector

SFP+
USB version

2.0
Remote (IR) output

1
Storage temperature (T-T)

-20 – 60 °C
Width

146.9 mm
Height

30 mm
Quantity per pack

1 pc(s)
Package depth

265 mm
Package weight

1.68 kg
Manual

Yes
IR receiver included

Yes
Harmonized System (HS) code

85176200
Master (outer) case length

500 mm

Brand

Aten
