Description

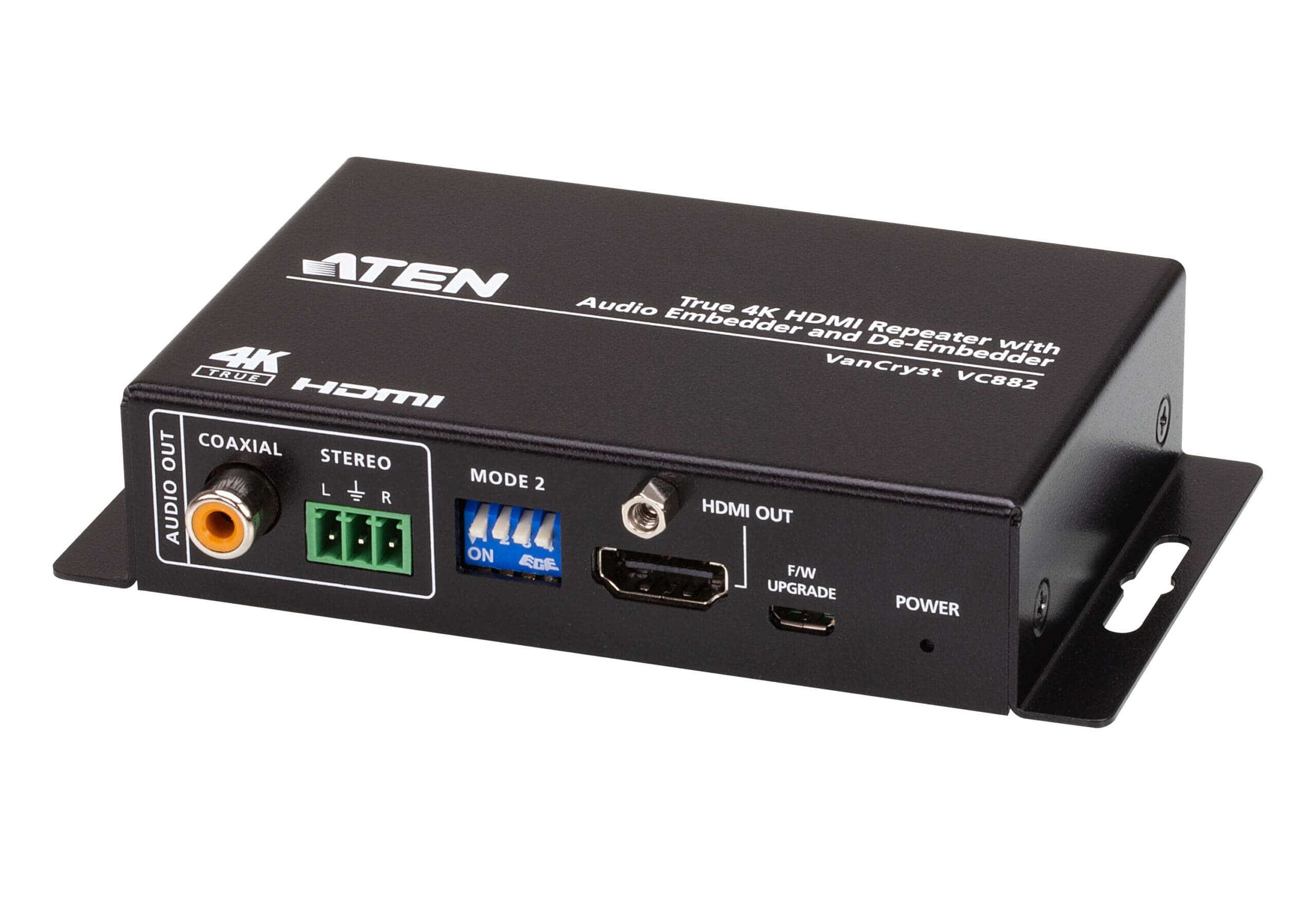

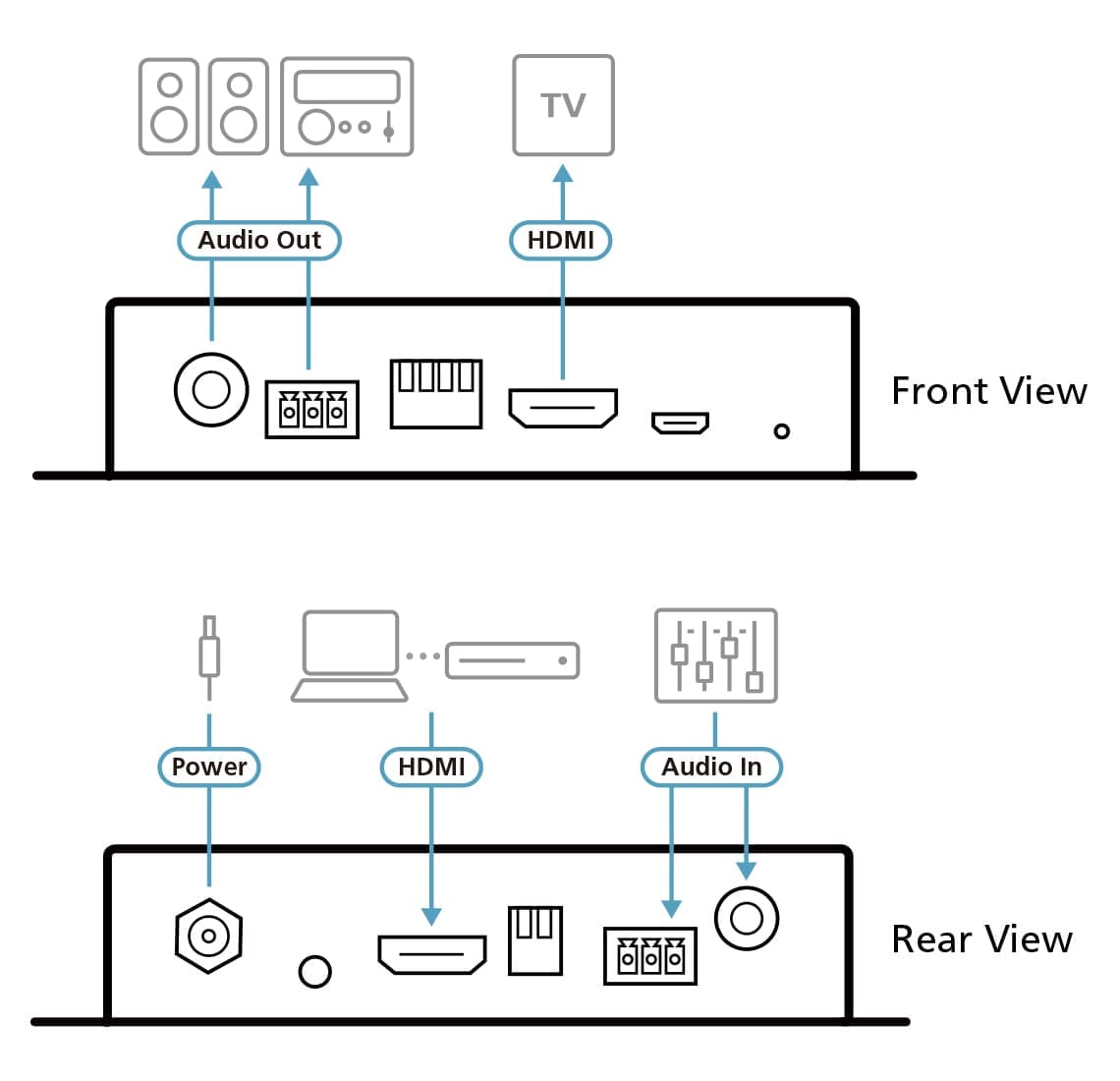

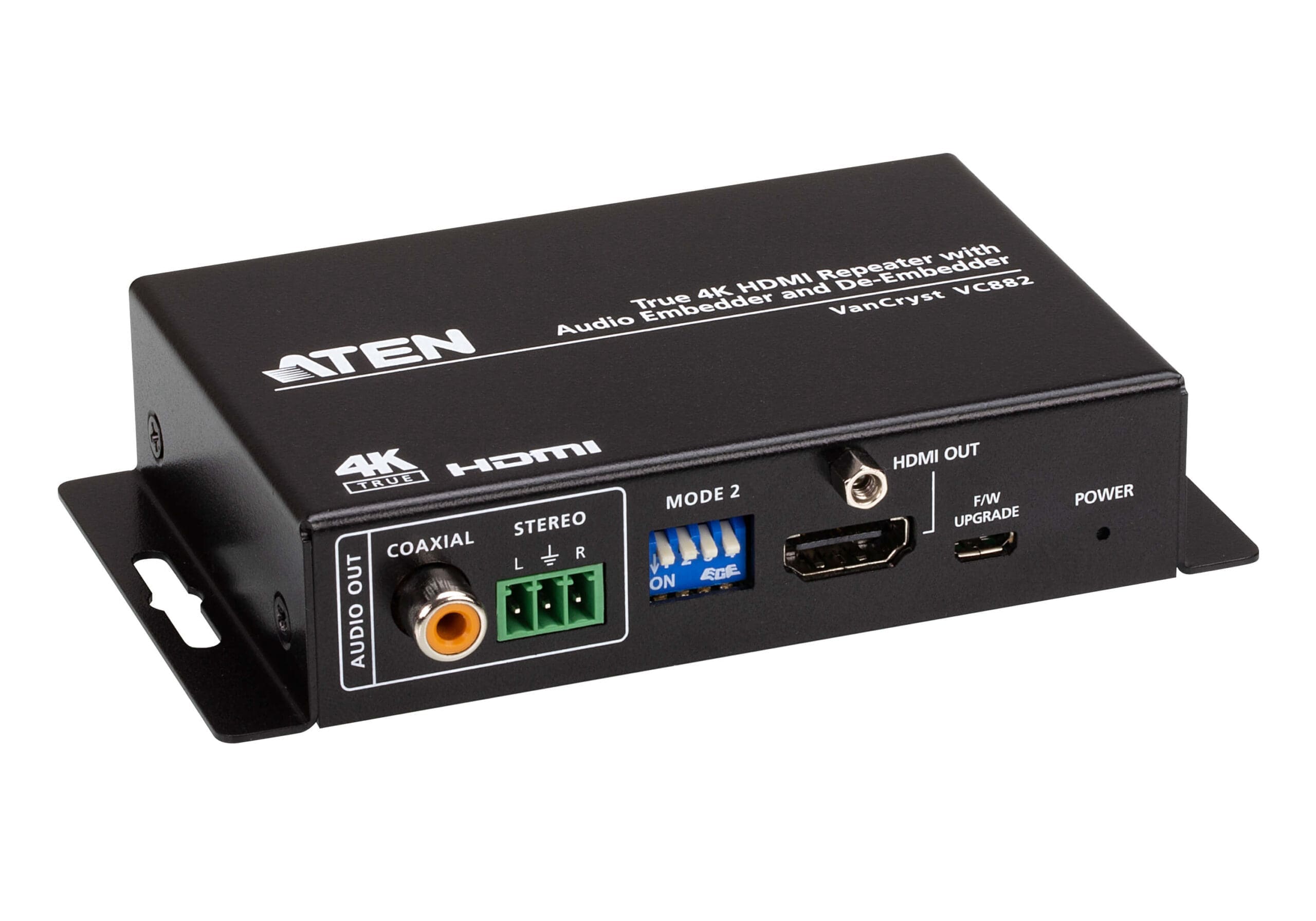

The VC882 is a True 4K HDMI Repeater with Audio Embedder and De-Embedder capable of embedding or de-embedding the HDMI audio signal, while supporting the HDMI signal transmission distance up to 5 meters with True 4K resolution. Apart from embedding a separate audio to an outgoing HDMI signal, the VC882 also allows audio extraction from the HDMI signal, and outputs the extracted signal through an alternative audio system.
In terms of the audio aspect, the VC882 works with versatile pass-through of HDMI audio formats – LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1. The VC882 also supports ARC function which eliminates the need of bulky cable setups when connecting an AV receiver, or a home theater system to a TV. When it comes to the video aspect, the VC882 supports True 4K (4096 x 2160 @ 60Hz 4:4:4) in HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG) formats to provide staggeringly crisp images. It is HDCP 2.2-compliant for content protection. The compact enclosure design, True 4K signal transmission, and embedding / de-embedding capability have made the VC882 ideal for training and conference rooms, video production, and home theater installations.
| Feature |
Feature Value |
| Type |
AV repeater |
| Maximum resolution |
4096 x 2160 pixels |
| Maximum transfer distance |
5 m |
| Maximum refresh rate |
60 Hz |
| LED indicators |
Yes |
| Supported graphics resolutions |
4096 x 2160 |
| Bandwidth |
18 Gbit/s |
| Bandwidth |
600 MHz |
| HDCP |
Yes |
| Material |
Metal |
| Impedance |
100 Ω |
| HDCP version |
2.2 |
| Product colour |
Black |
| Connectivity technology |
Wired |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.0 |
| USB ports quantity |
1 |
| USB connector type |
Micro-USB |
| Digital audio coaxial in |
1 |
| Digital audio coaxial out |
1 |
| DC-in jack |
Yes |
| External power adapter |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
82.2 mm |
| Depth |
122.2 mm |
| Height |
25 mm |
| Weight |
240 g |
| Quantity per pack |
1 pc(s) |
| Package width |
250 mm |
| Package depth |
325 mm |
| Package height |
175 mm |
| Package weight |
970 g |
| AC adapter included |
Yes |
| Manual |
Yes |
