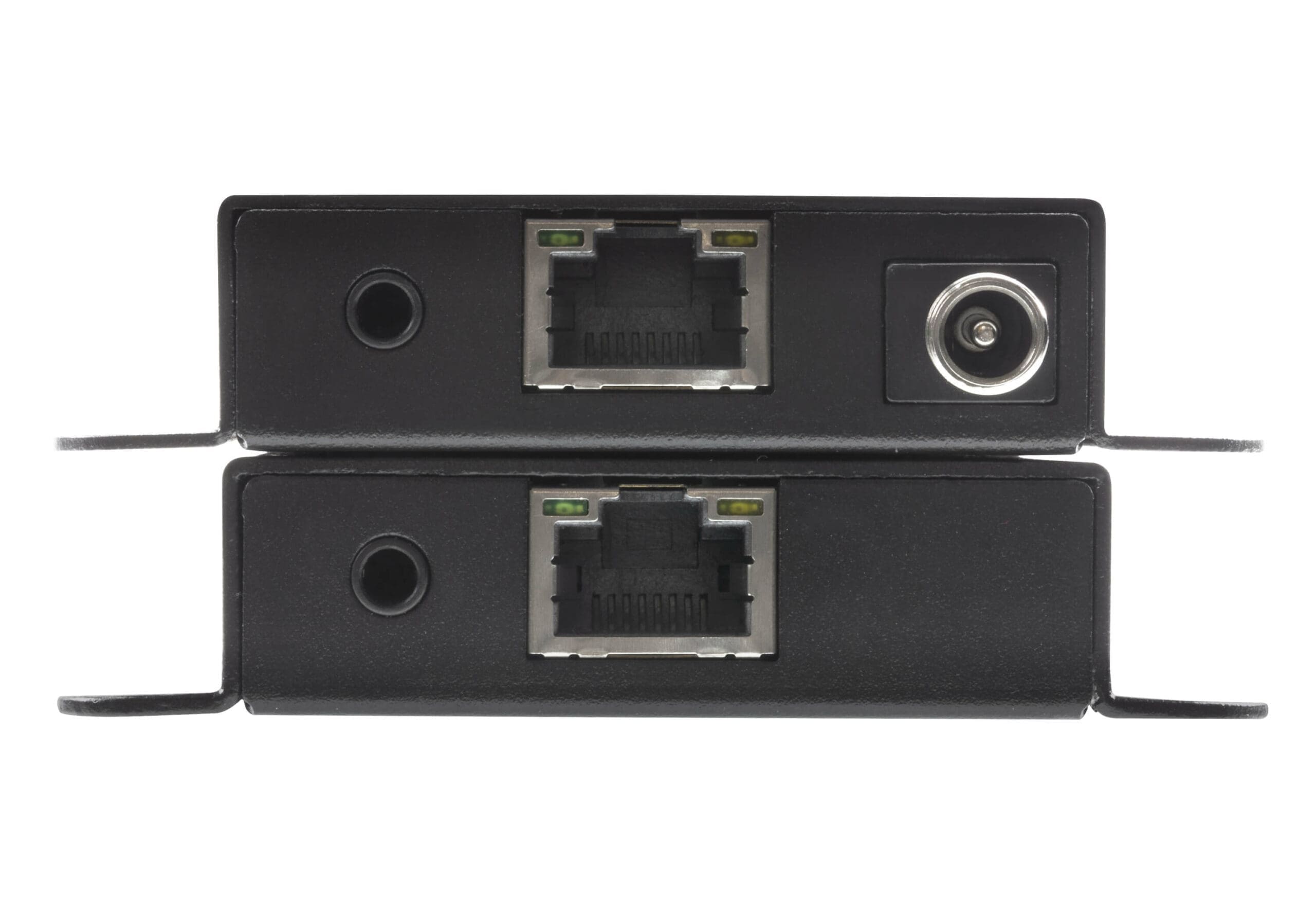

ATEN VE1821-AT-G AV extender AV transmitter & receiver Black
Lock Added: N/A
4K HDMI Cat 6 Extender
Related products
Description
As a complete end-to-end solution, the VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096 x 2160 / 3840 x 2160 @ 30 Hz (4 : 4 : 4) up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended). Crystal-clear video presentation is guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers.
Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces. The transmitter includes a local HDMI output port, allowing for cascading purposes or for users to monitor the UHD signal being extended to the receiver. With the built-in EDID switch, users can control which EDID is taken from either display. Plus, the HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display through the EDID Copying Mode. As a result of the IR transmission functionality, the source device connected to the transmitter can be seamlessly controlled from the receiver side, assuring easy and complete control for the user. The VE1821 adopts PoC (Power over Cable) technology, which enables the transmitter to provide power to the receiver via a Cat 6 cable, eliminating the need for a bulky external power supply.
With such a rich set of features, the VE1821 delivers excellent AV transmission quality and flexibility within different installation scenarios, such as meeting facilities, retail settings, entertainment systems, and more.
| Feature | Feature Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 35 m |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Impedance | 100 Ω |
| HDCP version | 1.4 |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power source type | DC |
| Power consumption (receiver) (max) | 0.87 W |
| Power consumption (transmitter) (max) | 1.86 mA |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Receiver dimensions (WxDxH) | 68 x 79.5 x 16.5 mm |
| Receiver weight | 120 g |
| Transmitter dimensions (WxDxH) | 68 x 79.5 x 16.5 mm |
| Transmitter weight | 120 g |
| Quantity per pack | 2 pc(s) |
Additional information
| Type | AV transmitter & receiver |
|---|---|
| Cable types supported | Cat5e, Cat6 |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| 3D | Yes |
| HDCP version | 1.4 |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Receiver weight | 120 g |
| Transmitter weight | 120 g |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 35 m |
| Bandwidth | 10.2 Gbit/s, 340 MHz |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) output | 1 |
| Power source type | DC |
| Storage temperature (T-T) | -20 – 60 °C |
| Receiver dimensions (WxDxH) | 68 x 79.5 x 16.5 mm |
| Quantity per pack | 2 pc(s) |
