ATEN VE1830 AV extender AV transmitter & receiver Black

Part No:
VE1830
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£374.86
£449.83
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

HDMI HDBaseT True 4K

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: VE1830 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

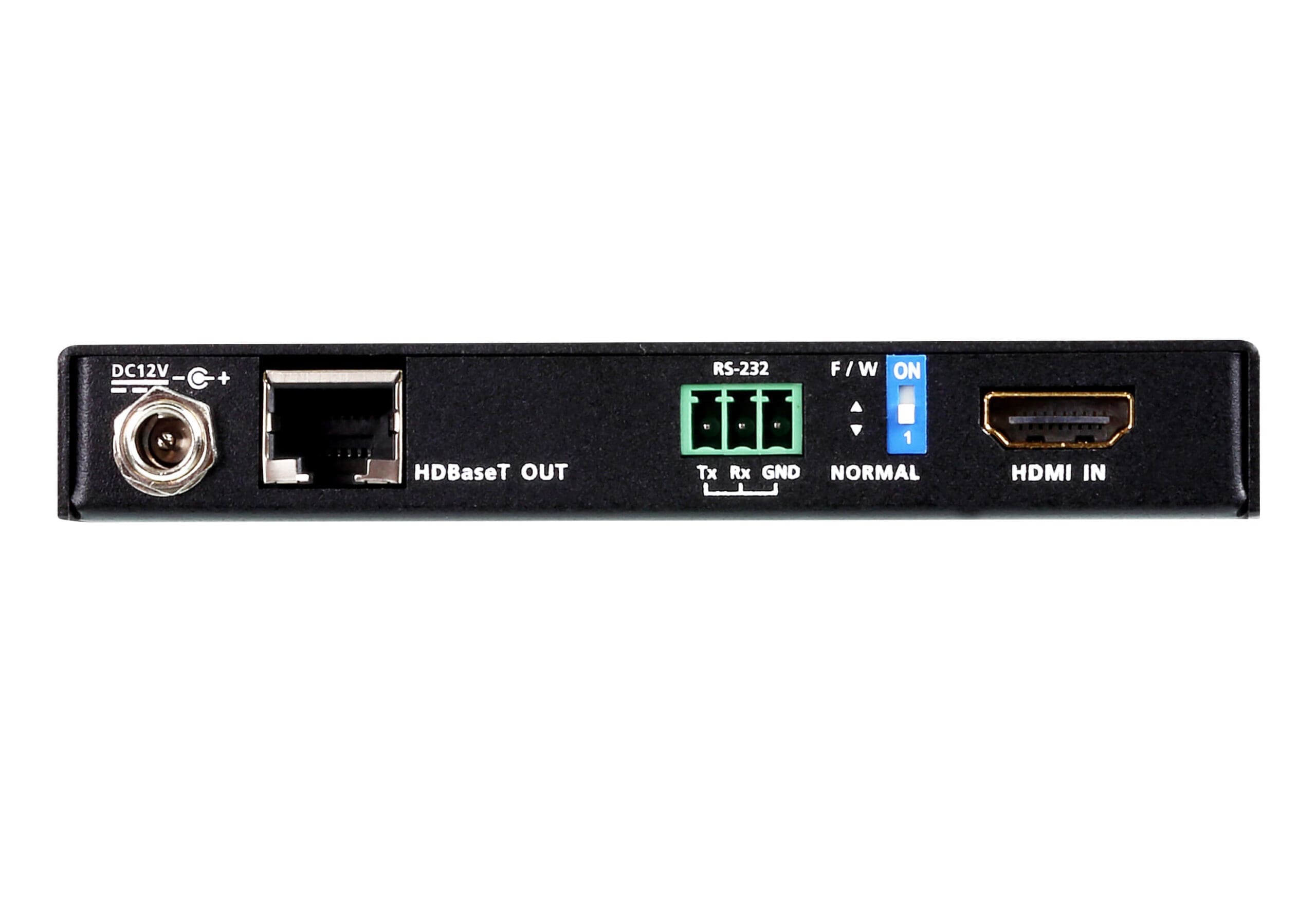

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.

Feature Feature Value
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 5 m
Maximum refresh rate 60 Hz
Bandwidth 10.2 Gbit/s
Bandwidth 340 MHz
HDCP Yes
Material Metal
3D Yes
Rack mounting Yes
Consumer Electronics Control (CEC) support Yes
Plug and Play Yes
Impedance 100 Ω
HDCP version 2.2
Product colour Black
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 1
Number of HDMI outputs 1
HDMI version 2.0a
DC-in jack Yes
Operating voltage 12 V
Power consumption (typical) 24 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Receiver dimensions (WxDxH) 118.6 x 71.9 x 16.8 mm
Receiver weight 120 g
Transmitter dimensions (WxDxH) 118.6 x 71.9 x 16.8 mm
Transmitter weight 150 g
AC adapter included Yes
Manual Yes
Mounting kit Yes

Additional information

Type

AV transmitter & receiver
Cable types supported

Cat5e, Cat6
Maximum refresh rate

60 Hz
Bandwidth

10.2 Gbit/s, 340 MHz
Material

Metal
Rack mounting

Yes
Plug and Play

Yes
HDCP version

2.2
Connectivity technology

Wired
RJ-45 output ports

1
Number of HDMI outputs

1
DC-in jack

Yes
Power consumption (typical)

24 W
Storage temperature (T-T)

-20 – 60 °C
Receiver dimensions (WxDxH)

118.6 x 71.9 x 16.8 mm
AC adapter included

Yes
Mounting kit

Yes
Maximum resolution

3840 x 2160 pixels
Maximum transfer distance

5 m
HDCP

Yes
3D

Yes
Impedance

100 Ω
Product colour

Black
RJ-45 input ports

1
HDMI in

1
HDMI version

2.0a
Operating voltage

12 V
Operating temperature (T-T)

0 – 40 °C
Receiver weight

120 g
Transmitter weight

150 g
Manual

Yes

Brand

Aten
