ATEN VE2812AT AV extender AV transmitter Black
Lock Added: N/A
HDMI & VGA HDBaseT Transmitter with POH
Non-Returnable*
Related products
-
-
ATEN VE1812-AT-E AV extender AV transmitter & receiver Black
Part No:VE1812-AT-Eexc VAT£395.32£474.38inc VAT -
-
Description
ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

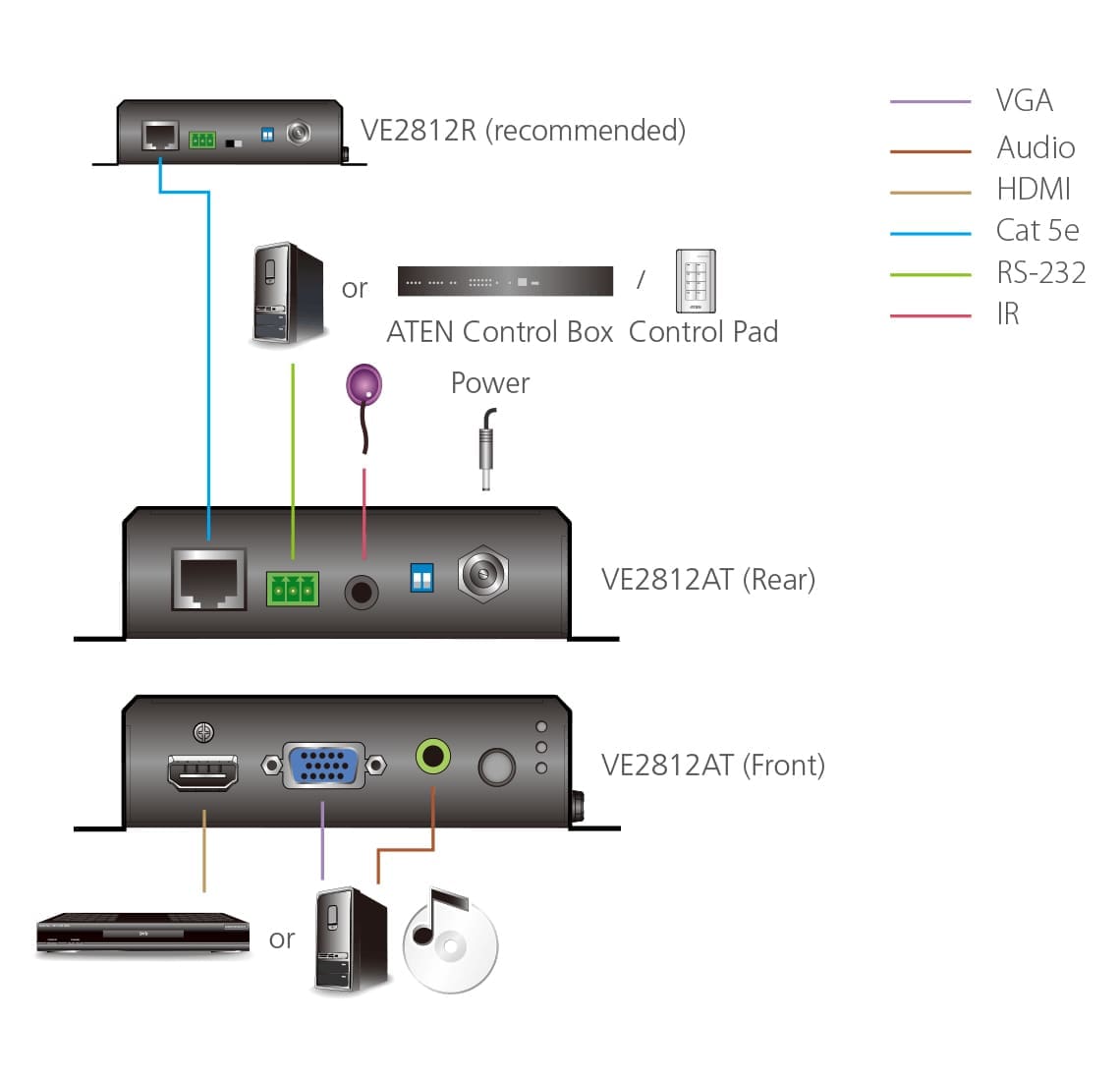

For utility flexibility, the VE2812AT can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812AT is recommended to be deployed in paired with the VE2812R. The VE2812R can carry on IR/RS-232 from the VE2812R to the VE2812AT, allowing users to remotely control the VE2812AT unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.
| Feature | Feature Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Audio input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 123 mm |
| Depth | 143.2 mm |
| Height | 30 mm |
| Weight | 470 g |
| Quantity per pack | 1 pc(s) |
Additional information
| Type | AV transmitter |
|---|---|
| Maximum transfer distance | 100 m |
| Bandwidth | 10.2 Gbit/s, 340 MHz |
| Material | Metal |
| Product colour | Black |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| Audio input | 1 |
| DC-in jack | No |
| Storage temperature (T-T) | -20 – 60 °C |
| Width | 123 mm |
| Height | 30 mm |
| Quantity per pack | 1 pc(s) |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| 3D | Yes |
| HDCP version | 2.2 |
| Connectivity technology | Wired |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Remote (IR) output | 1 |
| Operating temperature (T-T) | 0 – 40 °C |
| Depth | 143.2 mm |
| Weight | 470 g |
