Description

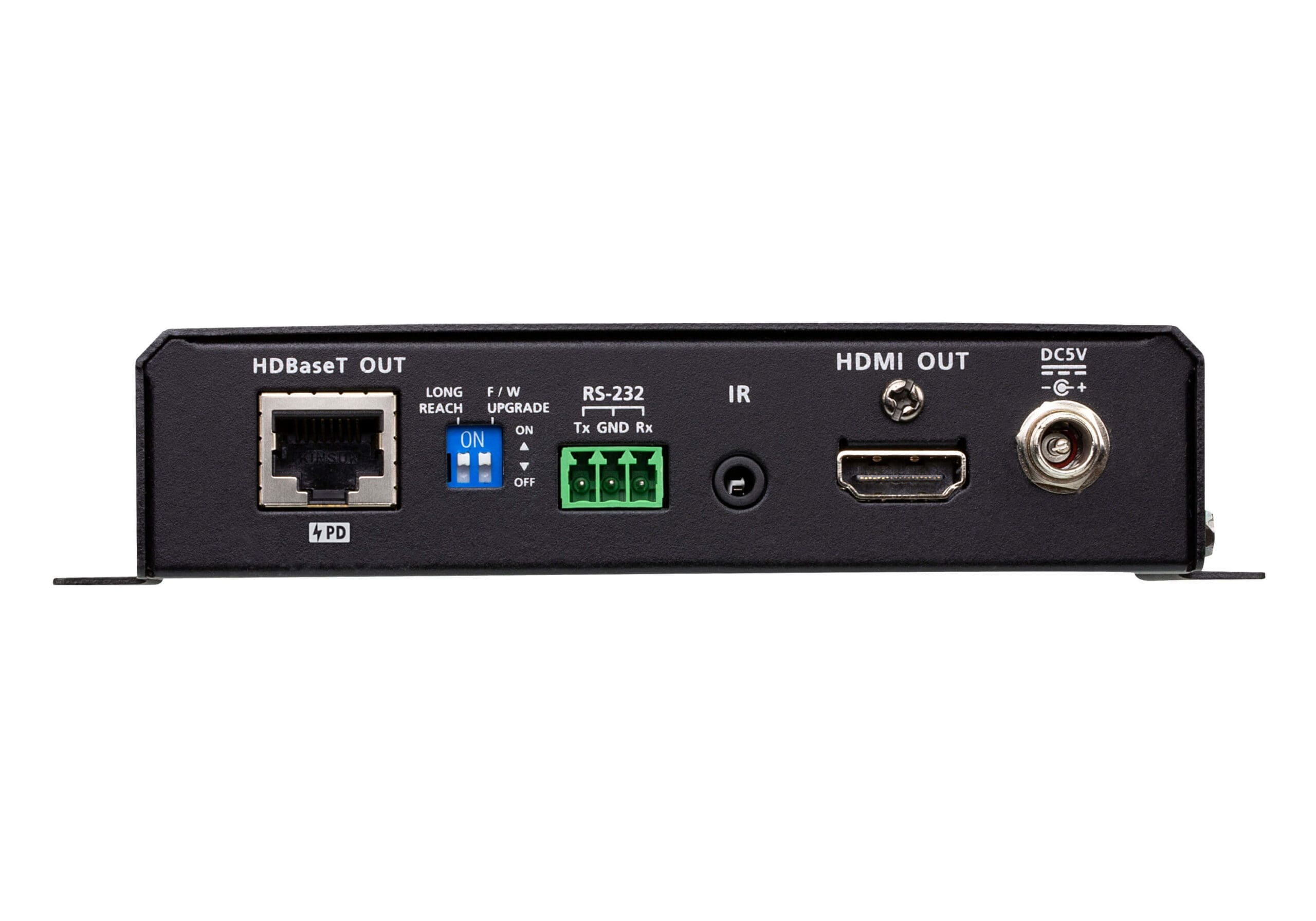

The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/analog sources conversion and extension.

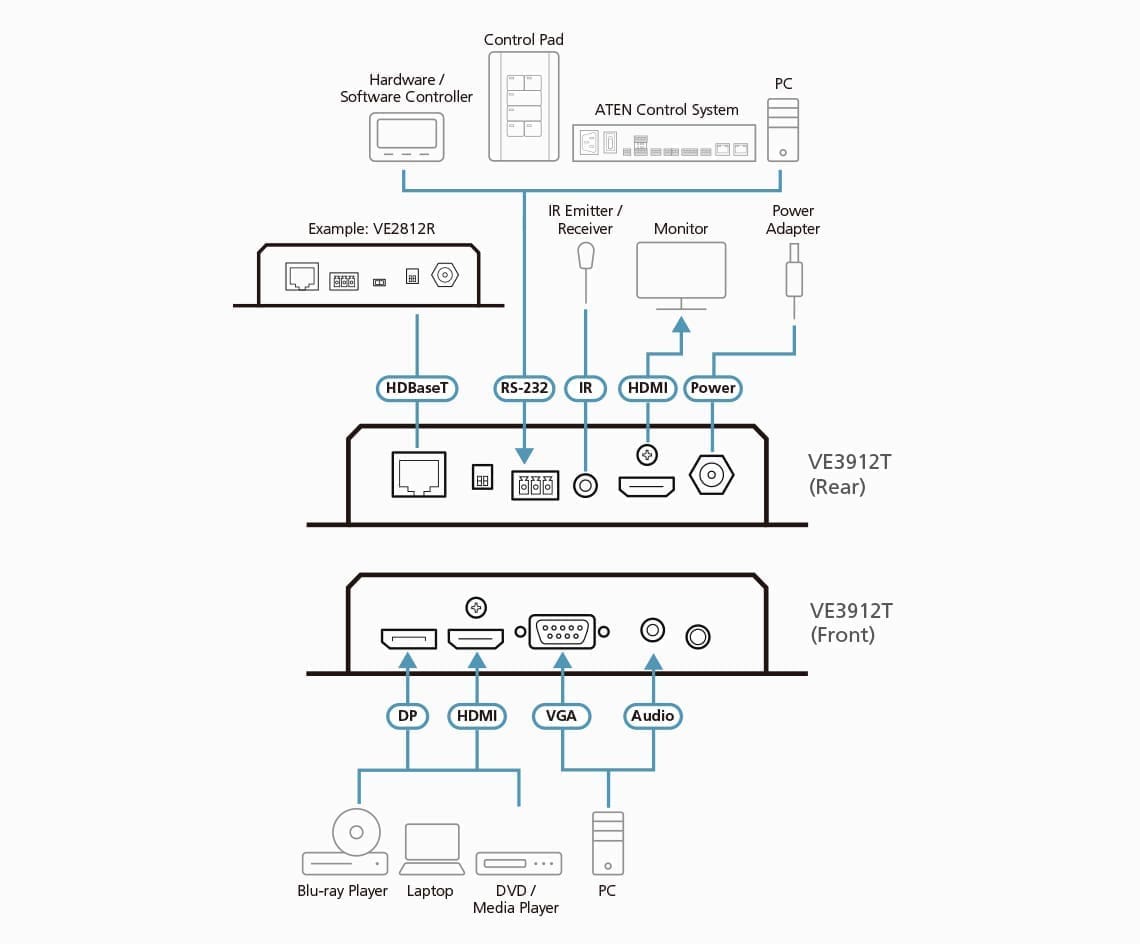

This HDCP 2.2 compliant transmitter meets the HDMI specification, including 3D, Deep Color, and 4Kx2K video quality. The Auto Switch Mode allows the VE3912T to automatically switch to a newly plugged-in source. With its built-in PoH (Power over HDBaseT) function, it can receive power from the HDBaseT output port on the connected device, eliminating the need for a power adapter. As a combination of extension and switch for both digital and analog inputs, VE3912T is recommended to be deployed in settings with multiple source inputs, such as conference rooms, digital educational environment or wherever integration and simplification are required.
| Feature |
Feature Value |
| Type |
AV transmitter |
| Maximum resolution |
4096 x 2160 pixels |
| Maximum transfer distance |
100 m |
| HDCP pass-through |
Yes |
| Supported video modes |
1080p, 2160p |
| Supported graphics resolutions |
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Bandwidth |
10.2 Gbit/s |
| Bandwidth |
340 MHz |
| Power |
8.77 W |
| On/off switch |
Yes |
| HDCP |
Yes |
| Material |
Metal |
| Control type |
Buttons |
| Consumer Electronics Control (CEC) support |
Yes |
| Impedance |
100 Ω |
| HDCP version |
2.2 |
| Product colour |
Black |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| VGA (D-Sub) input ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| DisplayPorts in |
1 |
| RS-232 output ports |
1 |
| Video in |
1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black) |
| Video out |
1 x HDMI Type A Female (Black) |
| VGA (D-Sub) ports quantity |
2 |
| Audio input |
1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x DisplayPort Female (Black) |
| AUX in |
Yes |
| DC-in jack |
Yes |
| Power consumption (max) |
8.77 W |
| External power adapter |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
147 mm |
| Depth |
173 mm |
| Height |
30 mm |
| Weight |
650 g |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Mounting brackets included |
Yes |
| Sustainability certificates |
RoHS |
