Description

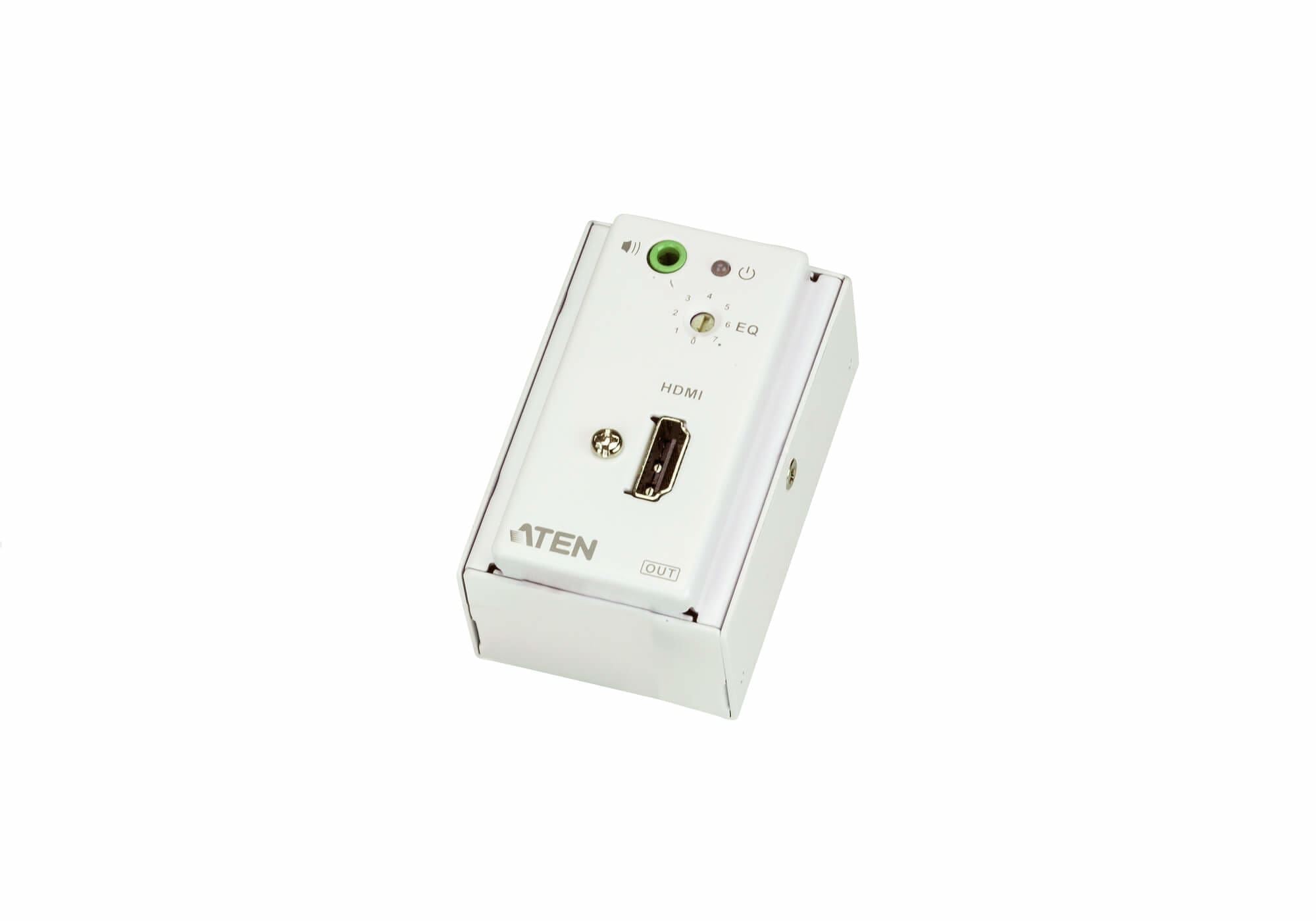

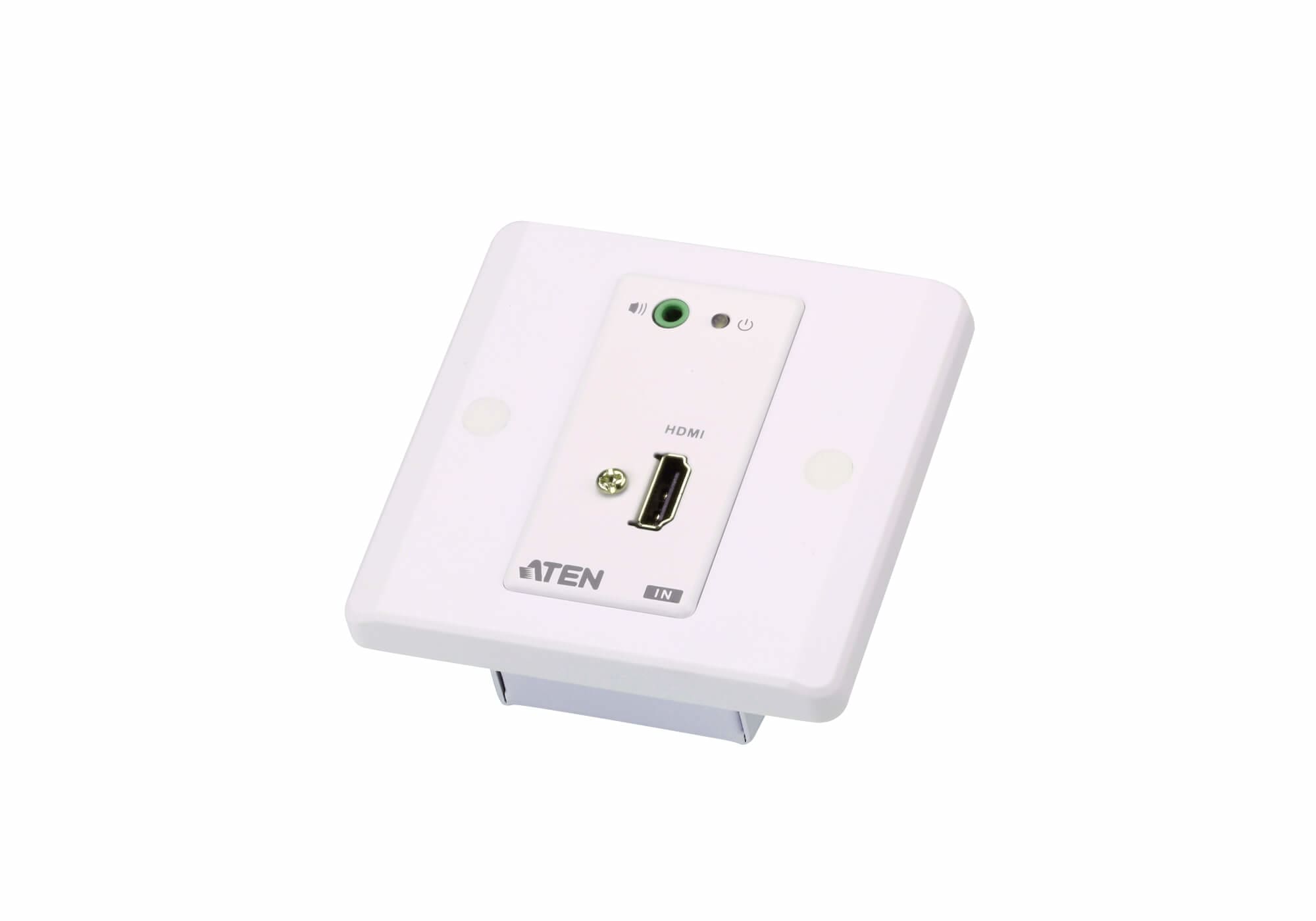

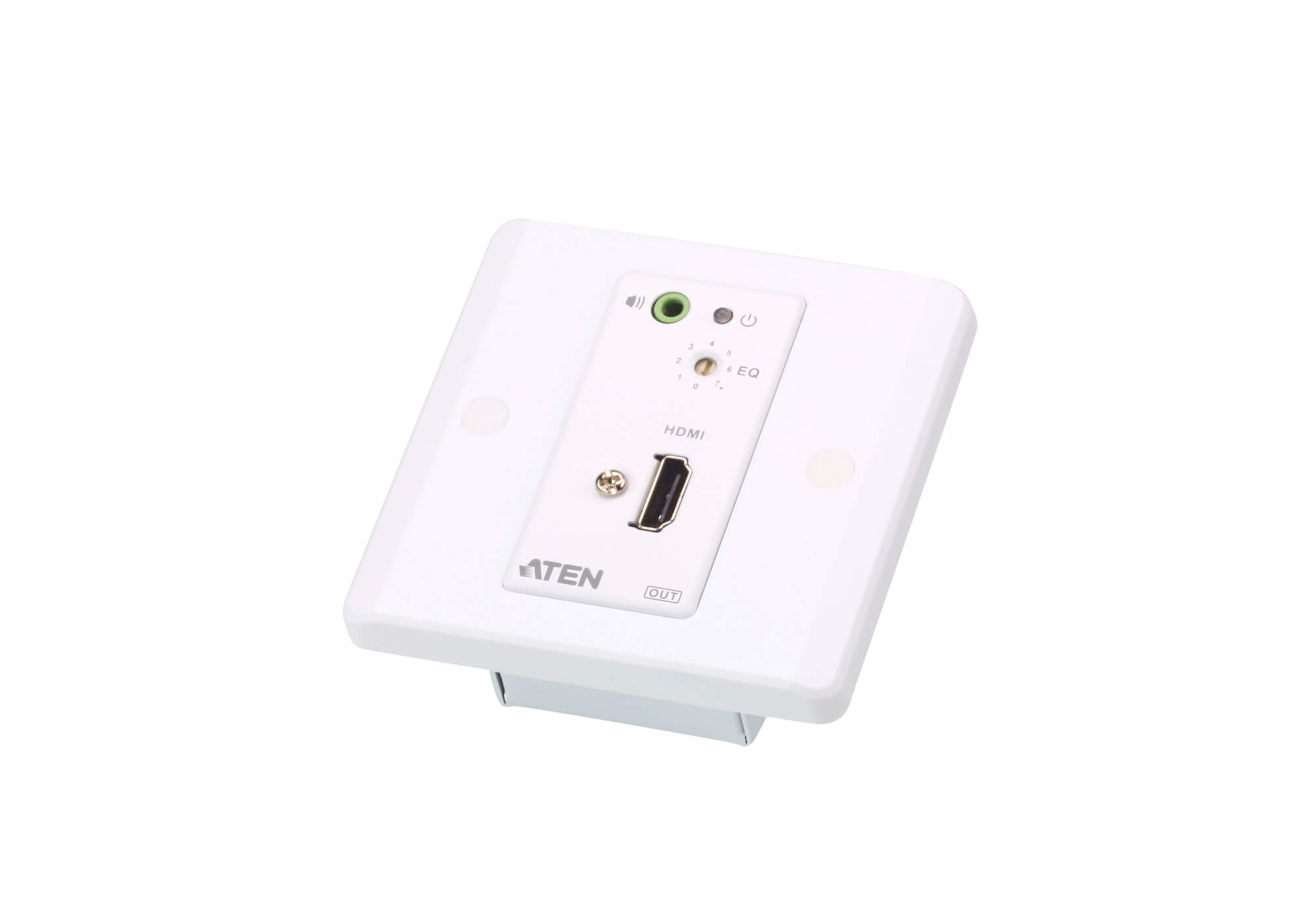

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.
The VE807 can be either powered at Transmitter or Receiver side, and a second Cat 5e/6 cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.
| Feature |
Feature Value |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 1200 pixels |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
60 m |
| Audio system |
stereo |
| Electrostatic Discharge (ESD) protection |
15 kV |
| LED indicators |
Yes |
| Supported video modes |
1080i, 1080p |
| Bandwidth |
6.75 Gbit/s |
| Bandwidth |
225 MHz |
| HDCP |
Yes |
| Material |
Metal |
| 3D |
Yes |
| Plug and Play |
Yes |
| Impedance |
100 Ω |
| Product colour |
White |
| RJ-45 input ports |
2 |
| RJ-45 output ports |
2 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Video in |
1 |
| Video out |
1 |
| Audio input |
1 |
| Audio output |
1 |
| DC-in jack |
Yes |
| Operating voltage (transmitter) |
9 V |
| Operating voltage (receiver) |
9 V |
| Power consumption (transmitter) (max) |
2.9 W |
| Power consumption (receiver) (max) |
2.9 W |
| External power adapter |
Yes |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Receiver dimensions (WxDxH) |
68.6 x 49.8 x 26.9 mm |
| Receiver weight |
180 g |
| Transmitter dimensions (WxDxH) |
68.6 x 49.8 x 26.9 mm |
| Transmitter weight |
180 g |
| AC adapter included |
Yes |
| Manual |
Yes |
| Sustainability certificates |
RoHS |
