Description

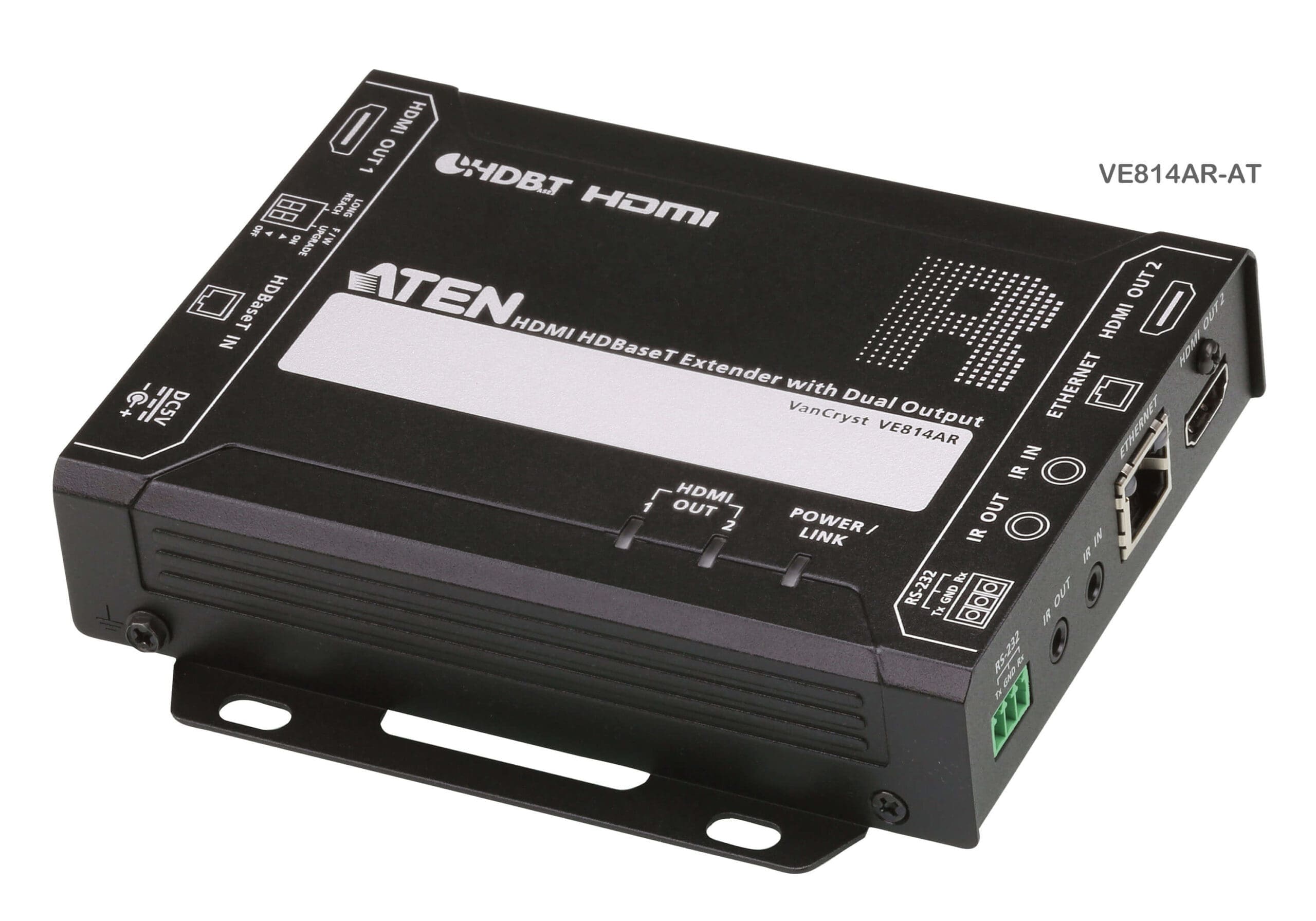

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

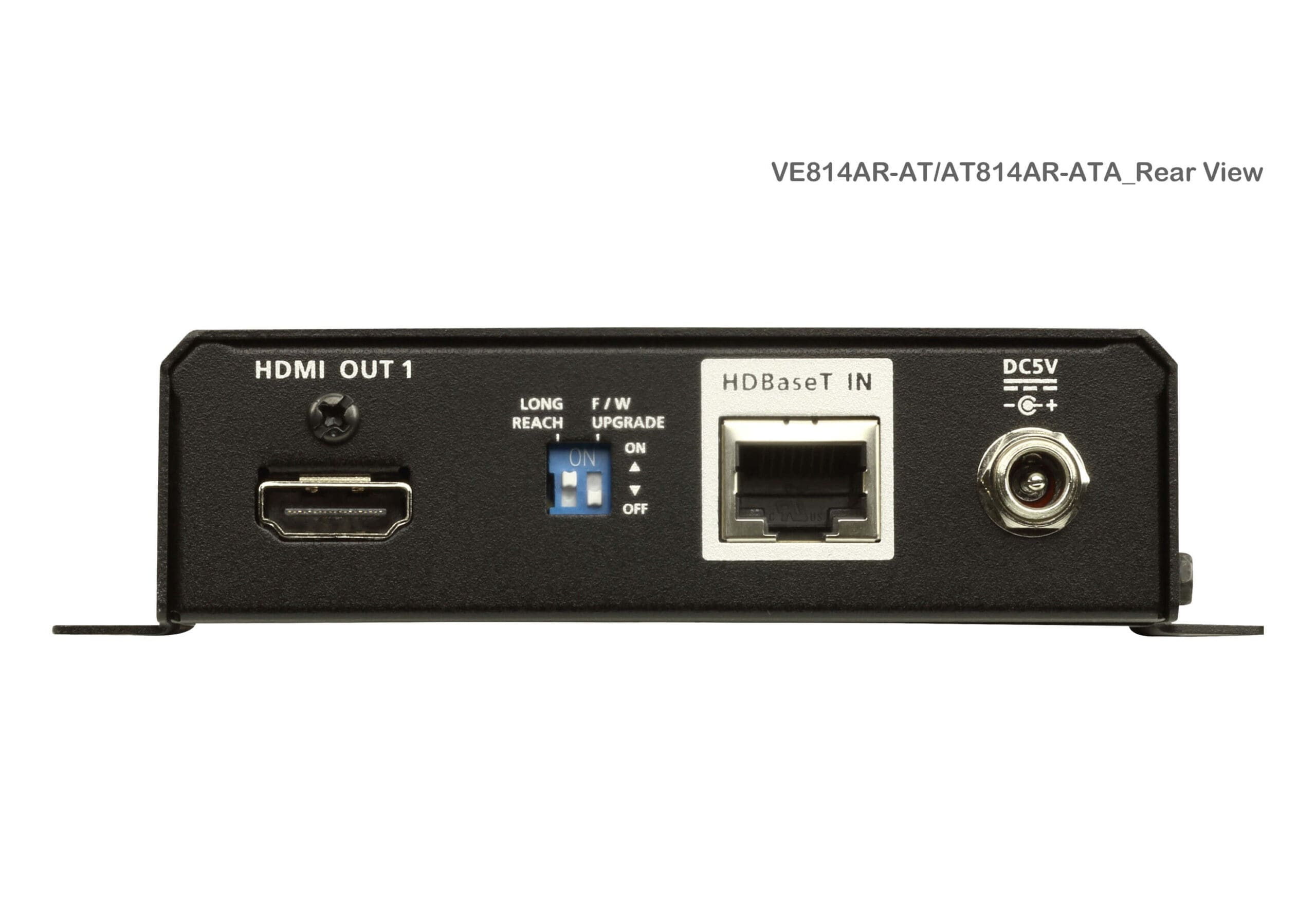

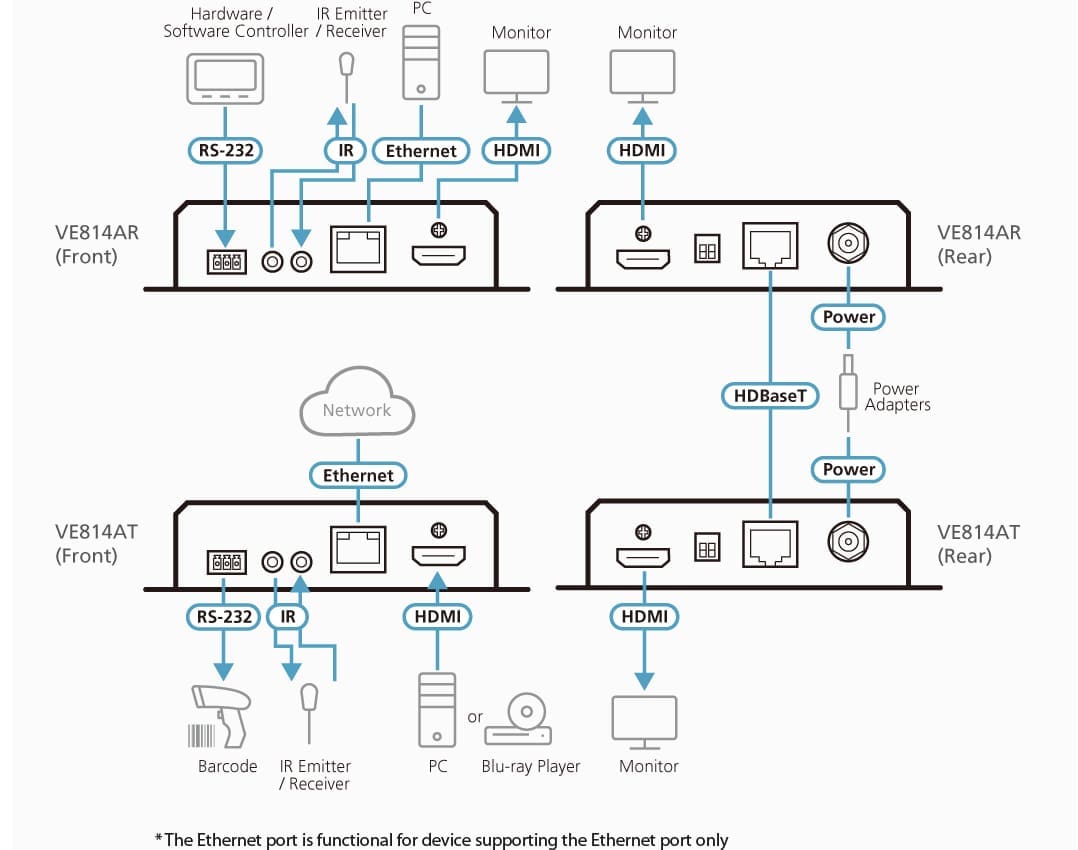

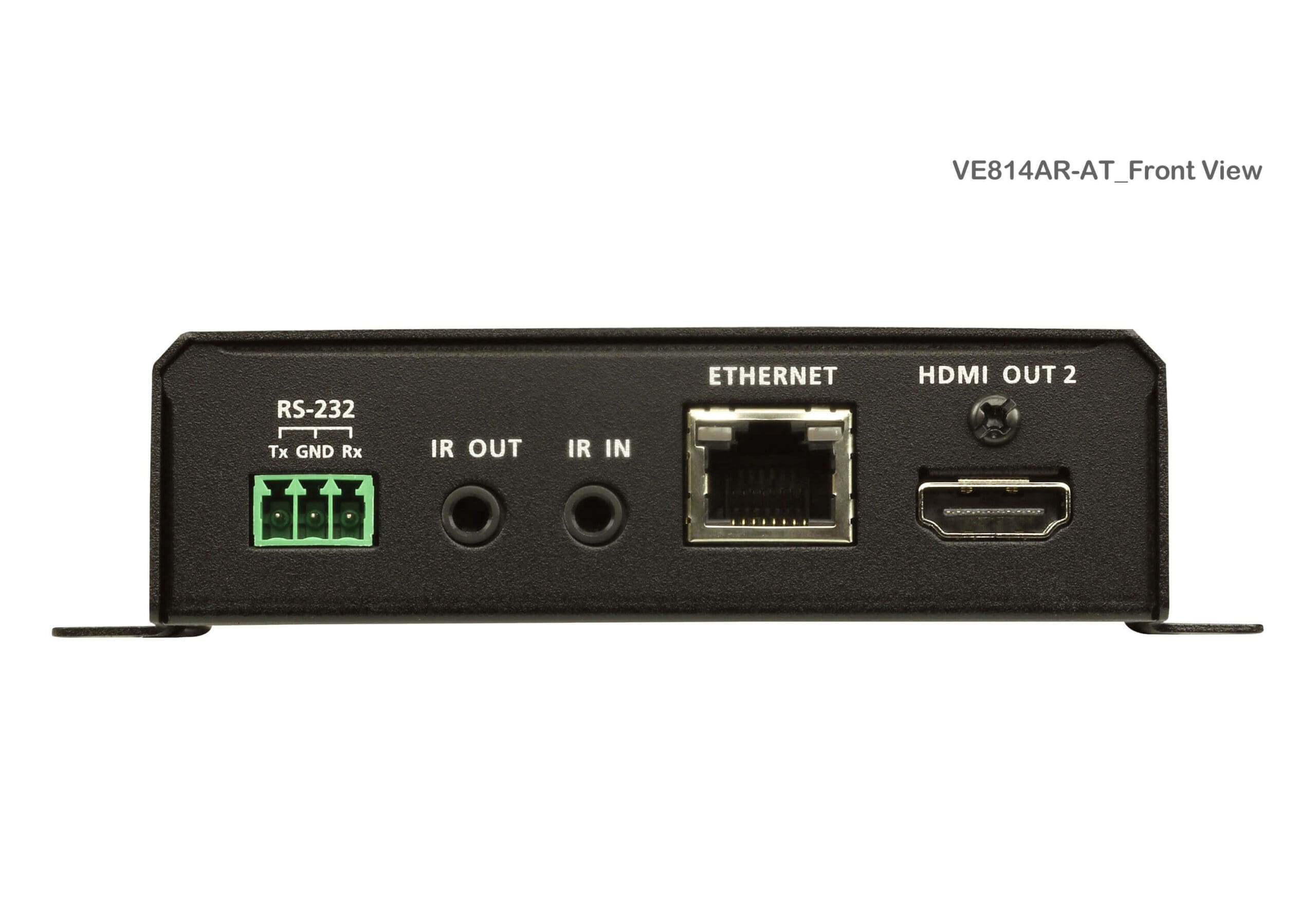

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
| Feature |
Feature Value |
| Type |
AV receiver |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
150 m |
| Bandwidth |
10.2 Gbit/s |
| Bandwidth |
340 MHz |
| HDCP |
Yes |
| Material |
Metal |
| 3D |
Yes |
| Rack mounting |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| Plug and Play |
Yes |
| Impedance |
100 Ω |
| Product colour |
Black |
| Connectivity technology |
Wired |
| RJ-45 output ports |
1 |
| HDBaseT port |
Yes |
| Number of HDMI outputs |
2 |
| Remote (IR) output |
1 |
| Audio RCA outputs |
1 |
| DC-in jack |
Yes |
| Operating voltage |
5 V |
| Power consumption (receiver) (max) |
7.9 W |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Receiver dimensions (WxDxH) |
123 x 140.4 x 30 mm |
| Receiver weight |
470 g |
| AC adapter included |
Yes |
| Manual |
Yes |
| Sustainability certificates |
RoHS |
