ATEN VE901R AV extender AV receiver Black
Lock Added: N/A
1 in stock.
HDBaseT Lite receiver over single Cat5, 70M, Displayport
Related products
Description

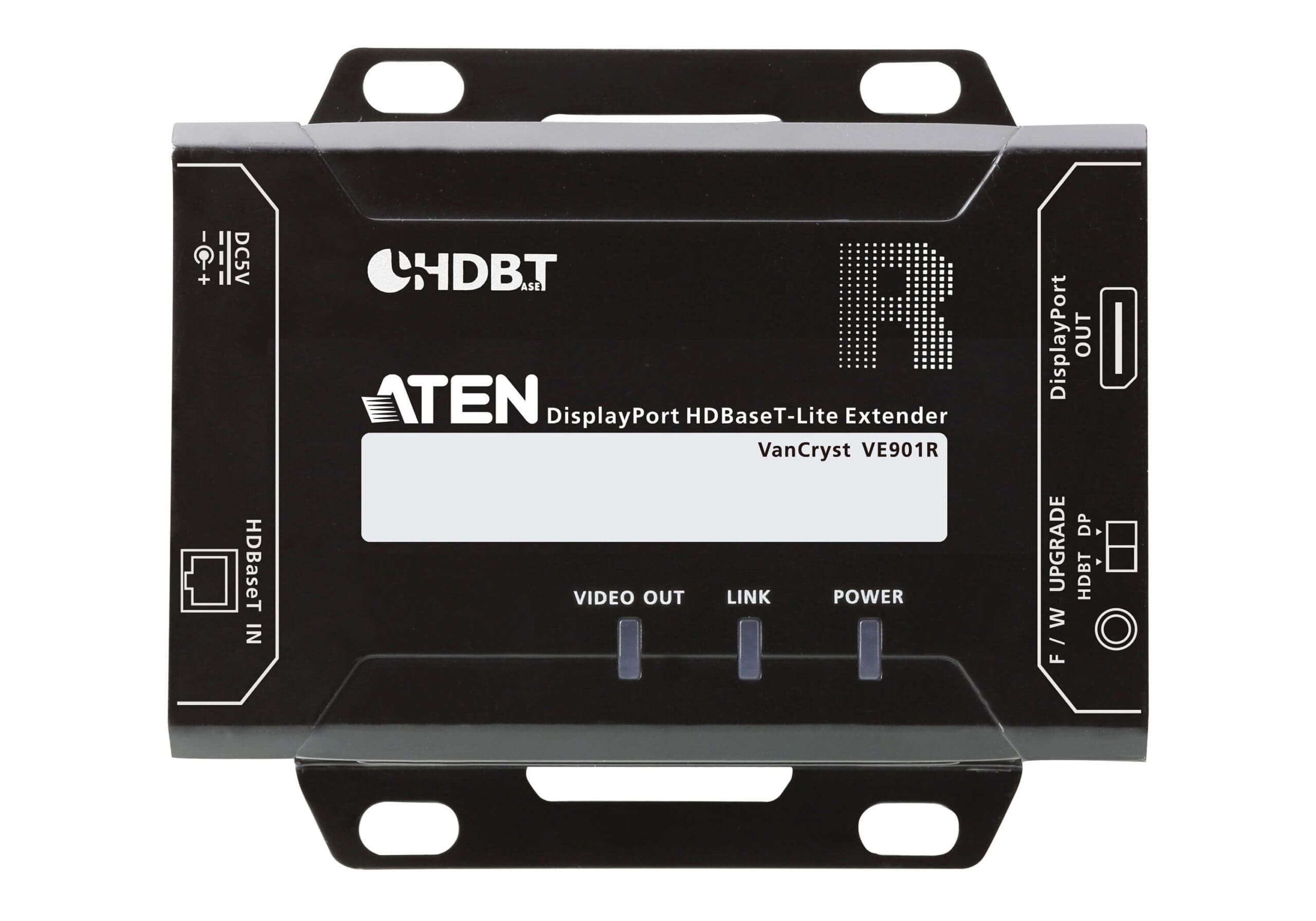

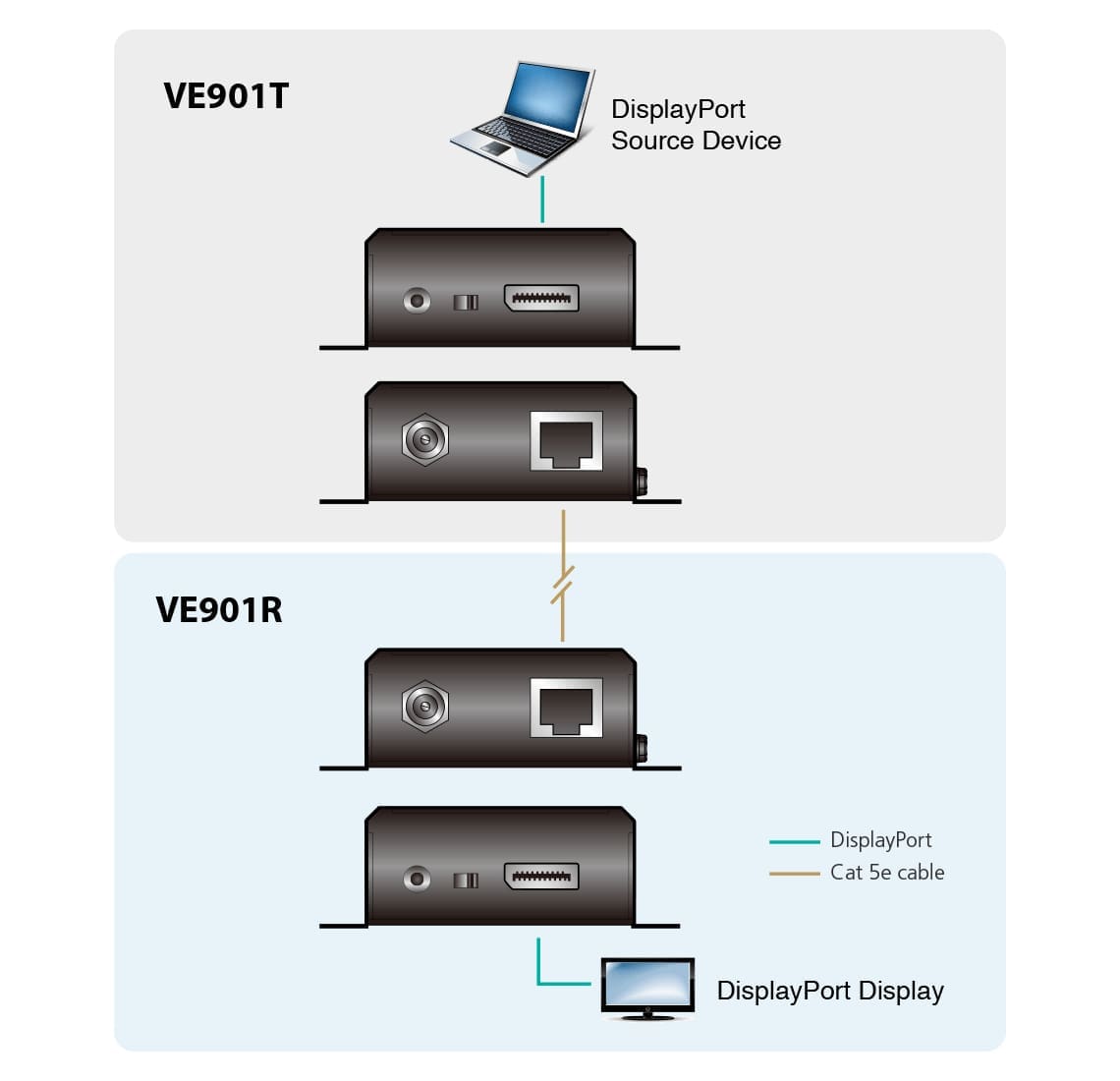

The VE901R DisplayPort HDBaseT-Lite Receiver is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901R DisplayPort HDBaseT-Lite Receiver is the perfect choice for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901R can be installed in a multitude of locations while ensuring peace of mind with its reliability.
| Feature | Feature Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| LED indicators | Yes |
| Supported video modes | 1080p, 2160p |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT certified | Yes |
| HDBaseT port | Yes |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Weight | 270 g |
| Receiver dimensions (WxDxH) | 87 x 100.6 x 30 mm |
| Receiver weight | 270 g |
| Sustainability certificates | RoHS |
Additional information
| Type | AV receiver |
|---|---|
| Cable types supported | Cat5e, Cat6, Cat6a |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Material | Metal |
| Product colour | Black |
| HDBaseT port | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Receiver dimensions (WxDxH) | 87 x 100.6 x 30 mm |
| Sustainability certificates | RoHS |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p, 2160p |
| HDCP | Yes |
| Impedance | 100 Ω |
| HDBaseT certified | Yes |
| DC-in jack | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Weight | 270 g |
| Receiver weight | 270 g |
