ATEN 16 x 16 Modular Matrix Switch

Part No:

VM1600A

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VM1600A 16×16 Modulr Digtl Matrix Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VM1600A Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

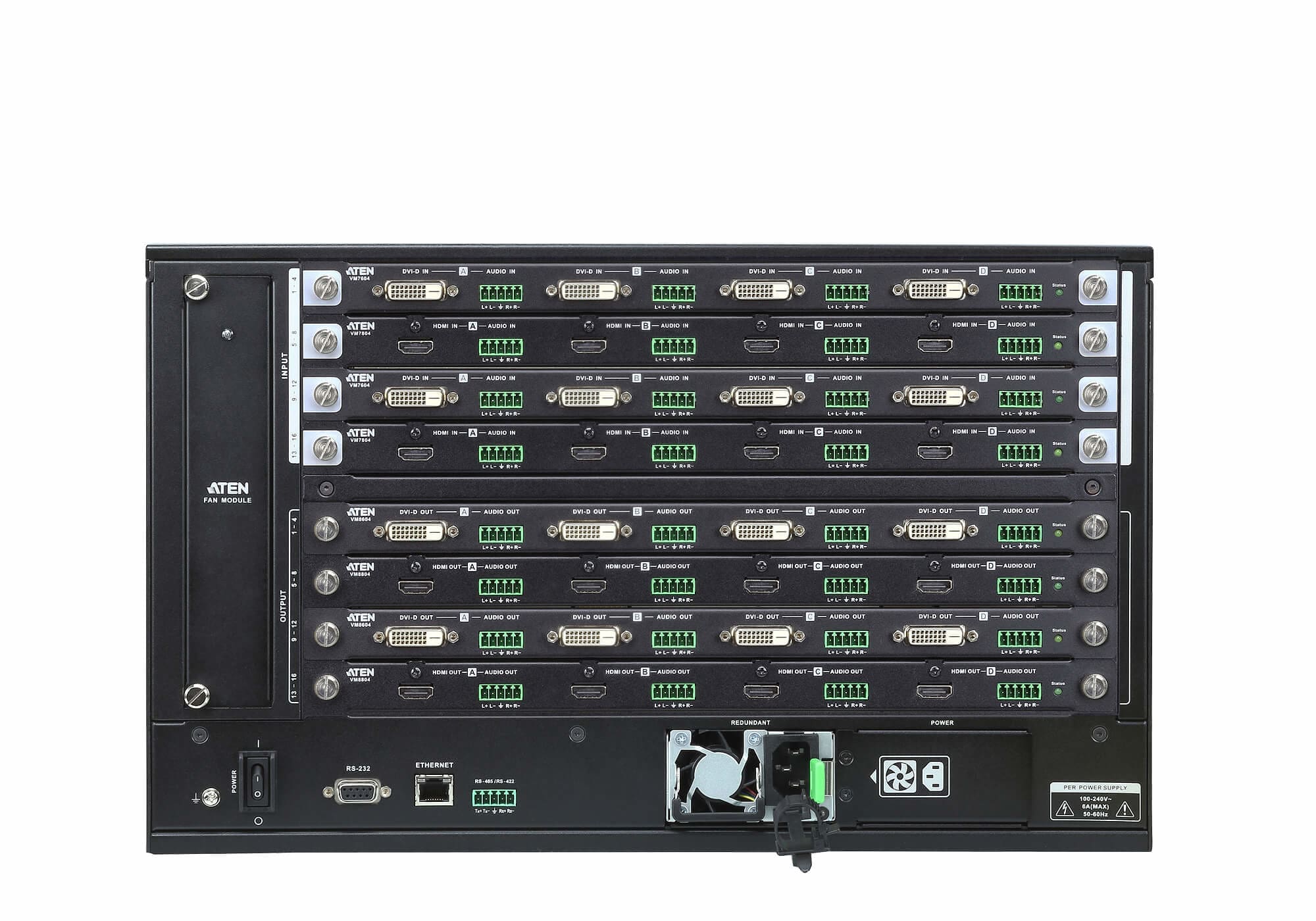

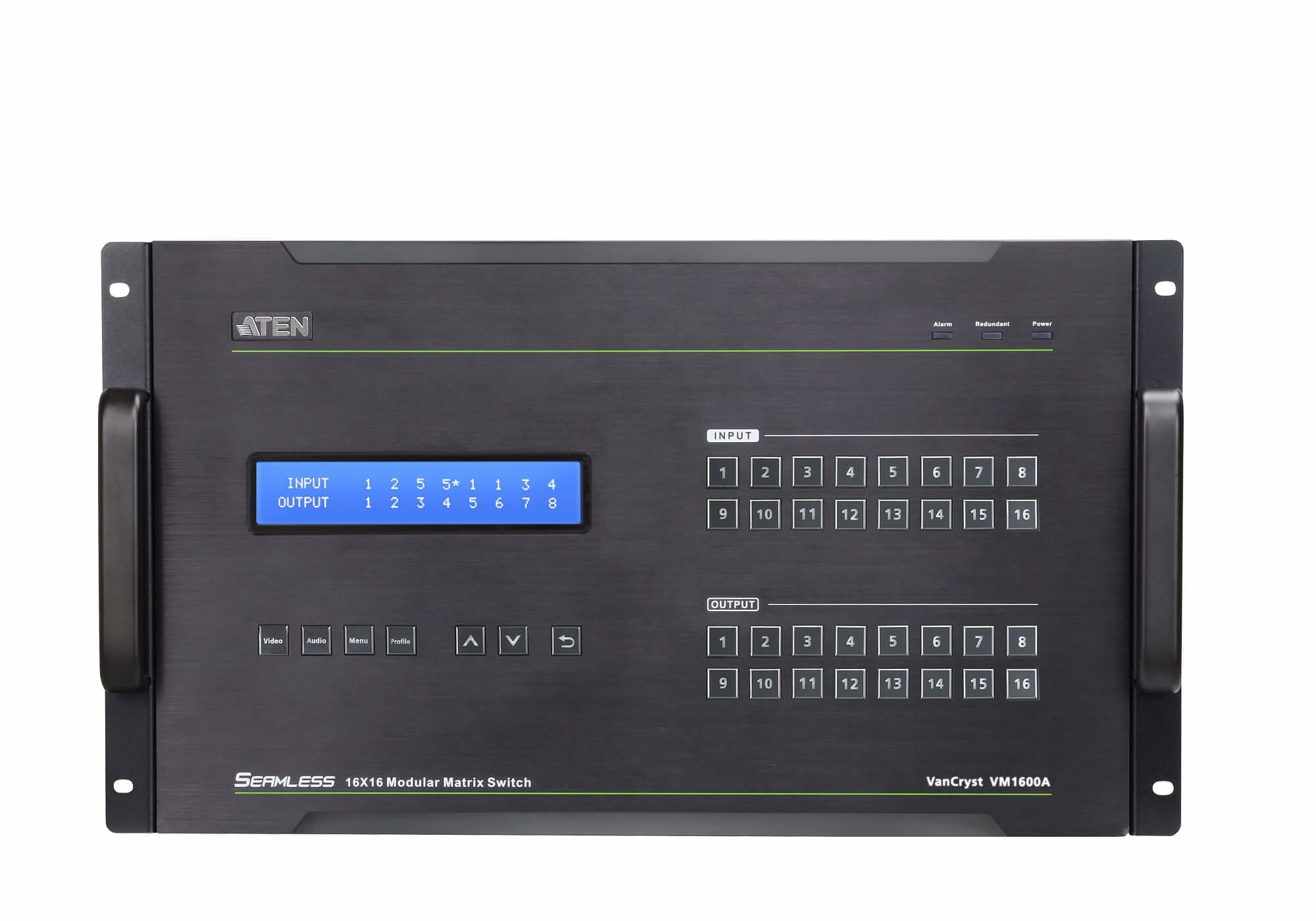

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
1x VM1600A Modular Matrix Switch
1x LIN2-418K-E12G Power Cord
1x Terminal Block connector
1x VM-FAN554 Fan Module (pluggable)
1x VM-PWR460 Power Module (pluggable)
1x User Instructions

Feature Feature Value
Product type Modular AV matrix switchers
Data transfer rate 15.2 Gbit/s
EDID management Yes
Housing colour Black
Housing material Metal
Rack mounting Yes
Rack capacity 6U
LED indicators Yes
Built-in display Yes
RJ-45 input ports 1
RS-232 ports 1
Power consumption (max) 460 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 6 A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Products per master (outer) case 1 pc(s)
Master (outer) case gross weight 18.3 kg
Master (outer) case length 579 mm
Master (outer) case width 518 mm
Master (outer) case height 390 mm
Master (outer) case net weight 17.6 kg
Harmonized System (HS) code 85299097
Width 466.6 mm
Depth 482 mm
Height 265.9 mm
Weight 17.6 kg
Package width 518 mm
Package depth 579 mm
Package height 390 mm
Package weight 18.3 kg
Cables included AC

Additional information

Product type

Modular AV matrix switchers
EDID management

Yes
Housing material

Metal
Rack capacity

6U
Built-in display

Yes
RS-232 ports

1
AC input voltage

100 – 240 V
Input current

6 A
Storage temperature (T-T)

-20 – 60 °C
Master (outer) case length

579 mm
Master (outer) case height

390 mm
Harmonized System (HS) code

85299097
Depth

482 mm
Weight

17.6 kg
Package depth

579 mm
Package weight

18.3 kg
Data transfer rate

15.2 Gbit/s
Housing colour

Black
Rack mounting

Yes
LED indicators

Yes
RJ-45 input ports

1
Power consumption (max)

460 W
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 40 °C
Master (outer) case width

518 mm
Width

466.6 mm
Height

265.9 mm
Package width

518 mm
Package height

390 mm
Cables included

AC

Brand

Aten
