2×2 True 4K HDMI Matrix Switch

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VM0202HB Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

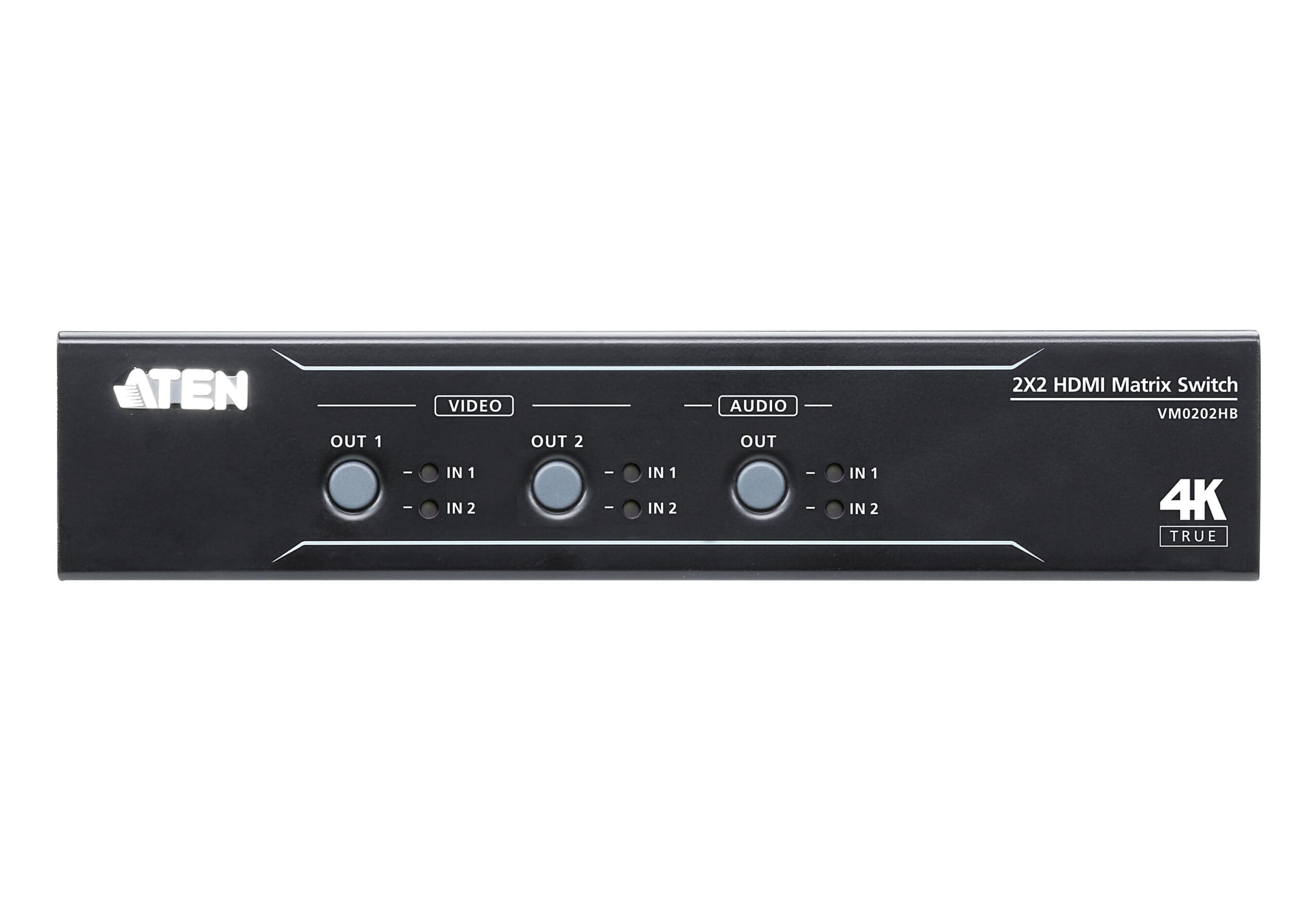

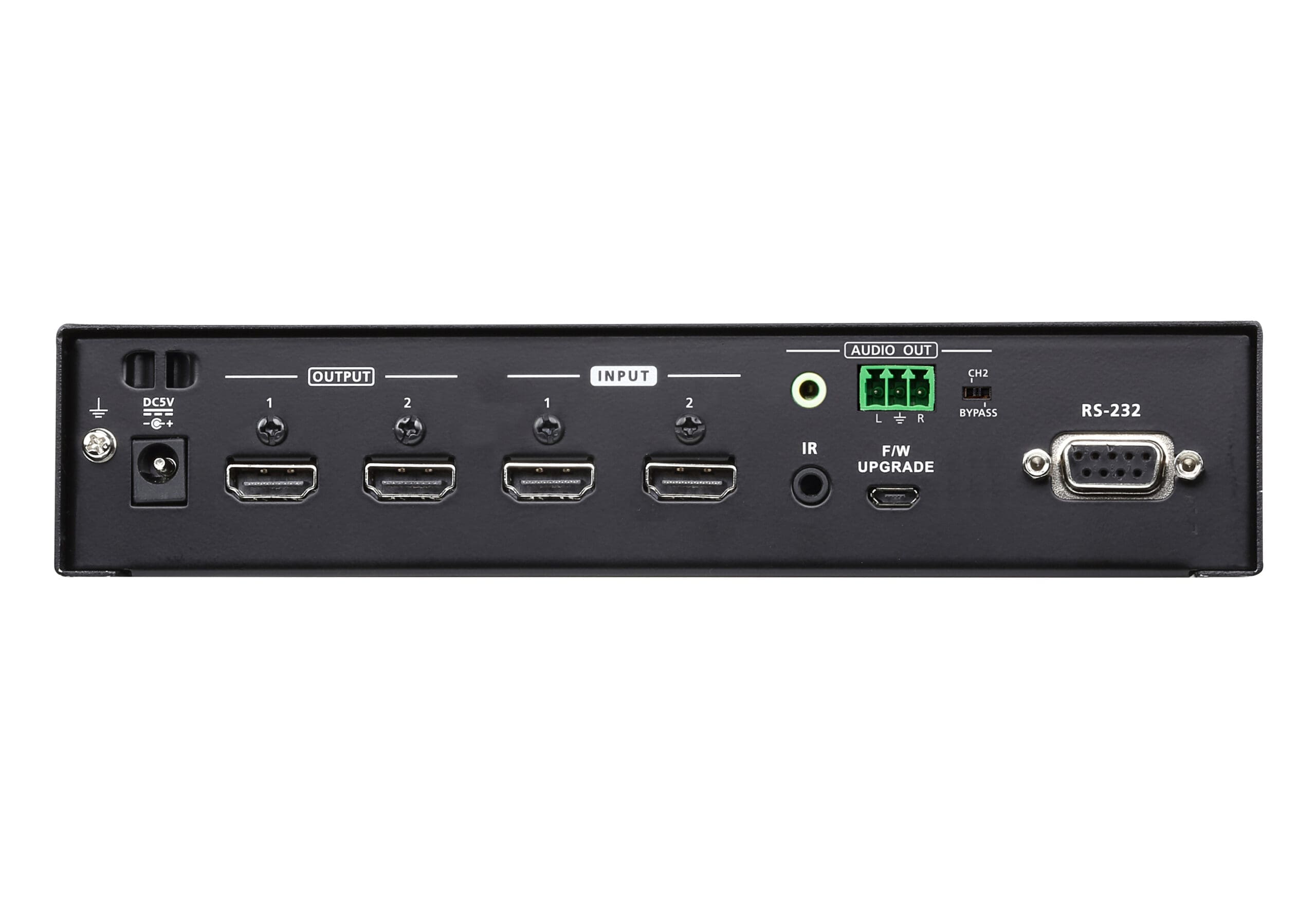

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions

Feature Feature Value
Product type AV matrix switcher
Data transfer rate 18 Gbit/s
Maximum pixel clock 600 MHz
Maximum resolution 4096 x 2160 pixels
HDCP Yes
HDCP version 2.2
3D Yes
Firmware upgradeable Yes
Extended display identification data (EDID) Yes
Supported resolutions 4096 x 2160, 3840 x 2160
Housing colour Black
Housing material Metal
Rack mounting Yes
Control type Buttons
LED indicators Yes
Remote control included Yes
Built-in display No
HDMI input ports quantity 2
HDMI output ports quantity 2
USB connector type Micro-USB
USB ports quantity 1
RS-232 ports 1
Remote (IR) input 1
DC-in jack Yes
Power consumption (typical) 2.47 W
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Products per master (outer) case 5 pc(s)
Master (outer) case gross weight 5.25 kg
Master (outer) case length 325 mm
Master (outer) case width 250 mm
Master (outer) case height 175 mm
Master (outer) case net weight 4.25 kg
Harmonized System (HS) code 85299097
Width 200 mm
Depth 76 mm
Height 42 mm
Weight 850 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 1 kg
Rack mount kit Yes
Quick start guide Yes
AC adapter included Yes
IR receiver included Yes

Additional information

Product type

AV matrix switcher
Maximum pixel clock

600 MHz
HDCP

Yes
3D

Yes
Housing colour

Black
Rack mounting

Yes
LED indicators

Yes
Built-in display

No
HDMI output ports quantity

2
USB ports quantity

1
Remote (IR) input

1
Power consumption (typical)

2.47 W
Storage temperature (T-T)

-20 – 60 °C
Master (outer) case width

250 mm
Width

200 mm
Height

42 mm
Package width

59 mm
Package height

160 mm
Rack mount kit

Yes
AC adapter included

Yes
Data transfer rate

18 Gbit/s
Maximum resolution

4096 x 2160 pixels
HDCP version

2.2
Firmware upgradeable

Yes
Supported resolutions

4096 x 2160, 3840 x 2160
Housing material

Metal
Control type

Buttons
Remote control included

Yes
HDMI input ports quantity

2
USB connector type

Micro-USB
RS-232 ports

1
DC-in jack

Yes
Operating temperature (T-T)

0 – 40 °C
Master (outer) case length

325 mm
Master (outer) case height

175 mm
Harmonized System (HS) code

85299097
Depth

76 mm
Weight

850 g
Package depth

239 mm
Package weight

1 kg
Quick start guide

Yes
IR receiver included

Yes

Brand

Aten
