ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control

Part No:

VS481B

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VS481B-AT-E

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VS481B Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

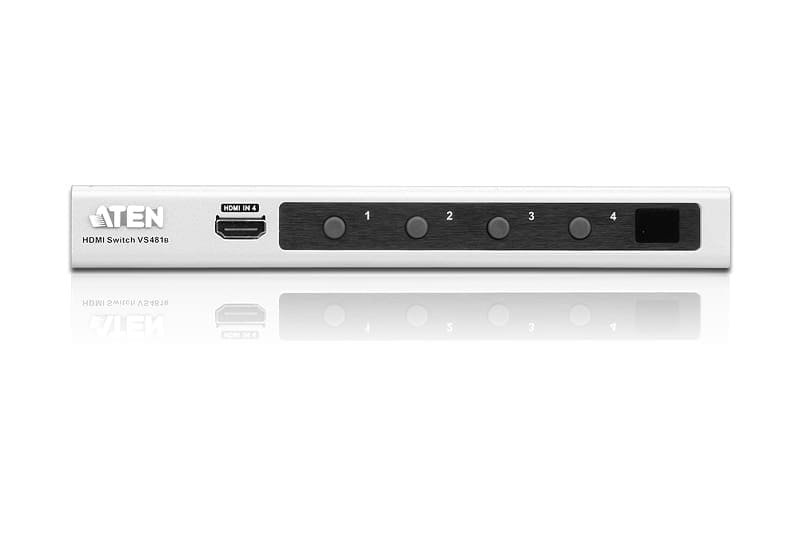

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Feature Feature Value
Video port type HDMI
HDMI ports quantity 5
HDMI in 4
Number of HDMI outputs 1
RS-232 ports 1
DC-in jack Yes
Material Metal
Product colour Silver
Consumer Electronics Control (CEC) support Yes
HDCP Yes
Maximum refresh rate 60 Hz
Maximum operating distance 15 m
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
LED indicators Yes
Bandwidth 340 MHz
Maximum resolution 4096 x 2160 pixels
3D Yes
HD type 4K Ultra HD
Dolby technologies DTS-HD Master Audio, Dolby TrueHD
Input impedance 100 Ω
Output impedance 100 Ω
HDCP version 2.2
Power consumption (typical) 1.76 W
Width 82.5 mm
Depth 200 mm
Height 25 mm
Weight 659 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 822 g
Quantity per pack 1 pc(s)
Remote control included Yes
User guide Yes
Cables included HDMI
AC adapter included Yes
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Harmonized System (HS) code 85176990
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 178 mm
Master (outer) case gross weight 8.96 kg
Products per master (outer) case 10 pc(s)
Master (outer) case net weight 6.59 kg

Additional information

Video port type

HDMI
HDMI in

4
RS-232 ports

1
Material

Metal
Maximum refresh rate

60 Hz
LED indicators

Yes
Maximum resolution

4096 x 2160 pixels
HD type

4K Ultra HD
Input impedance

100 Ω
HDCP version

2.2
Width

82.5 mm
Height

25 mm
Package width

59 mm
Package height

160 mm
Quantity per pack

1 pc(s)
User guide

Yes
AC adapter included

Yes
Storage temperature (T-T)

-20 – 60 °C
Master (outer) case width

315 mm
Master (outer) case height

178 mm
HDMI ports quantity

5
Number of HDMI outputs

1
DC-in jack

Yes
Product colour

Silver
HDCP

Yes
Maximum operating distance

15 m
Bandwidth

10.2 Gbit/s, 340 MHz
3D

Yes
Dolby technologies

DTS-HD Master Audio, Dolby TrueHD
Output impedance

100 Ω
Power consumption (typical)

1.76 W
Depth

200 mm
Weight

659 g
Package depth

239 mm
Package weight

822 g
Remote control included

Yes
Cables included

HDMI
Operating temperature (T-T)

0 – 50 °C
Harmonized System (HS) code

85176990
Master (outer) case length

490 mm

Brand

Aten
