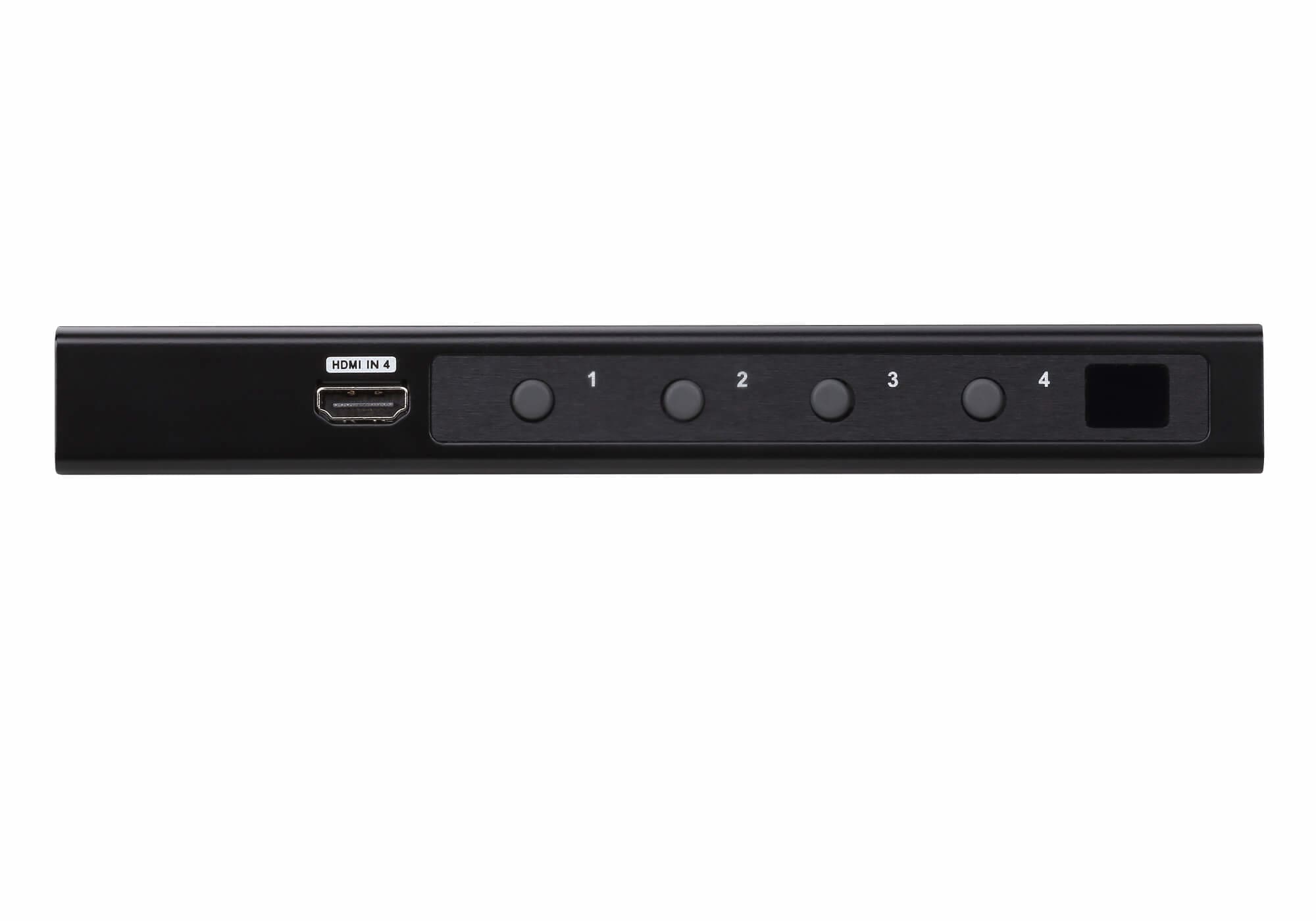

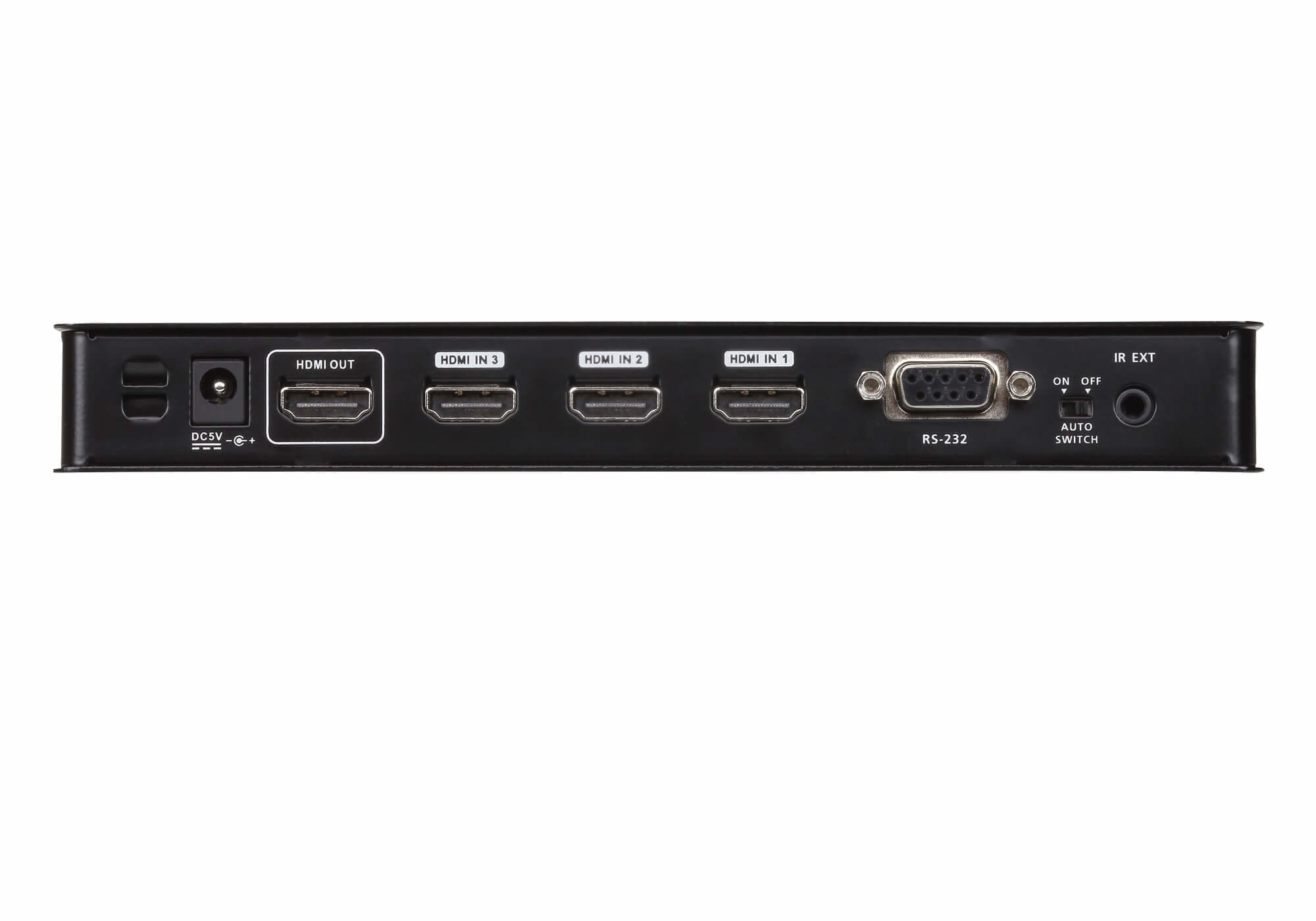

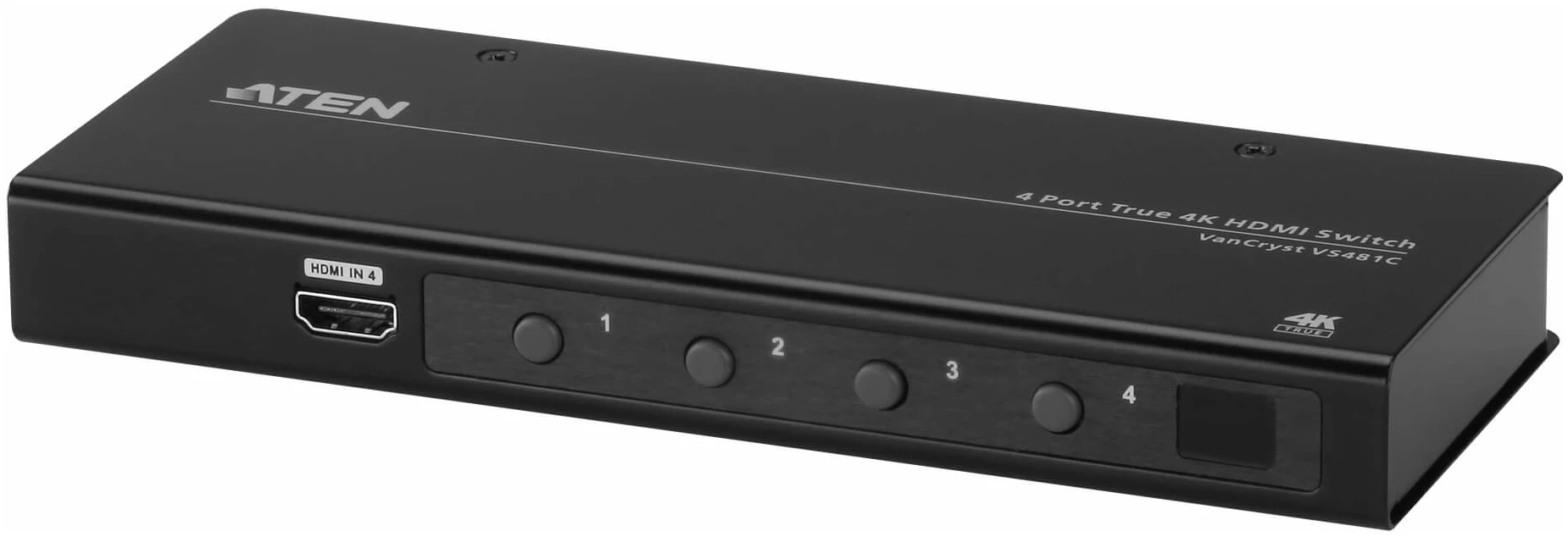

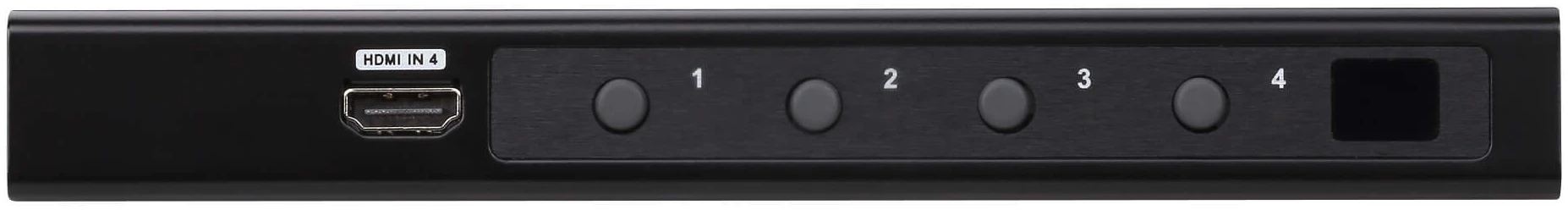

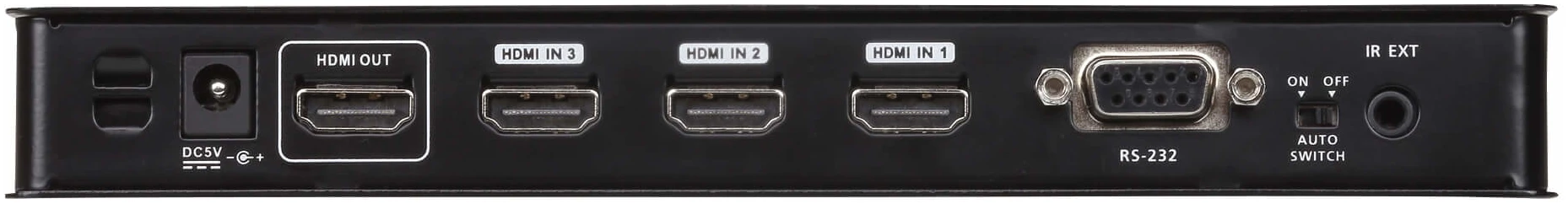

ATEN 4-Port True 4K HDMI Switch

Part No:

VS481C

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VS481C-AT-E

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VS481C Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions

Feature Feature Value
Video port type HDMI
HDMI ports quantity 5
HDMI version 2.0
HDMI in 4
Number of HDMI outputs 1
RS-232 ports 1
DC-in jack Yes
Material Metal
Product colour Black
Consumer Electronics Control (CEC) support Yes
Plug and Play Yes
HDCP Yes
Maximum refresh rate 60 Hz
Maximum operating distance 3 m
Bandwidth 18 Gbit/s
LED indicators Yes
Bandwidth 600 MHz
Maximum resolution 4096 x 2160 pixels
3D Yes
HD type HD
Colour depth 12 bit
Input impedance 100 Ω
Output impedance 100 Ω
HDCP version 2.2
Power consumption (typical) 0.924 W
Width 82.1 mm
Depth 200 mm
Height 25 mm
Weight 654 g
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 822 g
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Harmonized System (HS) code 85176990
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 178 mm
Master (outer) case gross weight 8.57 kg
Products per master (outer) case 10 pc(s)
Master (outer) case net weight 6.54 kg

Additional information

Video port type

HDMI
HDMI version

2.0
Number of HDMI outputs

1
DC-in jack

Yes
Product colour

Black
Plug and Play

Yes
Maximum refresh rate

60 Hz
Bandwidth

18 Gbit/s, 600 MHz
3D

Yes
Colour depth

12 bit
Output impedance

100 Ω
Power consumption (typical)

0.924 W
Depth

200 mm
Weight

654 g
Package depth

239 mm
Package weight

822 g
Storage temperature (T-T)

-20 – 60 °C
Harmonized System (HS) code

85176990
Master (outer) case length

490 mm
HDMI ports quantity

5
HDMI in

4
RS-232 ports

1
Material

Metal
HDCP

Yes
Maximum operating distance

3 m
LED indicators

Yes
Maximum resolution

4096 x 2160 pixels
HD type

HD
Input impedance

100 Ω
HDCP version

2.2
Width

82.1 mm
Height

25 mm
Package width

59 mm
Package height

160 mm
Operating temperature (T-T)

0 – 40 °C
Master (outer) case width

315 mm
Master (outer) case height

178 mm

Brand

Aten
