ATEN 4 Port True 4K HDMI Switch with Dual

Part No:

VS482B

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

VS482B 4Port 4K HDMI Switch Dual Output

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VS482B Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

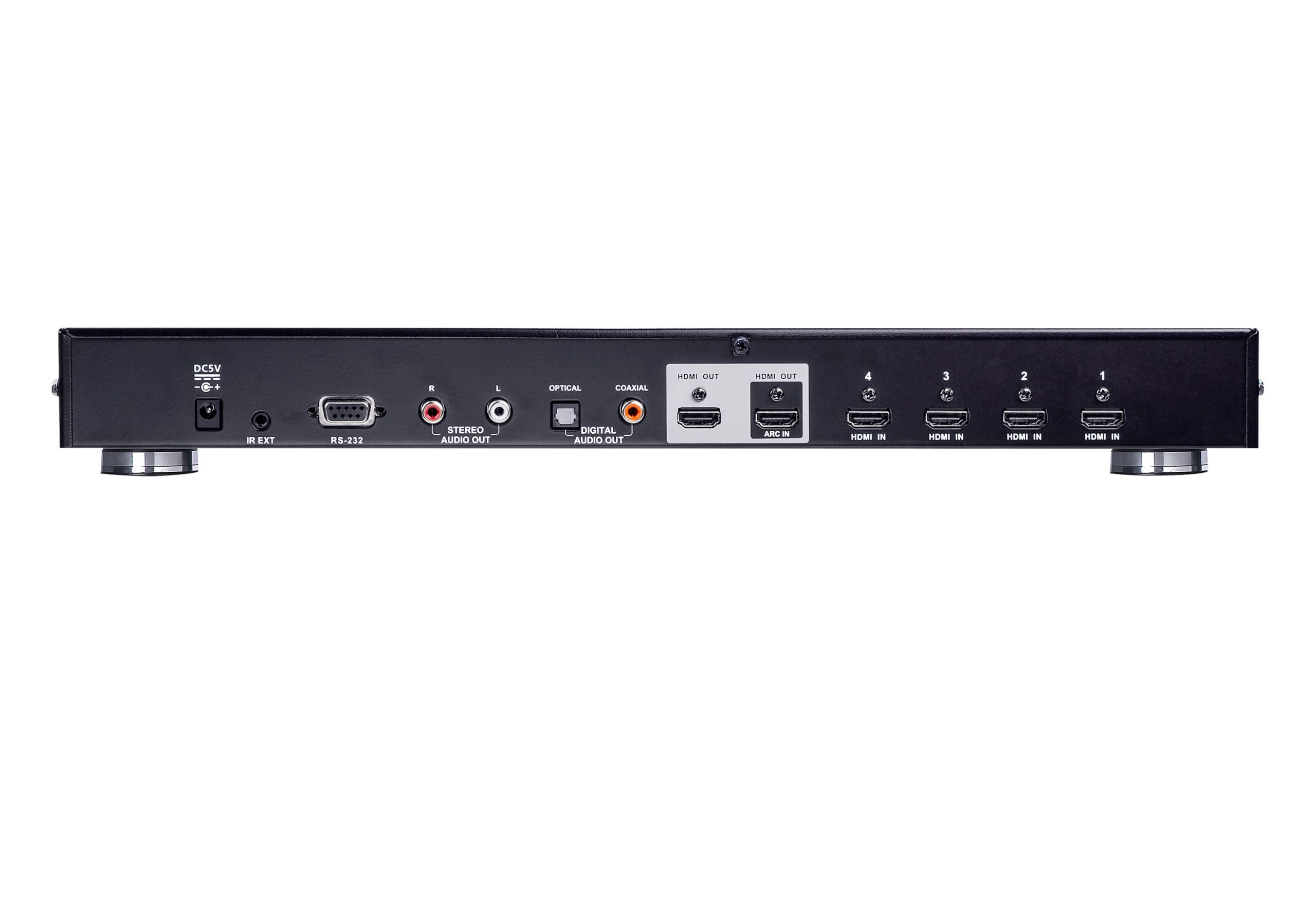

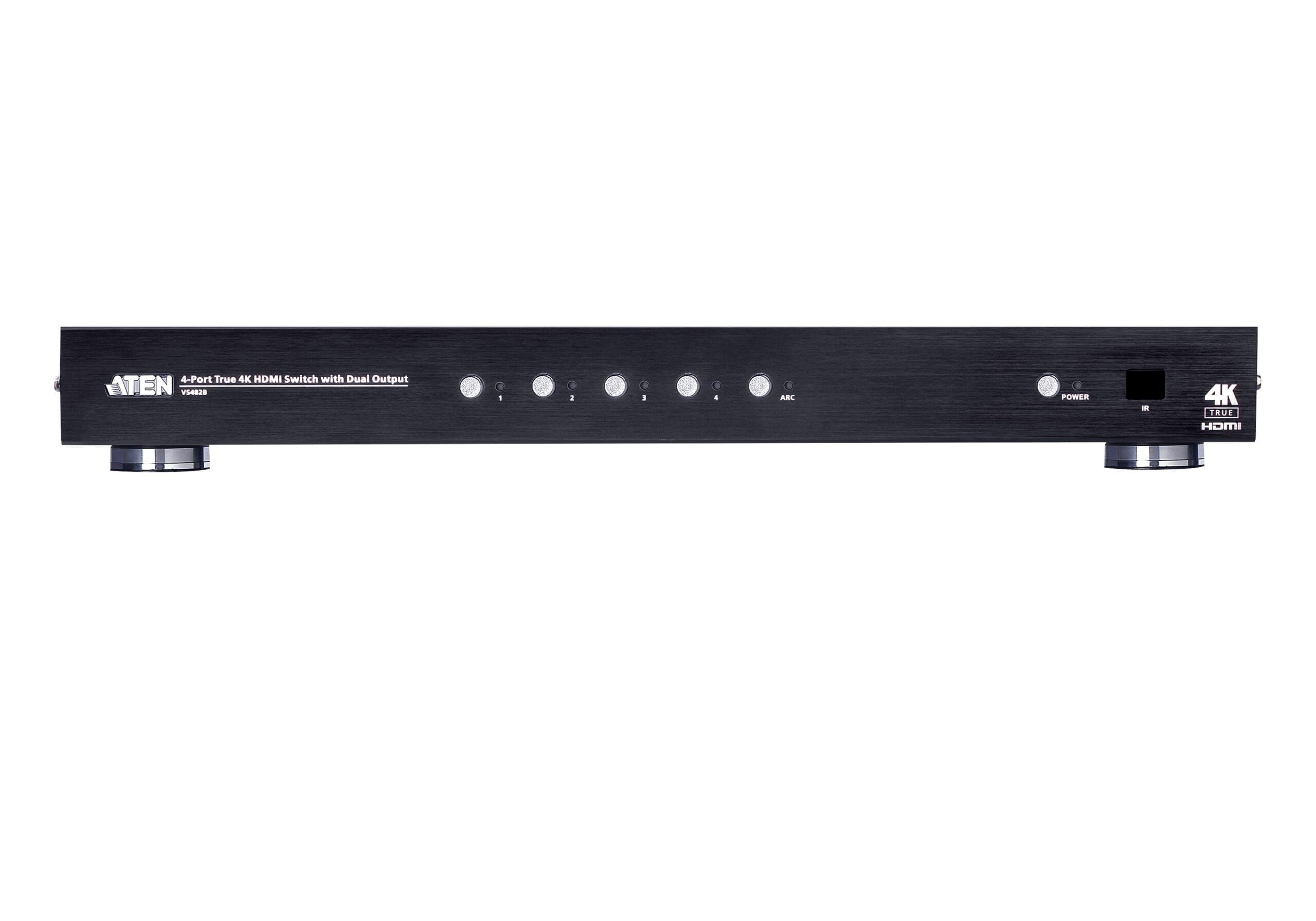

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions

Feature Feature Value
Video port type HDMI
HDMI ports quantity 6
HDMI version 2.0
HDMI in 4
Number of HDMI outputs 2
RS-232 ports 1
DC-in jack Yes
Material Metal
Product colour Black
Consumer Electronics Control (CEC) support Yes
HDCP Yes
Maximum refresh rate 60 Hz
Maximum operating distance 3 m
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 18 Gbit/s
LED indicators Yes
Bandwidth 600 MHz
Maximum resolution 4096 x 2160 pixels
3D Yes
HD type 4K Ultra HD
Input impedance 100 Ω
Output impedance 100 Ω
HDCP version 2.2
Power consumption (typical) 3.29 W
Width 158.8 mm
Depth 437.2 mm
Height 44 mm
Weight 2.16 kg
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 2.84 kg
Mounting kit Yes
AC adapter included Yes
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Sustainability certificates RoHS
Harmonized System (HS) code 85176990
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 9.27 kg
Products per master (outer) case 3 pc(s)
Master (outer) case net weight 6.48 kg

Additional information

Video port type

HDMI
HDMI version

2.0
Number of HDMI outputs

2
DC-in jack

Yes
Product colour

Black
HDCP

Yes
Maximum operating distance

3 m
Bandwidth

18 Gbit/s, 600 MHz
3D

Yes
Input impedance

100 Ω
HDCP version

2.2
Width

158.8 mm
Height

44 mm
Package width

116 mm
Package height

233 mm
Mounting kit

Yes
Operating temperature (T-T)

0 – 40 °C
Harmonized System (HS) code

85176990
Master (outer) case length

565 mm
HDMI ports quantity

6
HDMI in

4
RS-232 ports

1
Material

Metal
Maximum refresh rate

60 Hz
LED indicators

Yes
Maximum resolution

4096 x 2160 pixels
HD type

4K Ultra HD
Output impedance

100 Ω
Power consumption (typical)

3.29 W
Depth

437.2 mm
Weight

2.16 kg
Package depth

540 mm
Package weight

2.84 kg
AC adapter included

Yes
Storage temperature (T-T)

-20 – 60 °C
Sustainability certificates

RoHS
Master (outer) case width

375 mm
Master (outer) case height

258 mm

Brand

Aten
