VP2730 7×3 Video Pres Switch w/Streaming

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VP2730 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

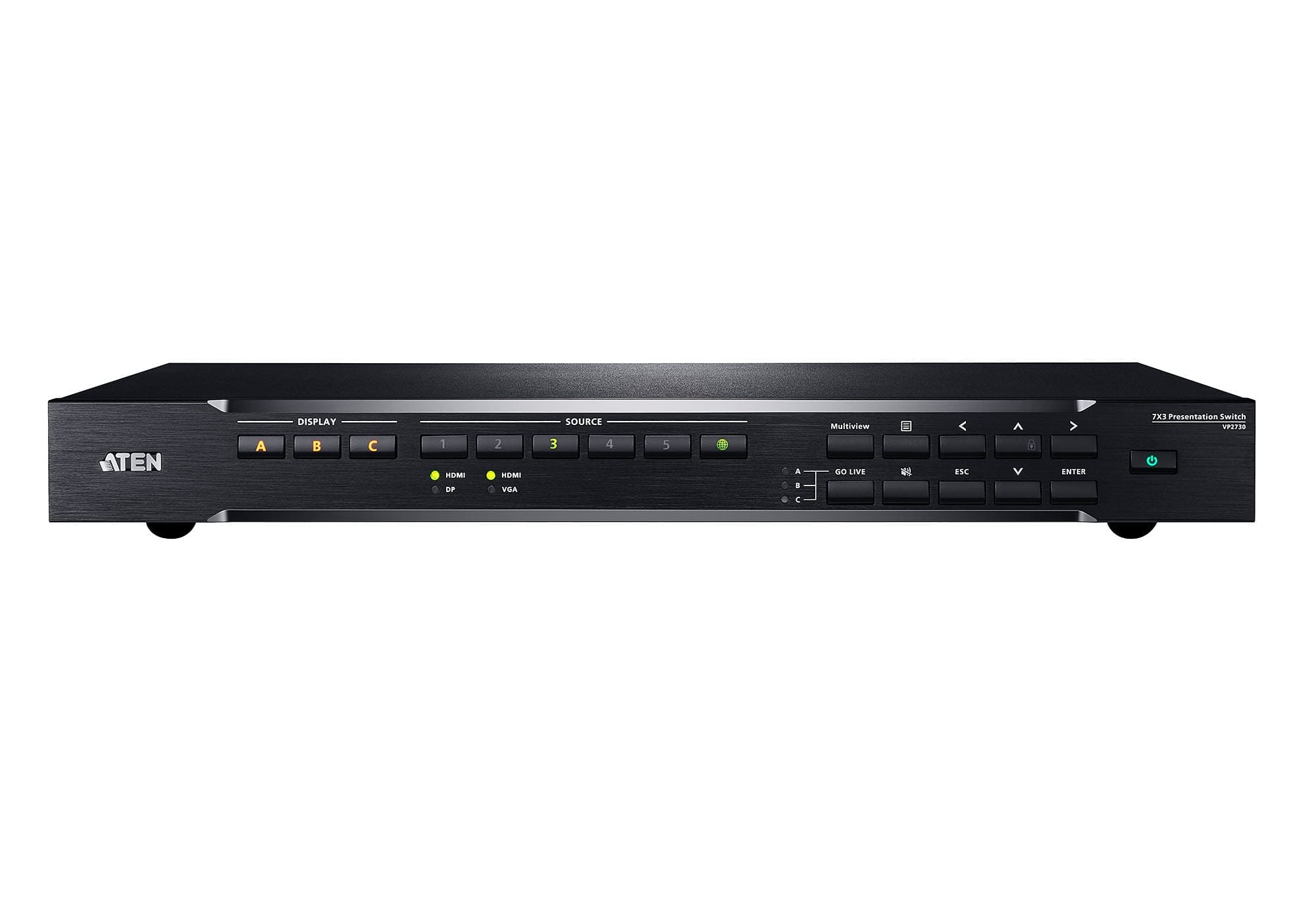

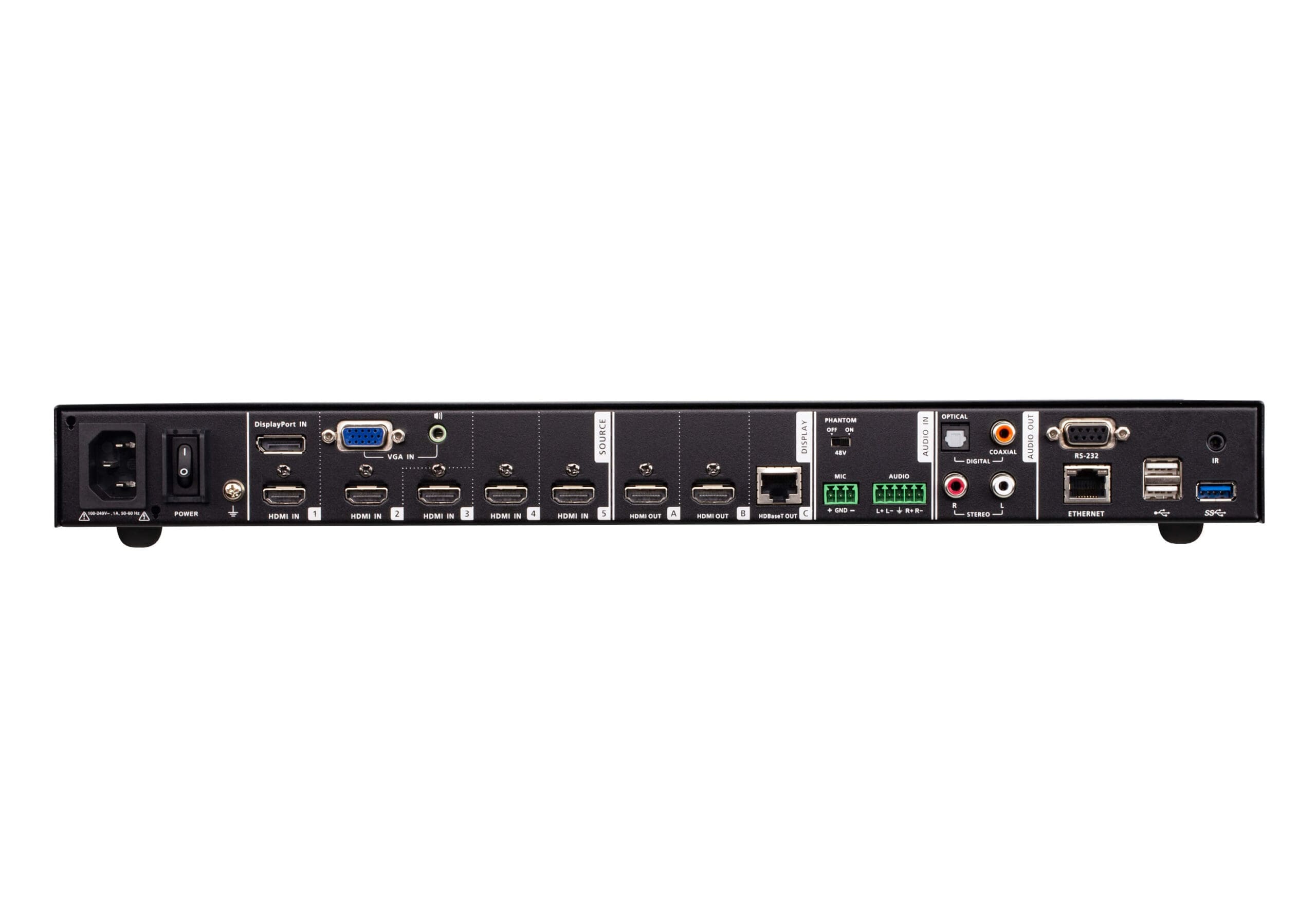

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.
1x VP2730 7 x 3 Presentation Matrix Switch with Streaming, HDBaseT
1x IR Receiver
1x IR Remote Control
1x Power Cord
2x Terminal Blocks
4x Foot Pads
1x User Instructions

Feature Feature Value
Video port type HDMI
HDMI ports quantity 7
HDMI in 5
Number of HDMI outputs 2
VGA (D-Sub) input ports 1
DisplayPorts quantity 1
Digital audio coaxial out 1
RJ-45 output ports 1
RS-232 ports 1
Material Metal
Product colour Black
Consumer Electronics Control (CEC) support Yes
Extended display identification data (EDID) Yes
HDCP Yes
Maximum refresh rate 60 Hz
Rack mounting Yes
Supported video modes 1080p
LED indicators Yes
Maximum resolution 1920 x 1200 pixels
Built-in speaker(s) No
Remote control type IR
Rack capacity 1U
HDCP version 1.4
AC input voltage 100 – 240 V
AC adapter frequency 50/60 Hz
AC adapter input current 1 A
Power consumption (max) 28.5 W
Width 262.8 mm
Depth 432.4 mm
Height 44 mm
Weight 3.9 kg
Package width 338 mm
Package depth 515 mm
Package height 155 mm
Package weight 5.32 kg
Quantity per pack 1 pc(s)
Power cord included Yes
Remote control included Yes
User guide Yes
Cables included AC
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Sustainability certificates RoHS
Harmonized System (HS) code 85176990
Master (outer) case width 338 mm
Master (outer) case length 515 mm
Master (outer) case height 155 mm
Master (outer) case gross weight 5.32 kg
Products per master (outer) case 1 pc(s)
Master (outer) case net weight 3.9 kg

Additional information

Video port type

HDMI
HDMI in

5
VGA (D-Sub) input ports

1
Digital audio coaxial out

1
RS-232 ports

1
Product colour

Black
Maximum refresh rate

60 Hz
Supported video modes

1080p
Maximum resolution

1920 x 1200 pixels
Remote control type

IR
HDCP version

1.4
AC adapter frequency

50-60 Hz
Power consumption (max)

28.5 W
Depth

432.4 mm
Weight

3.9 kg
Package depth

515 mm
Package weight

5.32 kg
Power cord included

Yes
User guide

Yes
Operating temperature (T-T)

0 – 40 °C
Harmonized System (HS) code

85176990
Master (outer) case length

515 mm
HDMI ports quantity

7
Number of HDMI outputs

2
DisplayPorts quantity

1
RJ-45 output ports

1
Material

Metal
HDCP

Yes
Rack mounting

Yes
LED indicators

Yes
Built-in speaker(s)

No
Rack capacity

1U
AC input voltage

100 – 240 V
AC adapter input current

1 A
Width

262.8 mm
Height

44 mm
Package width

338 mm
Package height

155 mm
Quantity per pack

1 pc(s)
Remote control included

Yes
Cables included

AC
Storage temperature (T-T)

-20 – 60 °C
Sustainability certificates

RoHS
Master (outer) case width

338 mm
Master (outer) case height

155 mm

Brand

Aten
