Description

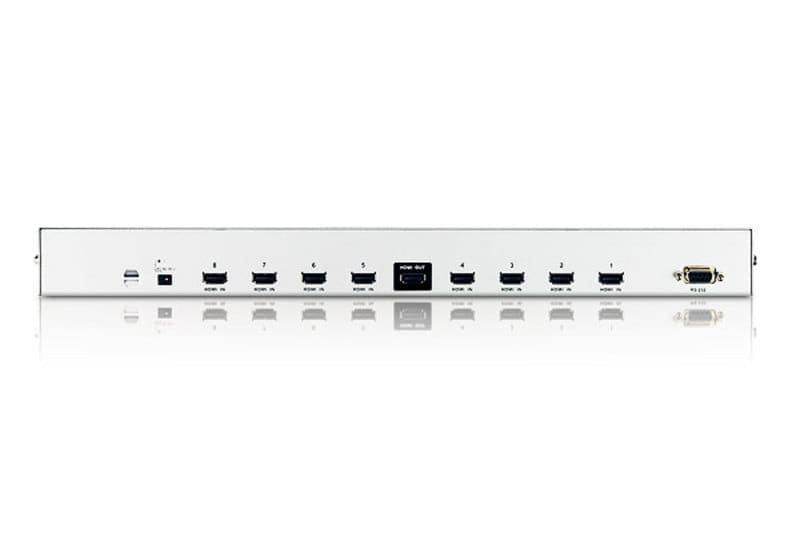

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

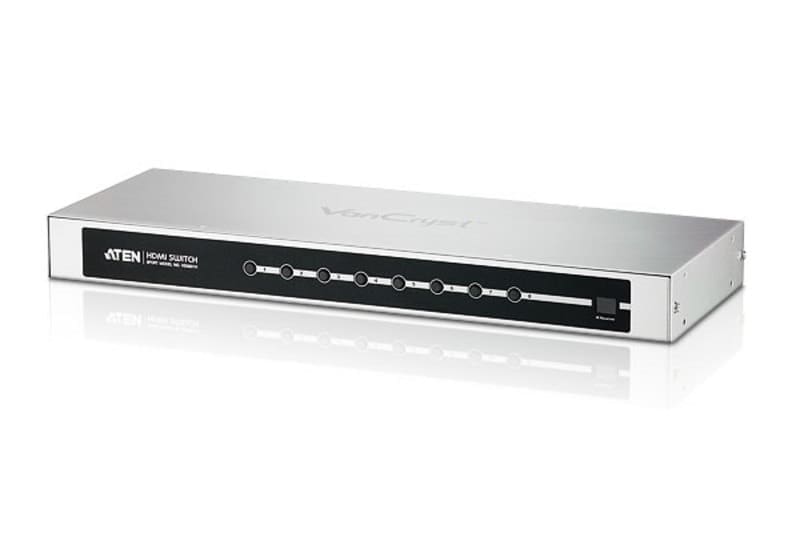

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H’s built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
| Feature |
Feature Value |
| Video port type |
HDMI |
| HDMI ports quantity |
9 |
| HDMI in |
8 |
| Number of HDMI outputs |
1 |
| RS-232 ports |
1 |
| DC-in jack |
Yes |
| Material |
Metal |
| Product colour |
Black, Silver |
| Consumer Electronics Control (CEC) support |
Yes |
| Plug and Play |
Yes |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| Maximum operating distance |
15 m |
| Rack mounting |
Yes |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes |
480p, 720p, 1080i, 1080p |
| Bandwidth |
6.75 Gbit/s |
| LED indicators |
Yes |
| Bandwidth |
225 MHz |
| Maximum resolution |
1920 x 1200 pixels |
| 3D |
Yes |
| HD type |
Full HD |
| Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
| Input impedance |
100 Ω |
| Output impedance |
100 Ω |
| HDCP version |
1.4 |
| Power consumption (typical) |
3.73 W |
| Width |
159.8 mm |
| Depth |
437 mm |
| Height |
44 mm |
| Weight |
2 kg |
| Package width |
116 mm |
| Package depth |
540 mm |
| Package height |
233 mm |
| Package weight |
2.48 kg |
| Quantity per pack |
1 pc(s) |
| Mounting kit |
Yes |
| Remote control included |
Yes |
| User guide |
Yes |
| AC adapter included |
Yes |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case width |
375 mm |
| Master (outer) case length |
565 mm |
| Master (outer) case height |
258 mm |
| Master (outer) case gross weight |
8.14 kg |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case net weight |
6 kg |
