Description
ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
| Feature |
Feature Value |
| Product type |
AV matrix switcher |
| Data transfer rate |
18 Gbit/s |
| Maximum pixel clock |
600 MHz |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| HDCP version |
2.2 |
| 3D |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Extended display identification data (EDID) |
Yes |
| Supported resolutions |
4096 x 2160, 3840 x 2160, 1920 x 1200 |
| Housing colour |
Black |
| Housing material |
Metal |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Control type |
Buttons |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Remote control included |
Yes |
| Built-in display |
Yes |

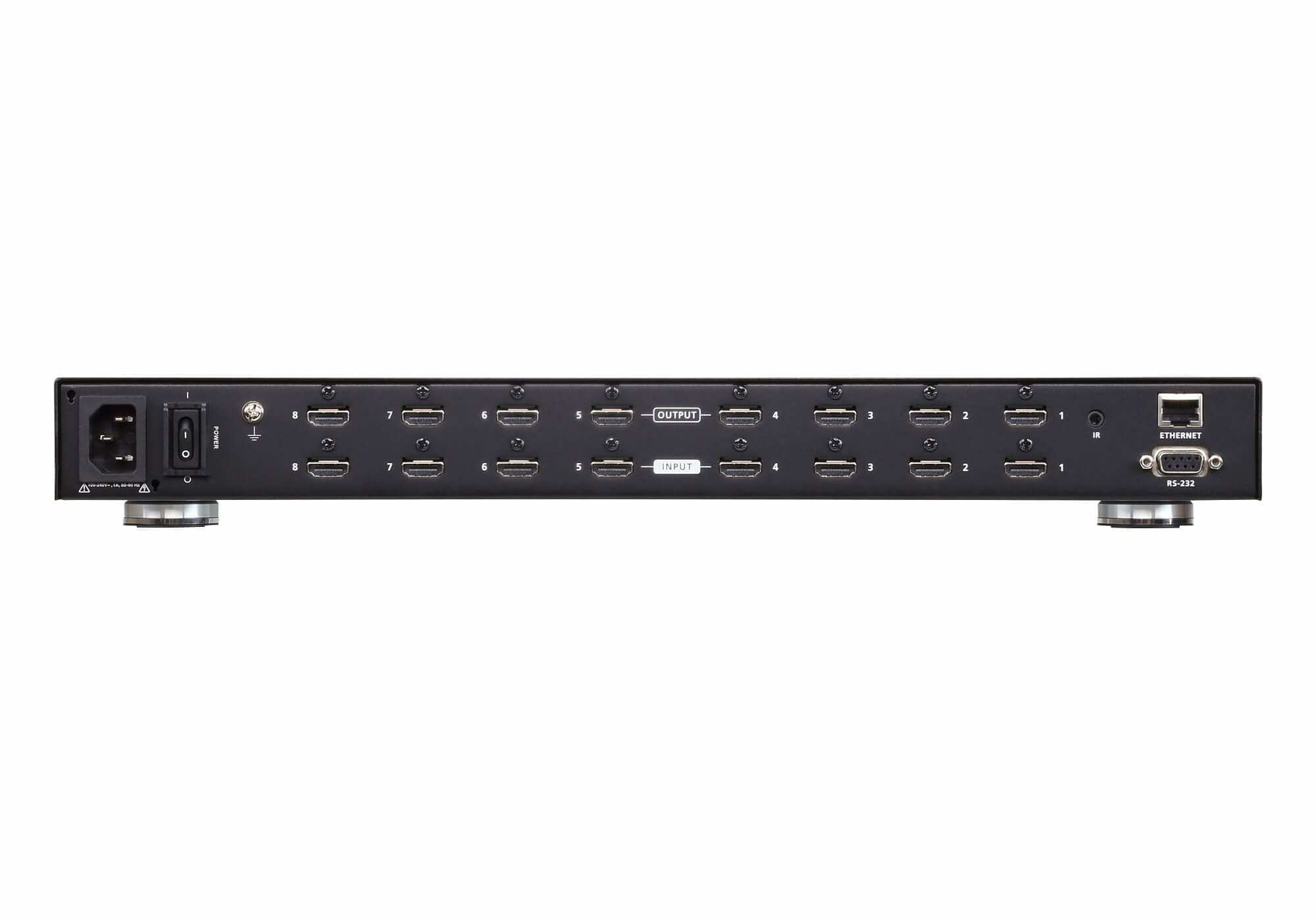

| HDMI input ports quantity |
8 |
| HDMI output ports quantity |
8 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 ports |
1 |
| Remote (IR) input |
1 |
| Power consumption (max) |
38.1 W |
| Power consumption (typical) |
37.8 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Input current |
1 A |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Heat dissipation |
177 BTU/h |
| Heat dissipation (max) |
179 BTU/h |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
5.63 kg |
| Master (outer) case length |
515 mm |
| Master (outer) case width |
338 mm |
| Master (outer) case height |
155 mm |
| Master (outer) case net weight |
4.15 kg |
| Harmonized System (HS) code |
85299097 |
| Width |
432.4 mm |
| Depth |
262.3 mm |
| Height |
44 mm |
| Weight |
4.15 kg |
| Package width |
338 mm |
| Package depth |
515 mm |
| Package height |
155 mm |
| Package weight |
5.63 kg |
| Cables included |
AC |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| IR receiver included |
Yes |
