Description

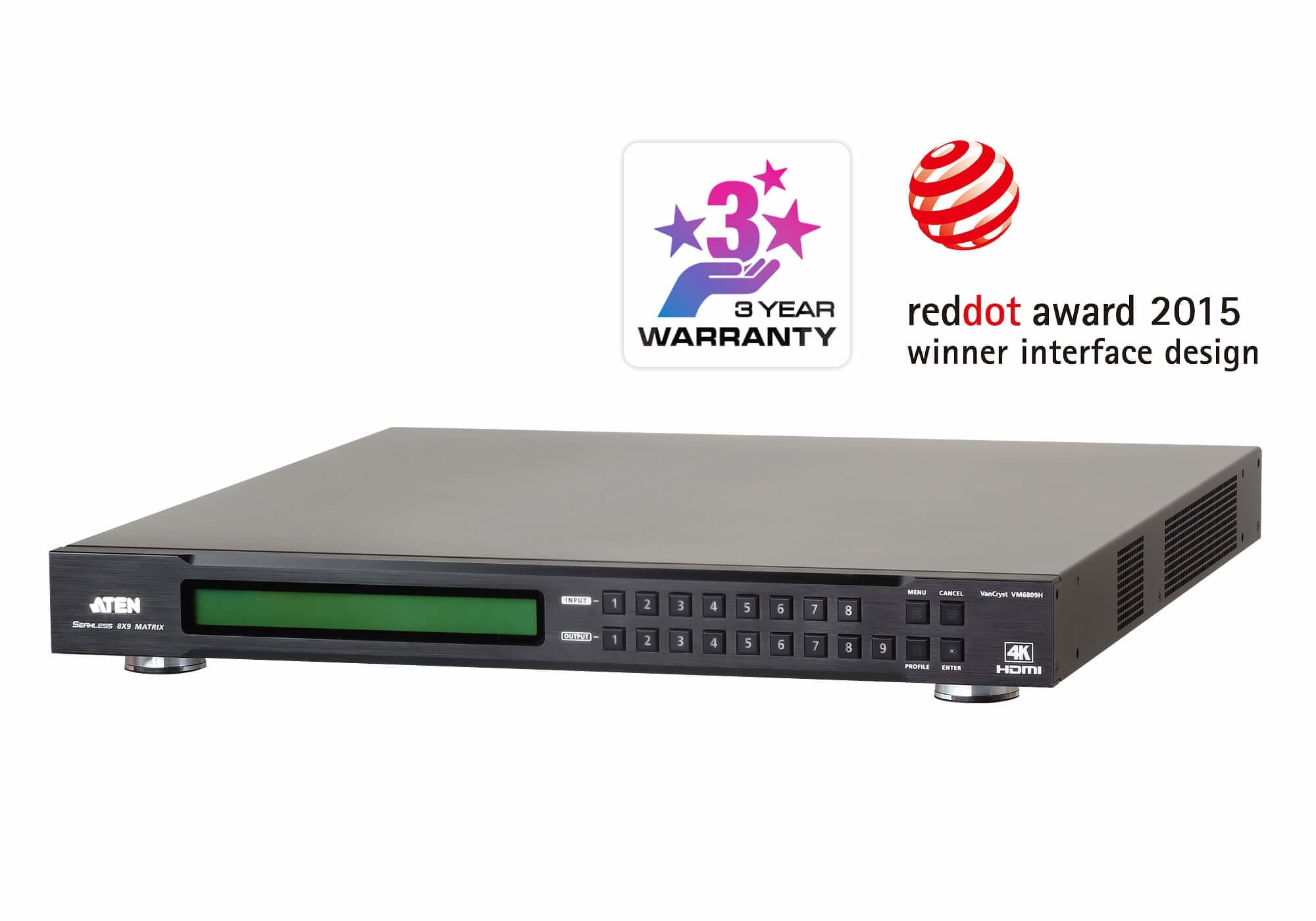

4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN’s VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
1x VM6809H 8 x 9 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
| Feature |
Feature Value |
| Product type |
Scaling matrix switcher |
| Data transfer rate |
10.2 Gbit/s |
| Maximum pixel clock |
340 MHz |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| HDCP version |
2.2 |
| 3D |
Yes |
| Extended display identification data (EDID) |
Yes |
| EDID management |
Yes |
| Housing colour |
Black |
| Housing material |
Metal |
| Rack capacity |
1U |
| LED indicators |
Yes |
| Built-in display |
Yes |

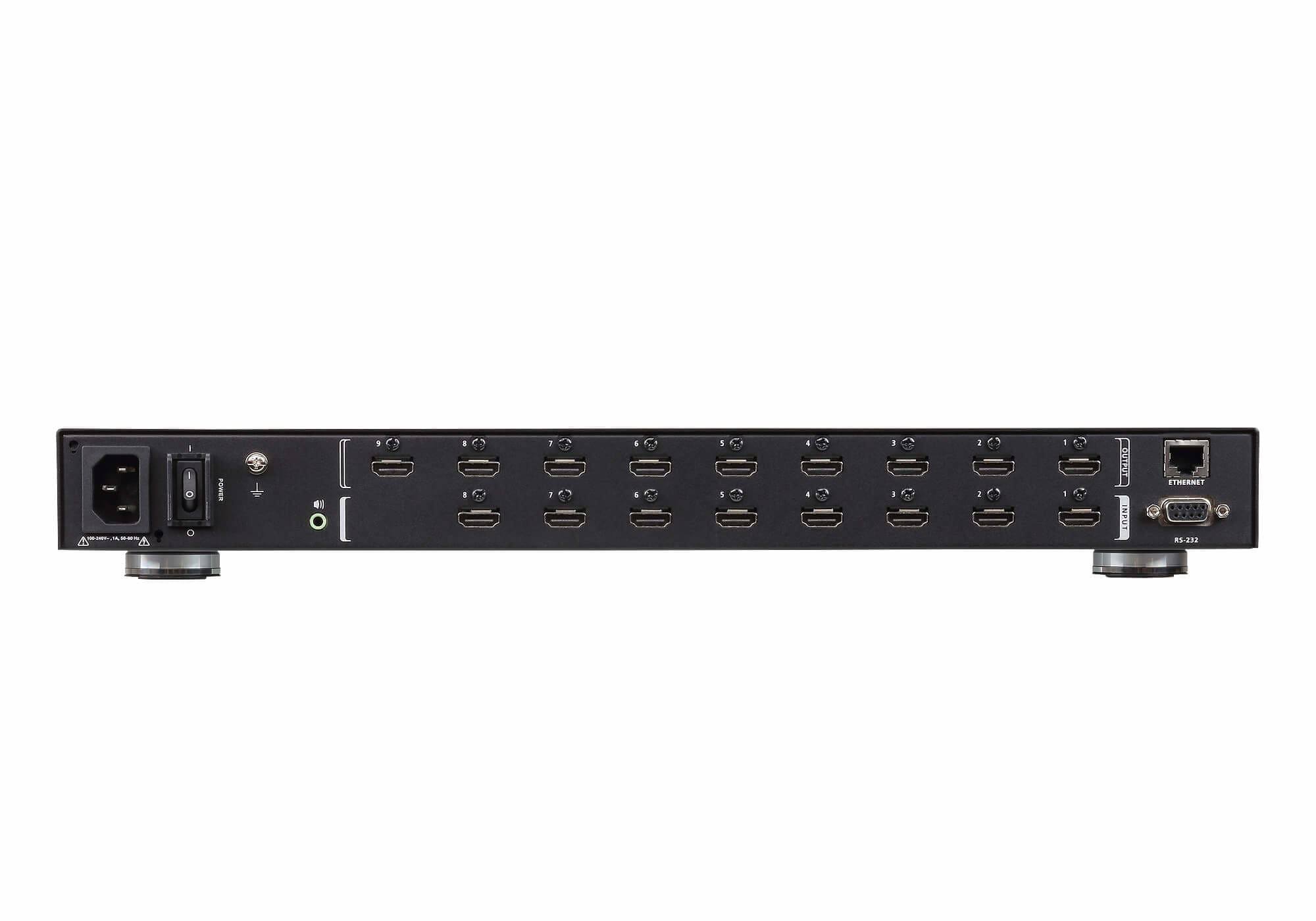

| HDMI input ports quantity |
8 |
| HDMI output ports quantity |
8 |
| HDMI version |
2.0 |
| RJ-45 input ports |
1 |
| RS-232 ports |
1 |
| Power consumption (max) |
79.5 W |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
1 A |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
8.64 kg |
| Master (outer) case length |
575 mm |
| Master (outer) case width |
559 mm |
| Master (outer) case height |
130 mm |
| Master (outer) case net weight |
7.35 kg |
| Harmonized System (HS) code |
85299097 |
| Sustainability certificates |
RoHS |
| Width |
450.3 mm |
| Depth |
432.4 mm |
| Height |
44 mm |
| Weight |
7.35 kg |
| Package width |
559 mm |
| Package depth |
575 mm |
| Package height |
130 mm |
| Package weight |
8.64 kg |
| Cables included |
AC |
