ATEN HDMI to VGA converter with Scaler

Part No:
VC812
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 5 left.

VC812 HDMI to VGA Converter with Scaler

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VC812 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

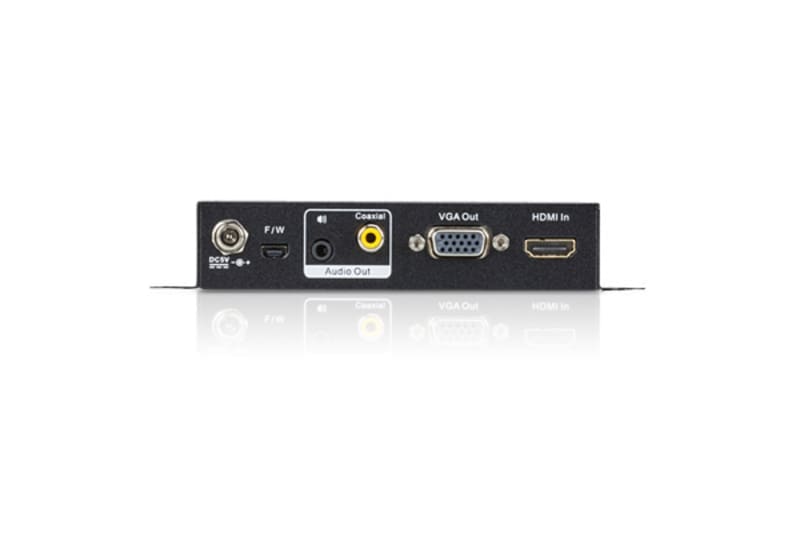

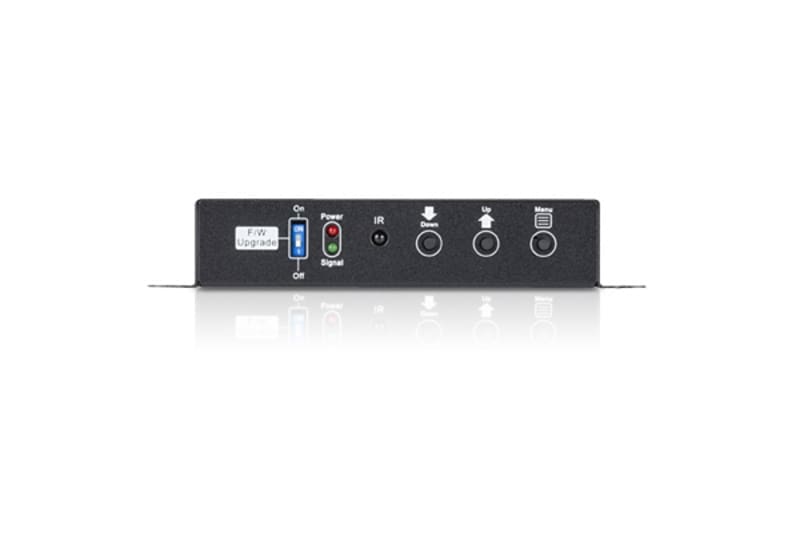

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.
1 x VC812 HDMI to VGA Converter with Scaler
1 x 0AD6-1F05-26EG Power Adapter
1 x Software CD
1 x User Instructions

Feature Feature Value
Converter type Scaler video converter
On Screen Display (OSD) Yes
LED indicators Yes
Product colour Black
Housing material Metal
Maximum video resolution 1920 x 1200 pixels
Video resolutions 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
Supported video modes 480i, 480p, 576i, 576p, 1080i, 1080p
Host interface HDMI
Output interface VGA
VGA (D-Sub) output ports 1
3.5 mm connector Yes
DC-in jack Yes
USB powered No
Input voltage 5 V
Sustainability certificates RoHS
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 20 – 90%
Width 83 mm
Depth 110 mm
Height 28 mm
Weight 400 g
AC adapter included Yes
Manual Yes
Quick installation guide Yes
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 625 g
Master (outer) case net weight 2 kg
Harmonized System (HS) code 85176990
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case gross weight 3.26 kg
Products per master (outer) case 5 pc(s)

Additional information

Converter type

Scaler video converter
LED indicators

Yes
Housing material

Metal
Video resolutions

800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
Host interface

HDMI
VGA (D-Sub) output ports

1
DC-in jack

Yes
Input voltage

5 V
Operating temperature (T-T)

0 – 40 °C
Depth

110 mm
Weight

400 g
Manual

Yes
Package width

59 mm
Package height

160 mm
Master (outer) case width

250 mm
Master (outer) case height

175 mm
On Screen Display (OSD)

Yes
Product colour

Black
Maximum video resolution

1920 x 1200 pixels
Supported video modes

480i, 480p, 576i, 576p, 1080i, 1080p
Output interface

VGA
3.5 mm connector

Yes
USB powered

No
Sustainability certificates

RoHS
Storage temperature (T-T)

-20 – 60 °C
Width

83 mm
Height

28 mm
AC adapter included

Yes
Quick installation guide

Yes
Package depth

239 mm
Package weight

625 g
Harmonized System (HS) code

85176990
Master (outer) case length

325 mm

Brand

Aten
