Description

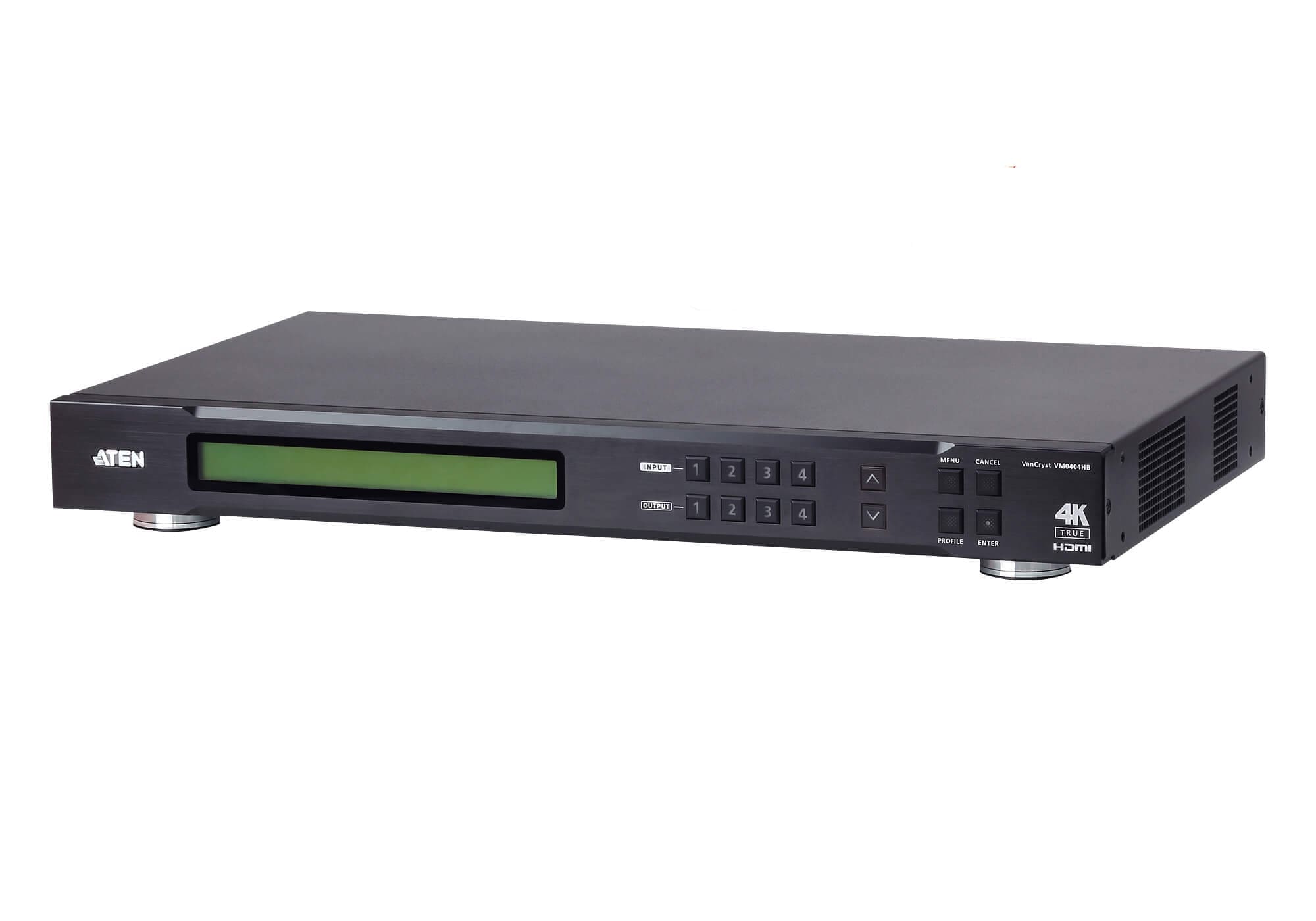

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.
| Feature |
Feature Value |
| Video port type |
HDMI |
| HDMI ports quantity |
8 |
| HDMI in |
4 |
| Number of HDMI outputs |
4 |
| RJ-45 input ports |
1 |
| RS-232 ports |
1 |
| Material |
Metal |
| Product colour |
Black |
| HDCP |
Yes |
| Maximum operating distance |
15 m |
| Bandwidth |
600 MHz |
| Maximum resolution |
4096 x 2160 pixels |
| 3D |
Yes |
| HD type |
4K Ultra HD |
| Rack capacity |
1U |
| Input impedance |
100 Ω |
| Output impedance |
100 Ω |
| AC adapter input voltage |
100-240 V |
| AC adapter frequency |
50-60 Hz |
| AC adapter input current |
1 A |
| Width |
437.2 mm |
| Depth |
152.8 mm |
| Height |
44 mm |
| Weight |
2.47 kg |
| Remote control included |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Mounting brackets included |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
