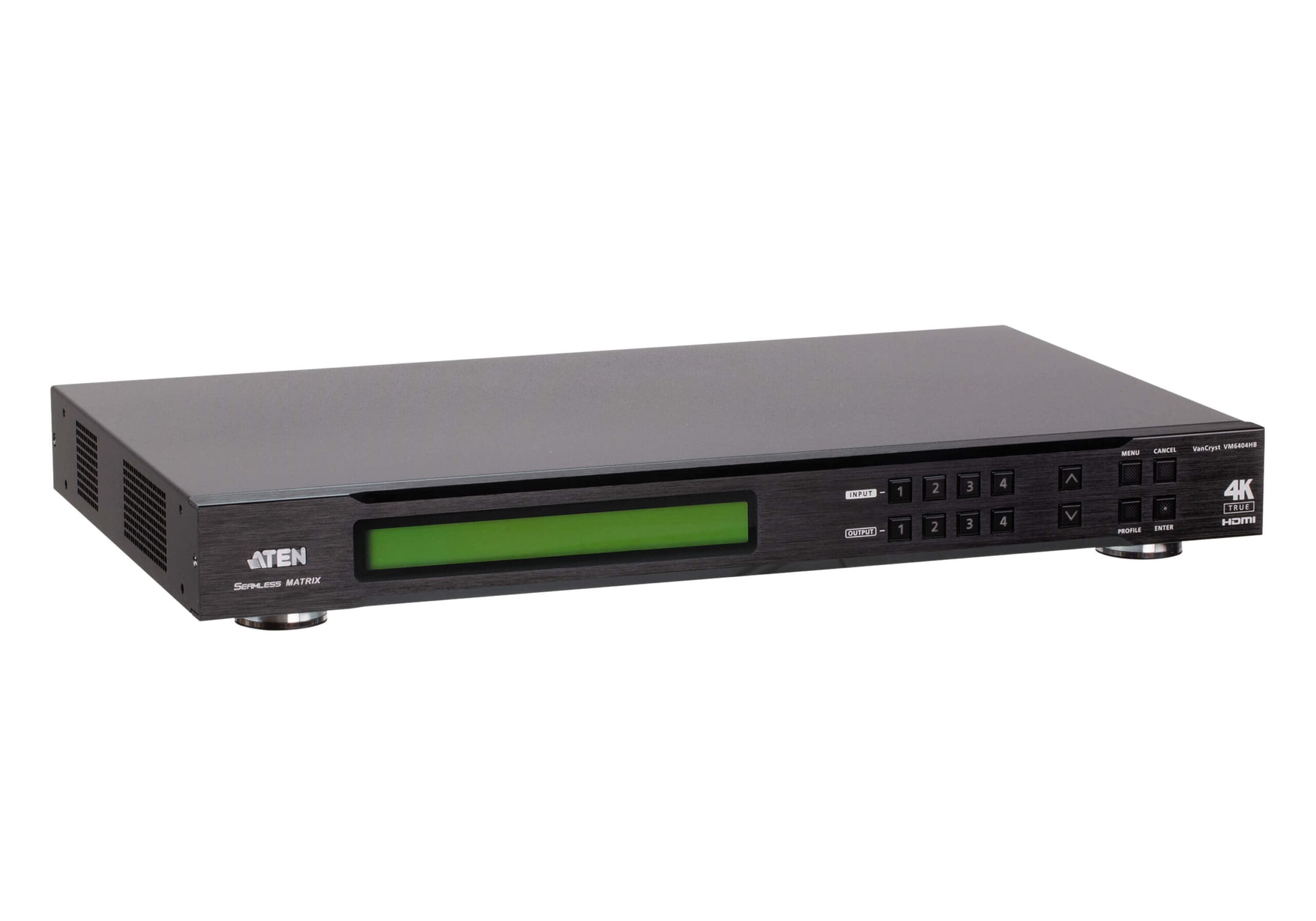

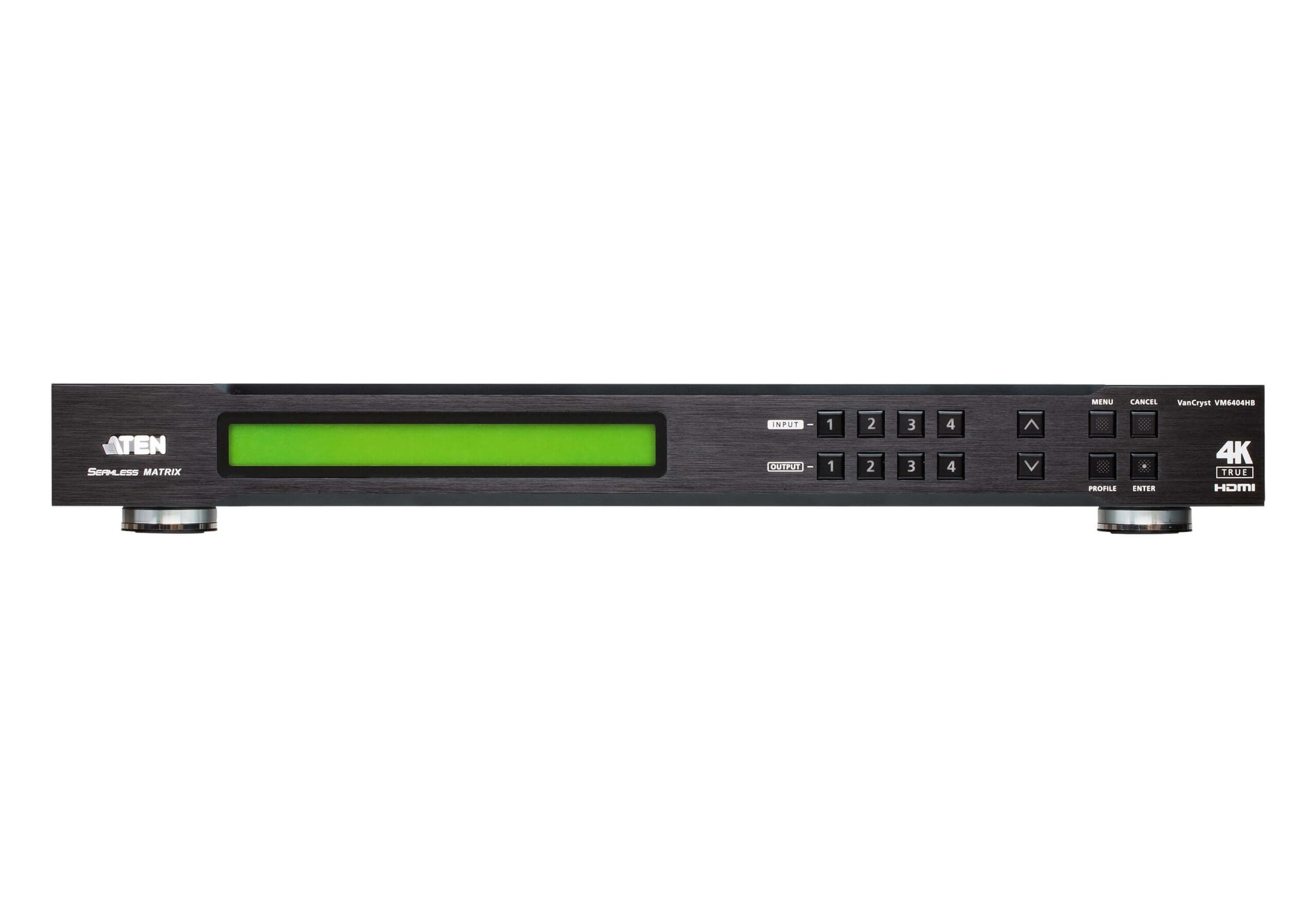

ATEN VM6404HB matrix switcher AV matrix switcher Built-in display

Part No:

VM6404HB

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

4×4 True 4K HDMI Matrix Switch W/Scaler

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: VM6404HB Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN’s VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.

The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404HB easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up – such as for stage presentations, digital classroom, video conference rooms, and any installation that requires real-time synchronization.

Feature Feature Value
Product type AV matrix switcher
Data transfer rate 18 Gbit/s
Maximum resolution 4096 x 2160 pixels
HDCP Yes
HDCP version 2.2
3D Yes
Extended display identification data (EDID) Yes
Supported resolutions 4096 x 2160, 3840 x 2160
Housing colour Black
Housing material Metal
Rack mounting Yes
Rack capacity 1U
Control type Buttons, Wireless
LED indicators Yes
Built-in display Yes

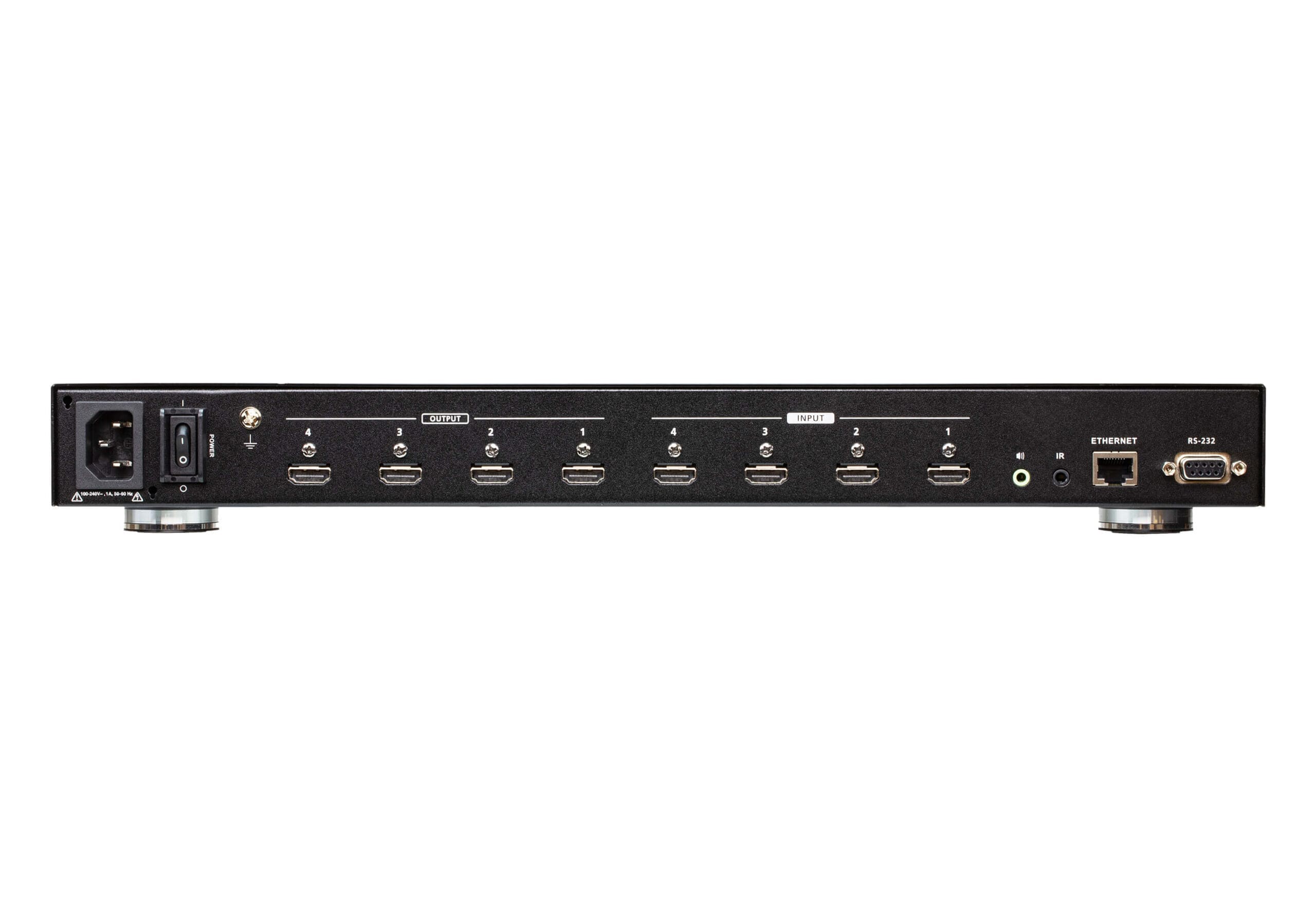

HDMI input ports quantity 4
HDMI output ports quantity 4
Ethernet LAN (RJ-45) ports 1
RS-232 ports 1
Remote (IR) input 1
AC input voltage 100 – 240 V
AC input frequency 50 / 60 Hz
Input current 1 A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Harmonized System (HS) code 85299097
Width 432.4 mm
Depth 262.3 mm
Height 44 mm
Weight 3.52 kg

Additional information

Product type

AV matrix switcher
Maximum resolution

4096 x 2160 pixels
HDCP version

2.2
Housing colour

Black
Rack mounting

Yes
Control type

Buttons, Wireless
Built-in display

Yes
HDMI output ports quantity

4
RS-232 ports

1
AC input voltage

100 – 240 V
Input current

1 A
Storage temperature (T-T)

-20 – 60 °C
Width

432.4 mm
Height

44 mm
Data transfer rate

18 Gbit/s
HDCP

Yes
3D

Yes
Supported resolutions

4096 x 2160, 3840 x 2160
Housing material

Metal
Rack capacity

1U
LED indicators

Yes
HDMI input ports quantity

4
Ethernet LAN (RJ-45) ports

1
Remote (IR) input

1
AC input frequency

50/60 Hz
Operating temperature (T-T)

0 – 40 °C
Harmonized System (HS) code

85299097
Depth

262.3 mm
Weight

3.52 kg

Brand

Aten
