Description

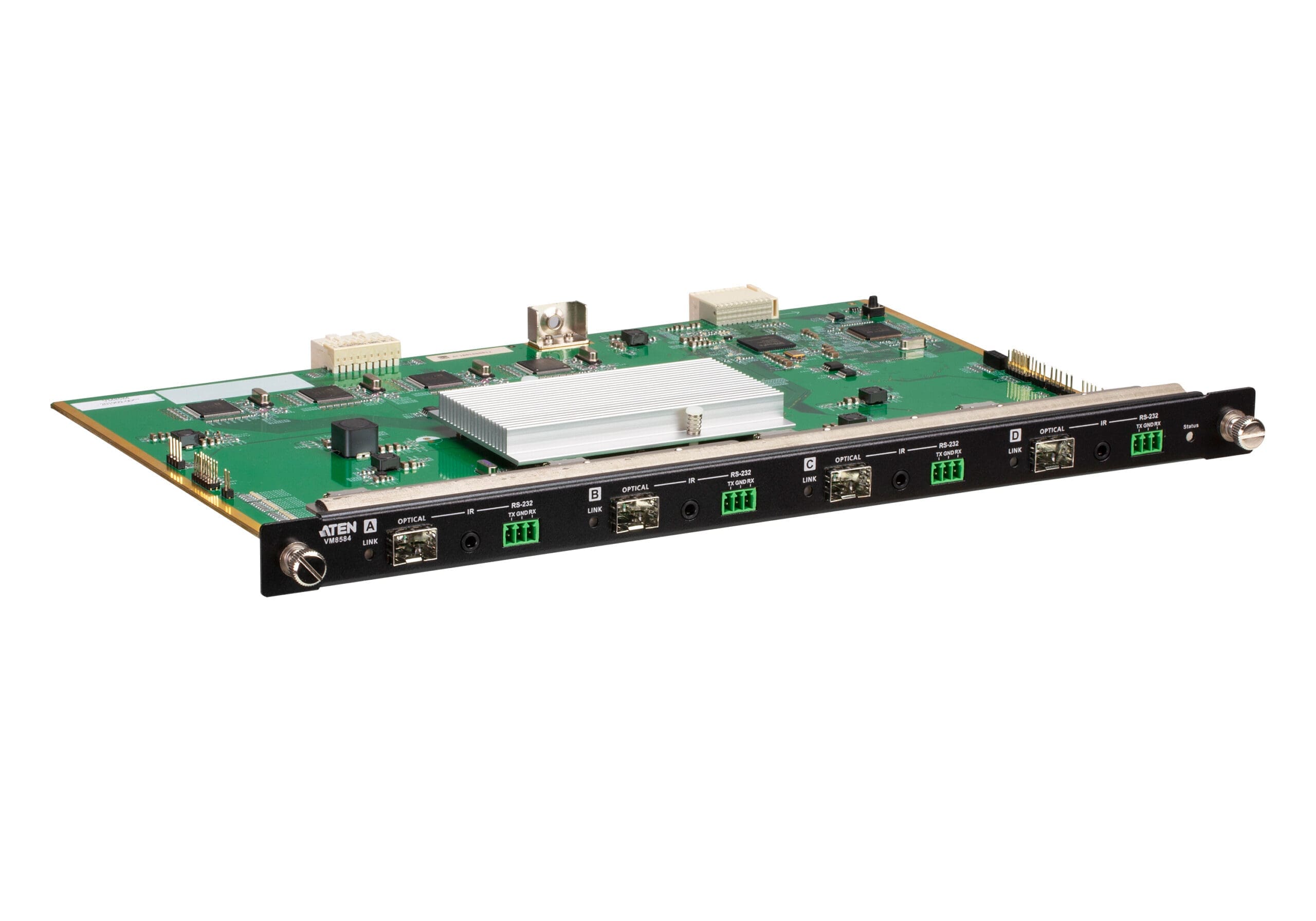

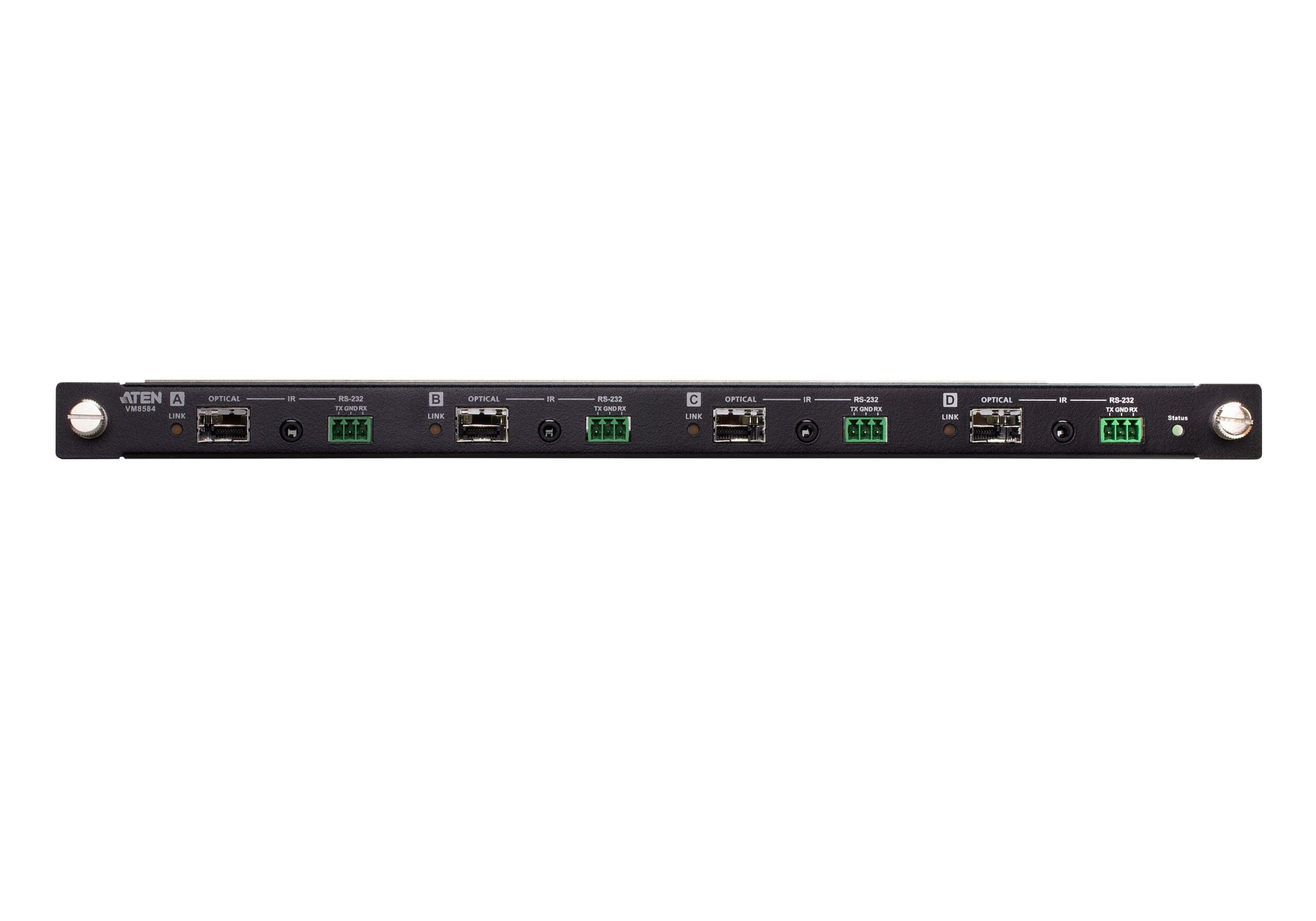

The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM8584 along with its SFP+ module extends uncompressed 4K signal up to 300 m (using VM8584K1) or 10 km (using VM8584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM8584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
| Feature |
Feature Value |
| Product type |
Output board |
| Product colour |
Black |
| Material |
Metal |
| LED indicators |
Yes |
| Compatibility |
Aten VM3250/VM3200/VM1600A |
| Power consumption (typical) |
22.96 W |
| Width |
238 mm |
| Depth |
352 mm |
| Height |
23.3 mm |
| Weight |
650 g |
| Package width |
285 mm |
| Package depth |
426 mm |
| Package height |
57 mm |
| Package weight |
1.15 kg |
| Quick start guide |
Yes |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Storage relative humidity (H-H) |
0 – 80% |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case gross weight |
2.76 kg |
| Master (outer) case length |
440 mm |
| Master (outer) case width |
300 mm |
| Master (outer) case height |
138 mm |
| Master (outer) case net weight |
1.3 kg |
