Description
4K Quad Source Capture, Stream and Switch In a Snap

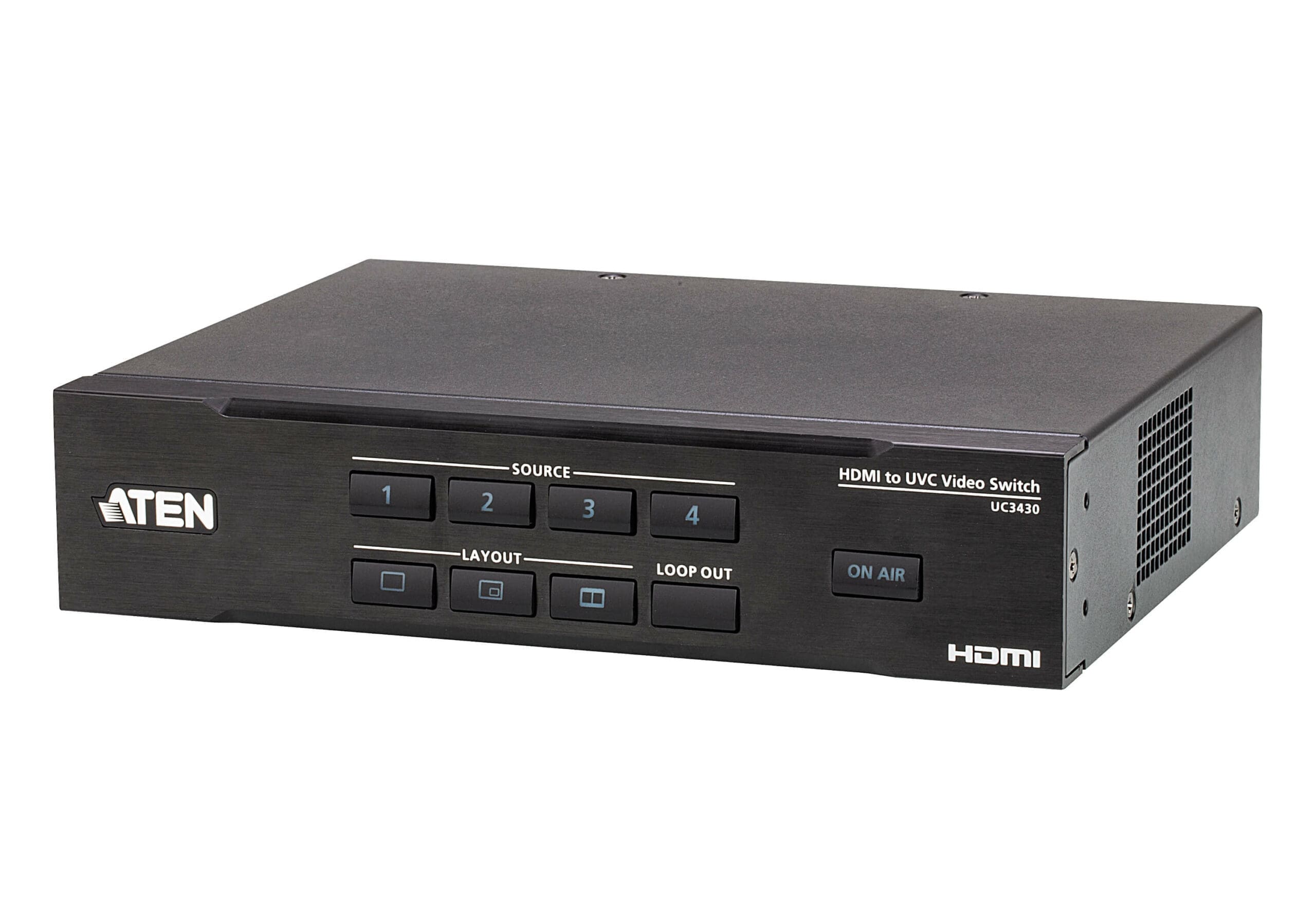

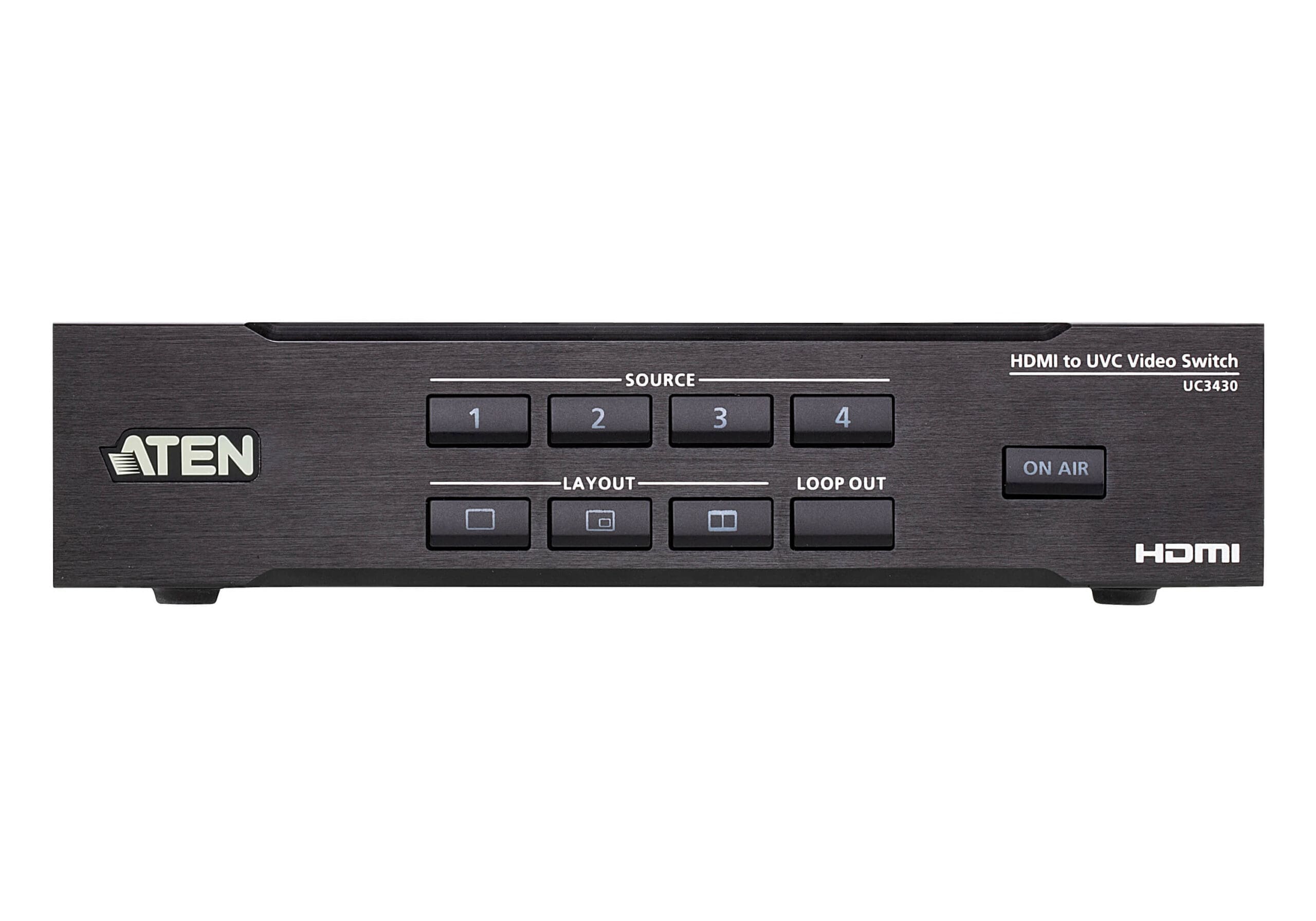

The CAMLIVE™ PRO 4K 4-Input HDMI to USB Video Switcher captures up to four 4K@60 HDMI inputs, allowing users to blend dual video signals into a single stream. It supports various output options, including 4K@60 HDMI PGM/Loop-through for multi-view screen purposes and 4K@30 USB-C output for live broadcasting on the Internet.
Stream in Style, Unleashing Epic Live Experiences
Quickly complete your program with on-site production and simultaneously reach a global audience through the CAMLIVE™ PRO 4K . Its built-in hardware streaming engine works seamlessly with various software, enabling direct live streaming to multiple social media platforms. With 4 HDMI inputs, capture diverse angles and switch content in real-time. Connect a computer for presentations for important meetings on Zoom and Teams. Livestream effortlessly on platforms like YouTube, Twitch, and Facebook.
Recommended Usage Scenarios
The CAMLIVE™ PRO 4K can be used in scenarios requiring multiple HDMI input sources. Connecting multiple cameras allows you to effortlessly switch recording sources, capturing every exciting moment. You can also connect different visual sources such as laptops, desktops, and gaming consoles to overlap with the camera feed, creating various live streaming effects. The 6.35mm audio jack enables seamless integration with professional audio equipment, delivering the best visual and auditory experience.
Live Lecture
The CAMLIVE™ PRO 4K allows large conference rooms to broadcast TV broadcast-level content to global employees and investors through video software. The intuitive front panel control makes it easy for you to quickly switch between multiple HDMI cameras and presentations on laptops without the need to hire professionals or a team for online broadcasting.
Meeting with Multiple Input Sources
In medium to large meeting rooms, two cameras and two different presentation sources, such as PowerPoint slides and videos, are often used. In such situations, the CAMLIVE™ PRO 4K, which supports four HDMI sources, can maximize its performance. It seamlessly incorporates both presentation content and important participants into the video during the meeting, avoiding awkward gaps caused in between switching.
Online Live Concert
Creating a small concert livestream has never been easier! Through CAMLIVE™ PRO 4K, you can connect up to four cameras and add a professional 6.35mm audio input for mixing. Easily switch between different band members on stage and capture interactions with the live audience. It can also output high-resolution live footage in 4K @60FPS to a projector, providing an excellent concert experience both online and offline.
Free ATEN OnAir Lite App with Continuously Updated Features
ATEN OnAir Lite app allows for controlling, editing in real-time, chroma keying, and arranging multi-elements into your program mix. You can switch and mix video/audio, change settings and effects, and save up to 8 preset scenes for quick switching. The new version of ATEN OnAir Lite app also allows you to upgrade the firmware online. Simply plug the USB cable into the PC from CAMLIVE™ PRO 4K, connect the network to the PC, open the OnAir Lite app, and click the device logo to initiate the upgrade.
Broadcast Pro-level Content with Ease
CAMLIVE™ PRO 4K redefines 4K video processing. It features an intuitive “Scene Priority” preset operation for seamless content switching, mixing, and encoding. ATEN OnAir Lite app empowers you to crop, resize, and create picture-in-picture effortlessly.
Chroma keying can be accomplished by utilizing RGB codes, color palettes, or even a color picker tool to precisely select colors from the actual location of the background image.
CAMLIVE™ PRO 4K is your versatile companion for video presentations and multi-cam mixing with enhanced effects. Unlock boundless creativity and broaden your horizons with ease.
| Feature |
Feature Value |
| Product colour |
Black |
| Internal |
No |
| Host interface |
HDMI |
| Video capture resolution (max) |
3840 x 2160 pixels |
| Housing material |
Metal |
| Country of origin |
Taiwan |
| Supported resolutions |
3840 x 2160
1920 x 1080
1280 x 720 |
| Maximum refresh rate |
60 Hz |
| Maximum frame rate |
60 fps |
| Supported video modes |
720p, 1080p, 2160p |
| USB port |
Yes |
| USB connector type |
USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
1 |
| HDMI in |
4 |
| Number of HDMI outputs |
2 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Power supply type |
DC |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Width |
164.6 mm |
| Depth |
200 mm |
| Height |
44 mm |
| Weight |
1.03 kg |
| Master (outer) case width |
370 mm |
| Master (outer) case height |
232 mm |
| Package weight |
1.91 kg |
| Package height |
207 mm |
| Package width |
414 mm |
| Package depth |
117 mm |
| Master (outer) case gross weight |
6.28 kg |
| Master (outer) case length |
427 mm |
| Harmonized System (HS) code |
85176200 |
