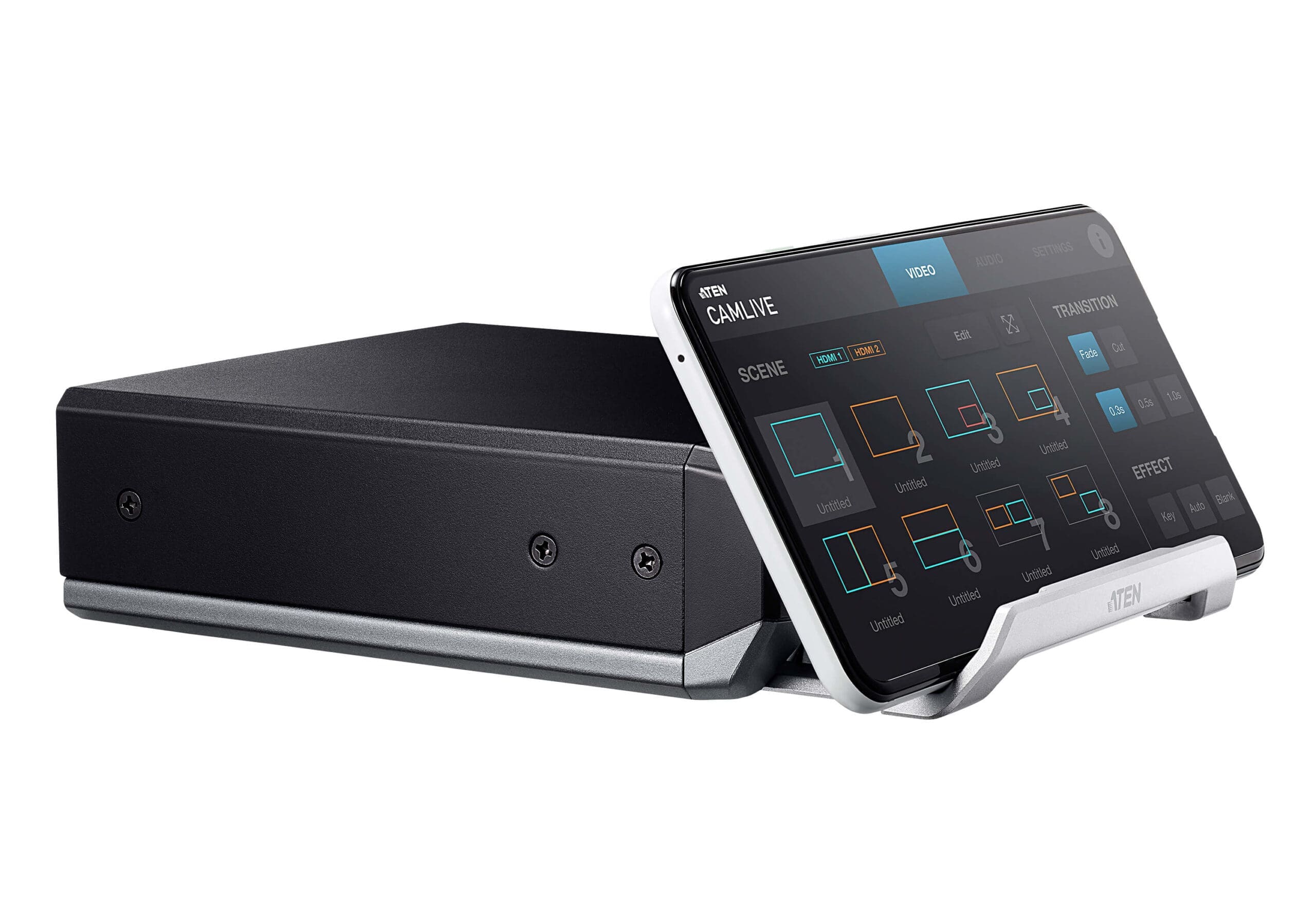

ATEN CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)

Part No:

UC3022

Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Full Product Specs
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?.

CamLive (Dual HDMI to USB-C UVC Video Capture)

Non-Returnable*

*This item is non-returnable and non-cancellable due to customisation or built to order.

Request info below or give us a call on 0203 617 7663
SKU: UC3022 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Aten

Related products

Description

1x UC3022 CAMLIVE™ PRO Dual HDMI to USB-C UVC Video Capture
1x LIN6-11B1-E12G USB-B to USB-C Cable
1x LIN6-11C1-E11G USB-B to USB-A Cable
1x LIN2-418K-E12G Power Adapter
1x KC06-0064-100G camera mount adapter kit
1x User Instructions

Feature Feature Value
Product colour Black, Silver
Internal No
Host interface USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max) 3840 x 2160 pixels
Housing material Metal
Supported resolutions 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50
Maximum frame rate 60 fps
Supported video modes 720p, 1080p, 2160p
USB port Yes
USB connector type USB Type-B
USB version 3.2 Gen 1 (3.1 Gen 1)

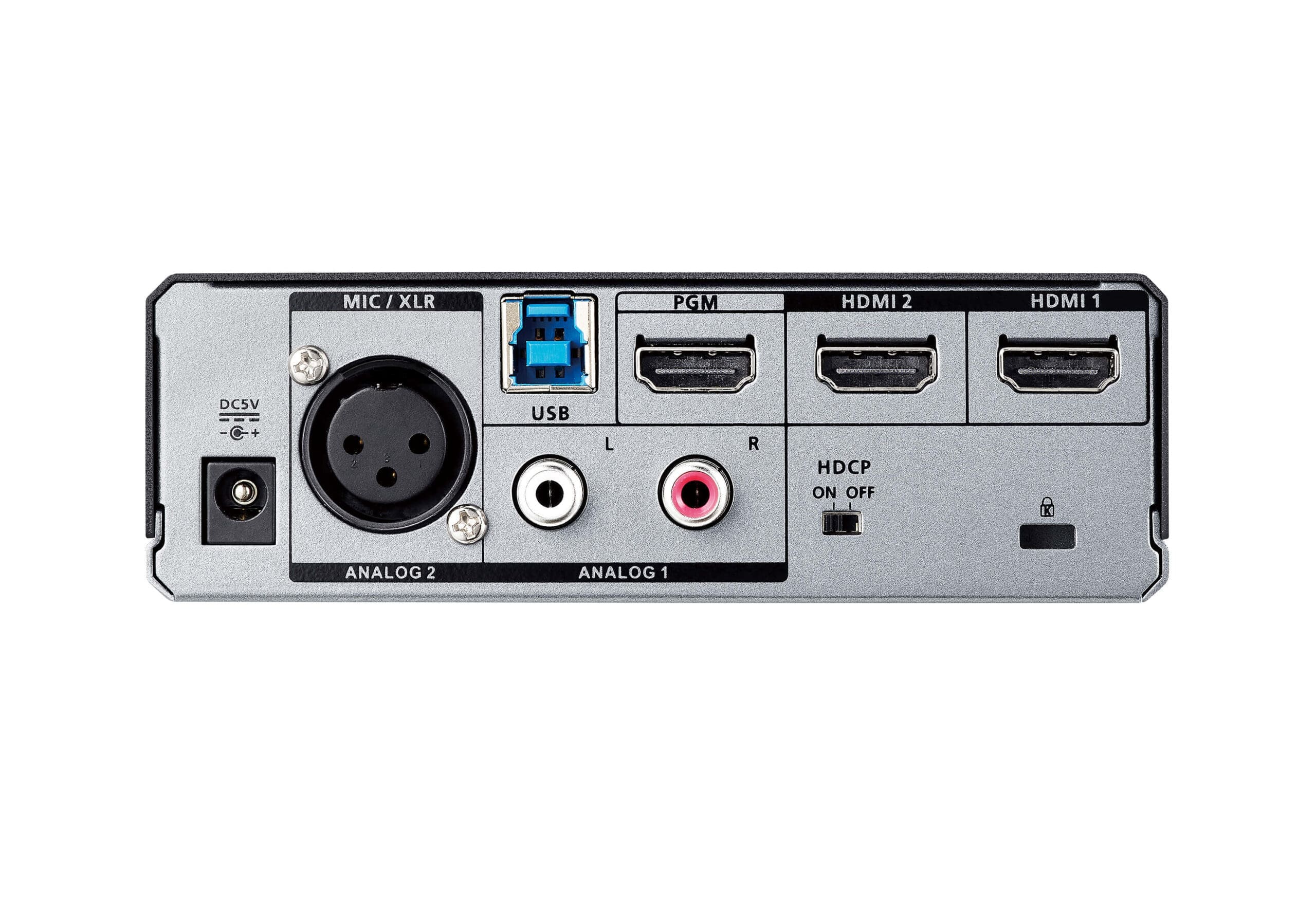

HDMI ports quantity 3
HDMI in 2
Number of HDMI outputs 1
Audio (L/R) in 1
DC-in jack Yes
AC input voltage 5 V
Windows operating systems supported Windows 10
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Other operating systems supported Android, iOS
Minimum processor Intel i3 Dual Core 2.8Ghz
Minimum RAM 4000 MB
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Sustainability certificates RoHS
Width 151.8 mm
Depth 130 mm
Height 42.5 mm
Weight 1.14 kg
Master (outer) case width 283 mm
Master (outer) case height 245 mm
Package weight 1.64 kg
Package height 220 mm
Package width 95 mm
Package depth 265 mm
AC adapter included Yes
User guide Yes
Products per master (outer) case 5 pc(s)
Master (outer) case gross weight 8.89 kg
Master (outer) case length 520 mm
Master (outer) case net weight 5.7 kg
Harmonized System (HS) code 85176990

Additional information

Product colour

Black, Silver
Host interface

USB 3.2 Gen 1 (3.1 Gen 1)
Housing material

Metal
Maximum frame rate

60 fps
USB port

Yes
USB version

3.2 Gen 1 (3.1 Gen 1)
HDMI in

2
Audio (L/R) in

1
AC input voltage

5 V
Mac compatibility

Yes
Minimum RAM

4000 MB
Storage temperature (T-T)

-20 – 60 °C
Sustainability certificates

RoHS
Depth

130 mm
Weight

1.14 kg
Master (outer) case height

245 mm
Package height

220 mm
Package depth

265 mm
User guide

Yes
Internal

No
Supported resolutions

2160p30/25/24, 1080p60/50/30/25/24, 720p60/50
Supported video modes

720p, 1080p, 2160p
USB connector type

USB Type-B
HDMI ports quantity

3
Number of HDMI outputs

1
DC-in jack

Yes
Minimum processor

Intel i3 Dual Core 2.8Ghz
Operating temperature (T-T)

0 – 40 °C
Width

151.8 mm
Height

42.5 mm
Master (outer) case width

283 mm
Package weight

1.64 kg
Package width

95 mm
AC adapter included

Yes
Master (outer) case length

520 mm
Harmonized System (HS) code

85176990

Brand

Aten
