ATEN CE350 console extender
Lock Added: N/A

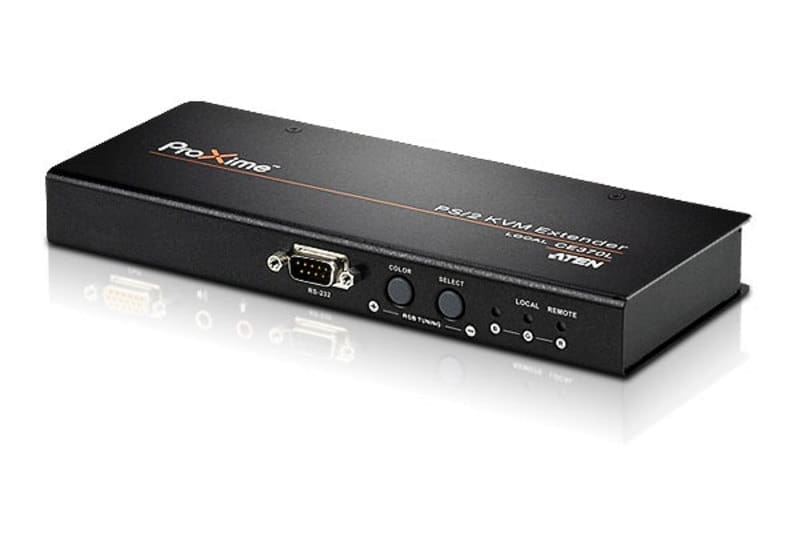

PS/2 KVM Extender
Non-Returnable*
Related products
Description
Features

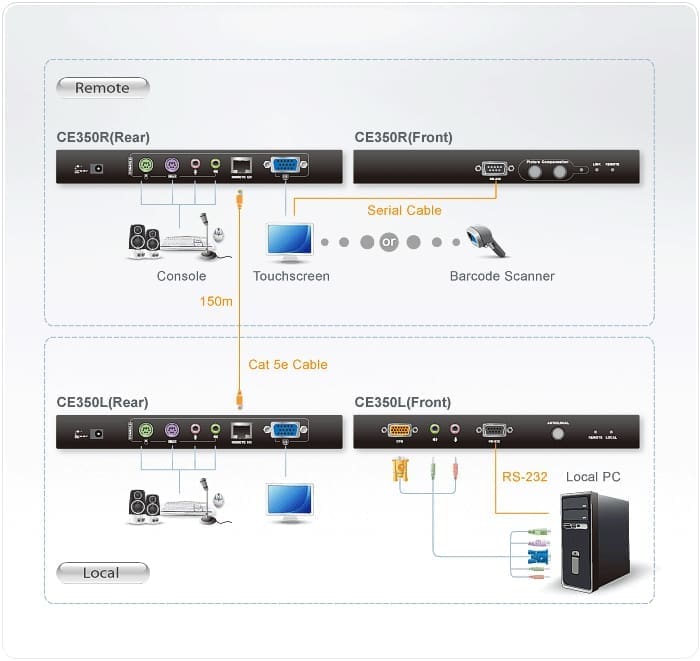

– Local and Remote Units connect at distances up to 150 m using Cat 5e cable
– Adjustable gain control – automatically and manually adjust signal strength to compensate for distance
– Dual console operation – control your system from both the local and remote keyboard, monitor, and mouse consoles
– Built-in ASIC for greater reliability and compatibility
– Auto Signal Compensation (ASC) and storage of settings
– RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
– Audio Enabled – supports stereo speakers and microphone
– Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes, with the press of a single button
– Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
– Superior video quality – 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
– Superior Audio – no loss in audio quality at 150 m
– Supports Wide Screen formats
– Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
– Hot pluggable
– Rack mountable
– Easy to install – no software required – connecting cables to the devices is all it takes
Package Contents
– 1x CE350L PS/2 KVM Extender (Local Unit)
– 1x CE350R PS/2 KVM Extender (Remote Unit)
– 1x 2L-5302P PS/2 KVM Cable Set (1.8 m)
– 2x 0AD6-1605-24EG Power Adapters
– 1x Mounting Kit
– 1x User Instructions
| Feature | Feature Value |
|---|---|
| Product colour | Black |
| Sustainability certificates | RoHS |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| RS-232 ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Cables included | PS/2 |
| Mounting kit | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Additional information
| Product colour | Black |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| RS-232 ports | 1 |
| Microphone in | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Sustainability certificates | RoHS |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Cables included | PS/2 |
| Manual | Yes |
