ATEN SN3101 serial switch box Wired
Part No:
SN3101
Price Locked for 30 Days:
Lock Added: N/A
Lock Added: N/A
exc VAT
£0.00
£0.00
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.
Last few available! Order now: Only 2 left.
ATEN Network Serial Device Server
Non-Returnable*
Related products
Description

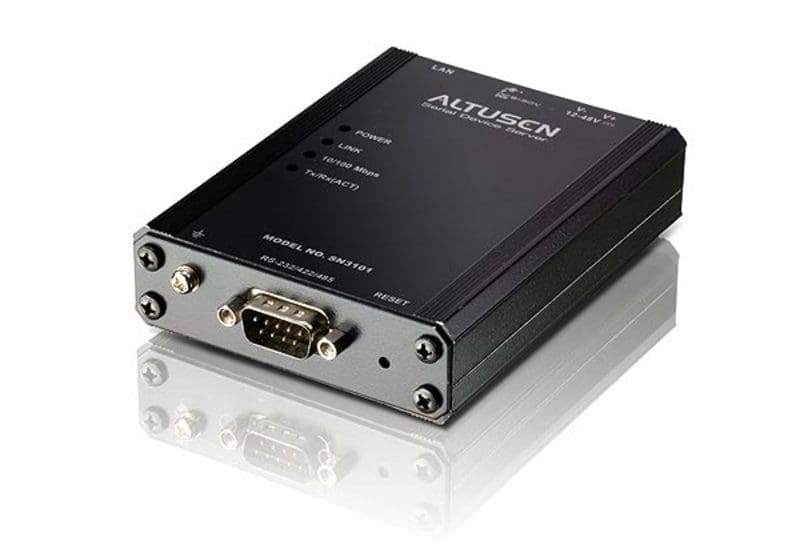

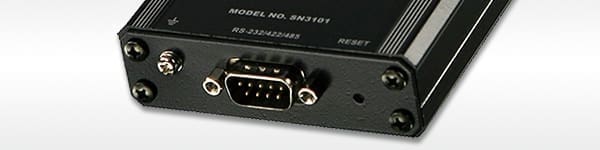

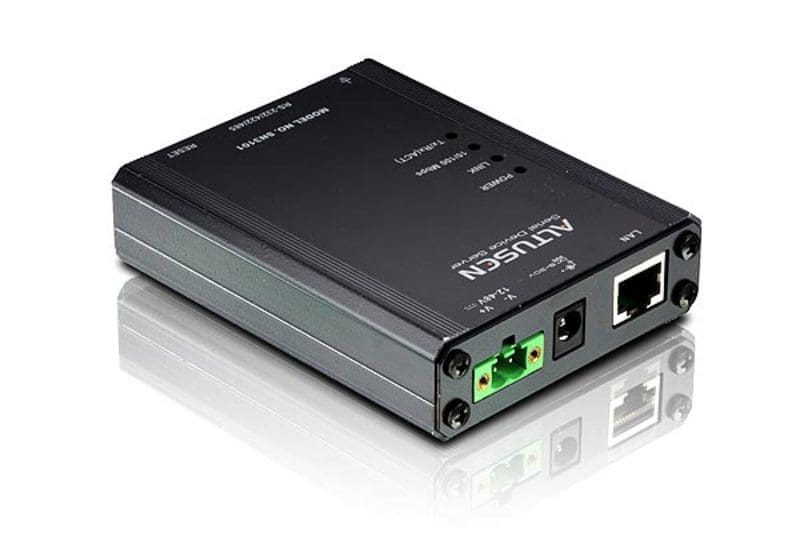

The SN3101 3-in-1 Serial Device Server supports RS-232, RS-422 and RS-485 data transfers, as well as providing Ethernet connectivity for a wide variety of serial devices used in commercial applications. These include industrial control,data acquisition, access control, environment monitoring,banking, telecoms, remote site management, etc. This total serial data transfer system transforms the capability of legacy serial devices, and allows them to take advantage of the speed and reliability of today’s modern communication techniques.
| Feature | Feature Value |
|---|---|
| Connectivity technology | Wired |
| Data link protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH |
| Storage temperature (T-T) | -20 – 85 °C |
| Compatible operating systems | Windows 2000/XP/2003/Vista |
| Manual | Yes |
| Package height | 160 mm |
| Package length | 23.9 cm |
| Package width | 59 mm |
| Height | 24.4 mm |
| Package weight | 480 g |
| Width | 106.9 mm |
| Length | 79 mm |
| Product colour | Black |
| Input connections | DB-9 |
| Material | Metal |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case width | 250 mm |
| Master (outer) case net weight | 3.8 kg |
| Sustainability certificates | RoHS, WEEE |
| Power supply type | AC/DC |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 60 °C |
| Weight | 220 g |
| Packaging content | 1x Serial Device Server 1x 0AD6-1909-06EG Power Adapter 1x DC Terminal Connector 1x Mounting Kit 1x User Instructions |
| Country of origin | Taiwan |

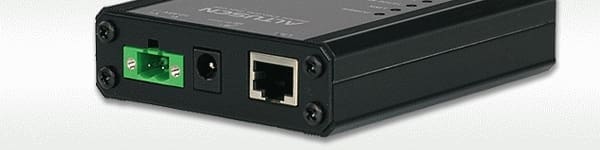

| I/O ports | 1 x RJ-45, 1 x 2-pin Terminal Block, 1 x DC |
