Description

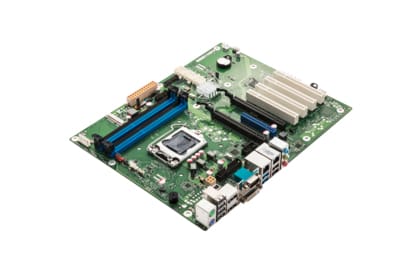

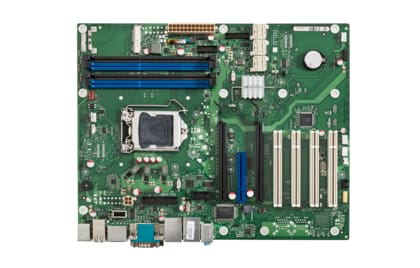

The FUJITSU Industrial Mainboard D3236-S is the best choice for industrial requirements. Produced in the German Fujitsu Mainboard Factory in Augsburg, the D3236-S fulfills the highest quality needs. Featured by the Intel® Q87 Express Chipset, the 4th Generation of Intel® Core™ processors are supported. To fulfill the requirement about reliable and managable network connections, the Fujitsu D3236-S is equipped with two Intel® GbE LAN Controller which supports the latest Intel® Active Management Technology (iAMT9.0). The Fujitsu D3236-S is designed & approved for 24/7 continiuous operation also in enhanced temperature ranges up to 60°C. Finally an improved Thermal Management & System Monitoring Microcontroller enables the user to get the whole overview about the system status.
| Feature |
Feature Value |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1150 (Socket H3) |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series |
i3-4xxx, i5-4xxx, i7-4xxx |
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| Memory voltage |
1.5 V |
| Supported memory clock speeds |
1333,1600 MHz |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
Micro SATA, PCI Express 3.0, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Graphics card |
HD Graphics |
| DirectX version |
11.1 |
| USB 2.0 connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
6 |
| Number of SATA II connectors |
0 |
| Number of Parallel ATA connectors |
0 |
| S/PDIF out connector |
No |
| Front panel audio connector |
Yes |
| CPU fan connector |
Yes |
| Parallel connector |
Yes |
| 12V power connector |
Yes |
| USB 2.0 ports quantity |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
0 |
| DVI-D ports quantity |
0 |
| eSATA ports quantity |
0 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
0 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| S/PDIF out port |
No |
| Parallel ports quantity |
0 |
| Serial ports quantity |
1 |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Intel® I210-AT, Intel I217LM |
| Wake-on-LAN ready |
Yes |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel® Q87 |
| Audio output channels |
5.1 channels |
| Audio chip |
Realtek ALC671 |
| Power source type |
ATX |
| Windows operating systems supported |
Yes |
| PCI Express x8 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI slots |
4 |
| BIOS type |
UEFI AMI |
| Storage temperature (T-T) |
0 – 60 °C |
| Width |
243.8 mm |
| Depth |
304.8 mm |
| mSATA ports quantity |
1 |
| S/PDIF in connector |
Yes |
| S/PDIF in port |
No |
