Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt

Part No:
4XF1L53431
Full Product Specs
Price Locked for 30 Days:
Lock Added: N/A
exc VAT
£159.07
£190.88
inc VAT
Save 5% - First order discount - Any product - Any price*
Use Promo Code: FIRST5
*This promotion may only be used once, 5% discount is applied to your first order. Can not be used in-conjunction with any other offers. Not available if paying with PayPal.

This item is currently unavailable for next day delivery, however you may still order this item as a back-order?

MECH_BO TS TBT4 HP PCIE CARD

Available on back-order

Non-Returnable*

Safe & Secure shopping

*This item is non-returnable and non-cancellable due to customisation or built to order.

SKU: 4XF1L53431 Category:

Can't find what your looking for?

Our qualified I.T. experts are here & ready to help.

Contact us on 0203 617 7663 or email us directly
Lenovo

Related products

Description

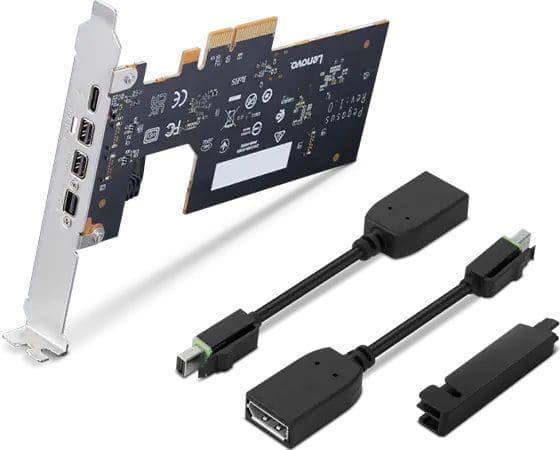

The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card’s internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.

Feature Feature Value
Host interface PCIe
Output interface Mini DisplayPort, Thunderbolt 4
Host interface gender Male
Internal Y
Purpose Server
Cooling type Passive
Hot-Plug support Y
Certification BSMI，CE,Morocco，FCC,IC,VCCI
Power consumption (typical) 45 W
Operating temperature (T-T) 0 – 50 °C
Operating relative humidity (H-H) 20 – 80%
Width 144.8 mm
Depth 68.9 mm
Height 22 mm
Weight 100 g
Package width 177 mm
Package depth 144 mm
Package height 53 mm
Package weight 400 g
Package type Box

Additional information

Host interface

PCIe
Host interface gender

Male
Purpose

Server
Hot-Plug support

Y
Power consumption (typical)

45 W
Depth

68.9 mm
Weight

100 g
Package depth

144 mm
Package weight

400 g
Output interface

Mini DisplayPort, Thunderbolt 4
Internal

Y
Cooling type

Passive
Certification

BSMI，CE,Morocco，FCC,IC,VCCI
Operating temperature (T-T)

0 – 50 °C
Width

144.8 mm
Height

22 mm
Package width

177 mm
Package height

53 mm
Package type

Box

Brand

Lenovo
