Description

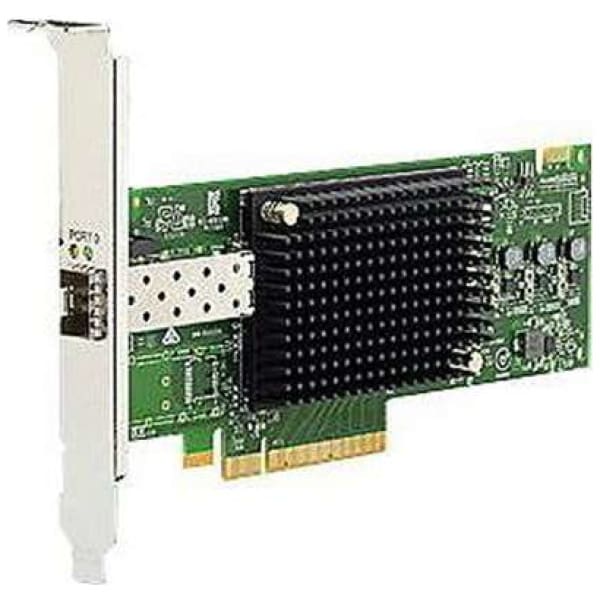

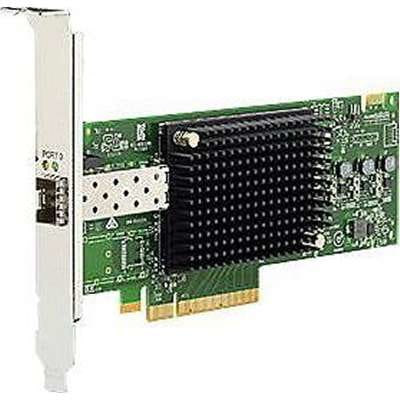

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
| Feature |
Feature Value |
| Connectivity technology |
Wired |
| Host interface |
PCIe |
| Interface |
Fiber |
| Fiber ports quantity |
1 |
| Fiber optic connector |
FC, SFP+ |
| PCI version |
3.0 |
| Maximum data transfer rate |
16000 Mbit/s |
| Full duplex |
Yes |
| Web-based management |
Yes |
| Maximum operating distance |
150 m |
| Internal |
Yes |
| Component for |
Server |
| Product colour |
Black, Green, Silver |
| Rack mounting |
Yes |
| Rack capacity |
2U |
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| LED indicators |
Yes |
| Mean time between failures (MTBF) |
10000000 h |
| Certification |
AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea MSIP, Class A
RoHS Compliant (Directive 2011/65/EU)
TUV certified to EN60950-1+A11+A1+A12+A2
Taiwan BSMI, Class A
UL recognized to UL60950-1 2nd Edition |
| Compatible products |
System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Linux operating systems supported |
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0 |
| Other operating systems supported |
VMware vSphere ESXi |
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2 |
| Operating temperature (T-T) |
0 – 55 °C |
| Storage temperature (T-T) |
-20 – 85 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Sustainability certificates |
RoHS |
| Depth |
168 mm |
| Height |
69 mm |
| Quantity |
1 |
| Low-profile bracket |
Yes |
| Package type |
Box |
| Mounting brackets included |
Yes |
| Harmonized System (HS) code |
85176990 |
| PCI-SIG* SR-IOV Capable |
Yes |
