Description
The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.
ATEN Control System – 12-button Keypad (EU, 2 Gang)
VK112EU

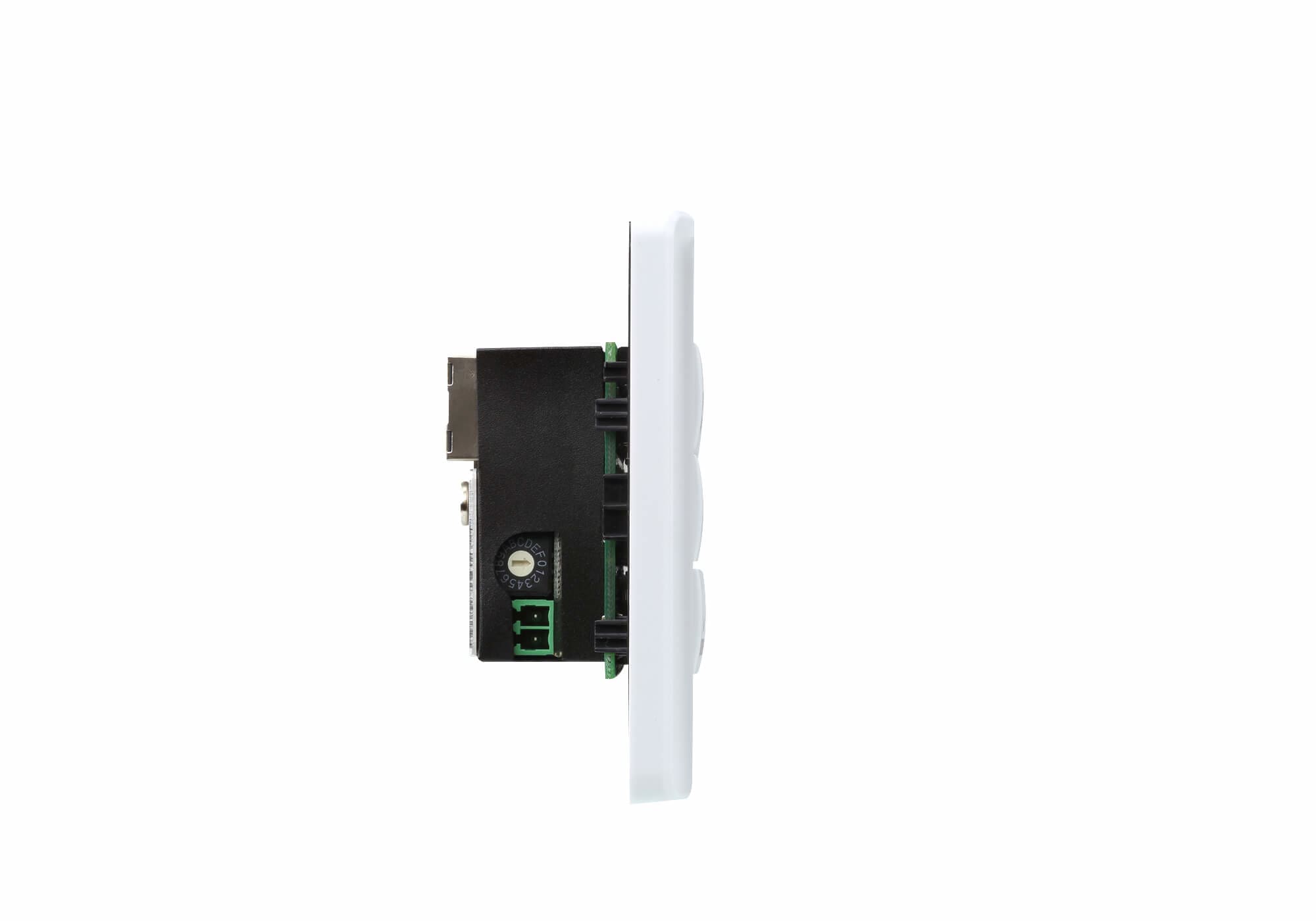

ATEN Control System – 12-button Keypad (EU, 2 Gang)-6
ATEN Control System – 12-button Keypad (EU, 2 Gang)-1
ATEN Control System – 12-button Keypad (EU, 2 Gang)-2
ATEN Control System – 12-button Keypad (EU, 2 Gang)-3
ATEN Control System – 12-button Keypad (EU, 2 Gang)-4
ATEN Control System – 12-button Keypad (EU, 2 Gang)-5
ATEN Control System – 12-button Keypad (EU, 2 Gang)-6
ATEN Control System – 12-button Keypad (EU, 2 Gang)-1
Your cart
Total
GBP
Shipping and discount codes are added at checkout.
Add to Cart
Key pad – provides physical connection to the ATEN Control System
Fully customizable with 125 layout combinations of 6 to 12 buttons; customized button engraving service
Easy ID pairing with Control Box for Ethernet communication
Up to 8 keypads connect to a single Control Box for future scalability
Add to Comparison Basket
AddThis Sharing Buttons
Share to LinkedIn
Share to TwitterShare to FacebookShare to Email
ROHS
Weee
ControlSystem
ATEN_Certified_Drivers
Engraving_Service_Warranty_Banner
Overview
Features
Diagram
Specification
Applications
Support and Downloads
The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.
Custom button placement on the keypad can be set in 125 different combinations of 6 to 12 buttons. The example above shows the 12 most commonly used.
Package Contents
– 1x VK112EU Keypad
– 18x Buttons
– 1x Terminal Block
– 1x Faceplate
– 1x User Instructions
| Feature |
Feature Value |
| Interface |
RJ-45 |
| Product colour |
White |
| Maximum operating temperature |
50 °C |
| Buttons quantity |
12 |
| Width |
151.2 mm |
| Depth |
38.7 mm |
| Height |
86.2 mm |
| Weight |
140 g |
| Operating relative humidity (H-H) |
0 – 80% |
| Harmonized System (HS) code |
84716070 |
