Description

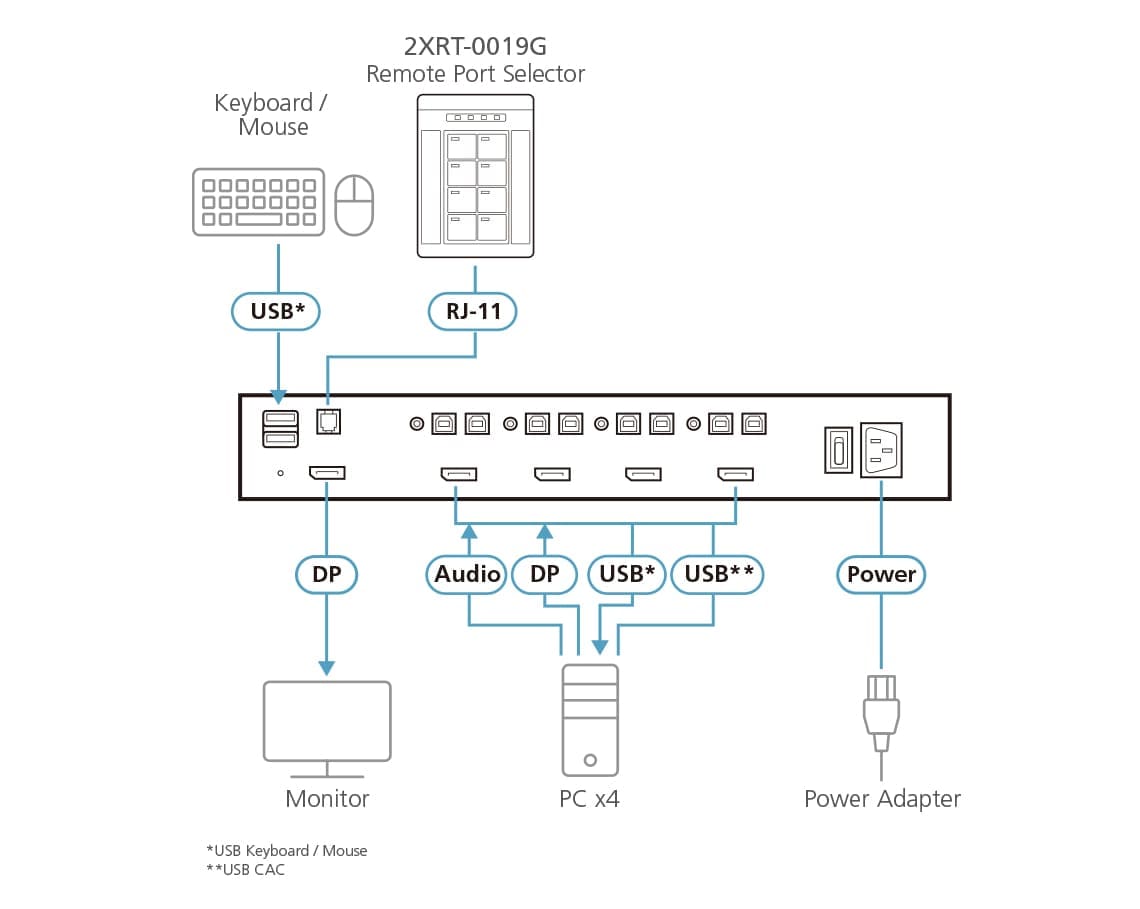

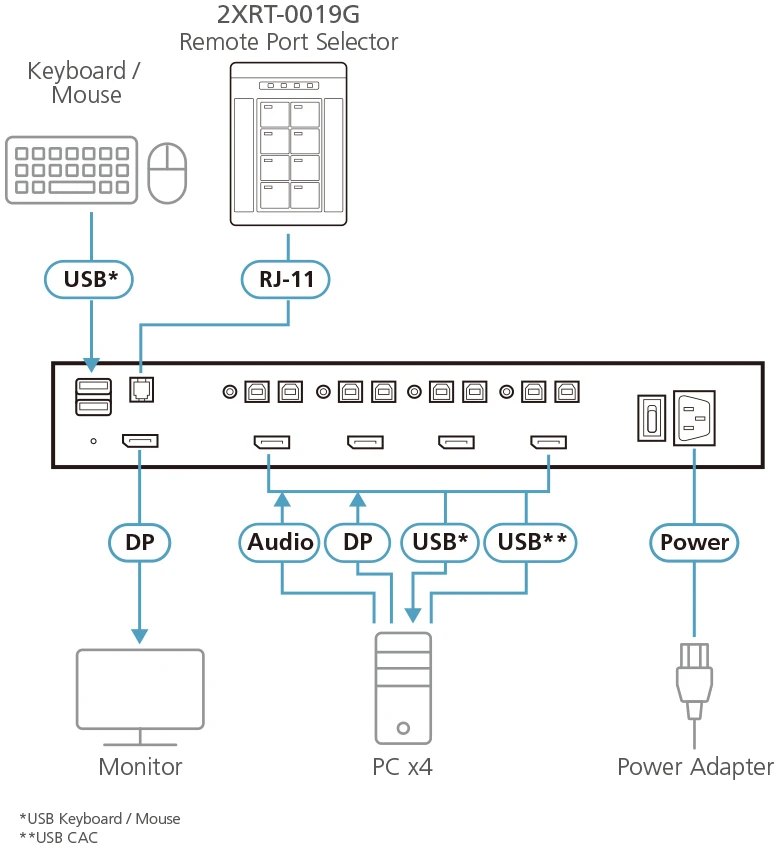

The ATEN PP4.0 Secure KVM Remote Port Selector (RPS) ,2XRT-0019G, is designed to enhance user experience and efficiency while operating ATEN PP4.0 Secure KVM Switches by providing an efficient way to switch between connected computers. Simply plug and play1 the RPS to the Secure KVM Switch2 without any additional software installation required to quickly and easily control your ATEN PP4.0 Secure KVM Switch. Once the RPS is connected, simply press the RPS pushbuttons to switch KVM focus. The status will show on both the KVM front panel LEDs and the RPS front panel LEDs. The RPS’ Tamper-Evident Label and Always-on Chassis Intrusion Detection prevent any attempt at physical tampering, helping to safeguard classified data against malicious attacks. Thanks to its compact size, the device can be placed line-of-sight on the desktop, enabling instant switching across multiple PCs and optimizing productivity while eliminating cable clutter.
Note:
1. Make sure to connect the RPS before powering on the ATEN Secure KVM Switch. If the RPS is connected after the ATEN Secure KVM Switch is powered on, the RPS will not be detected.
2. The RPS is compatible with ATEN PP4.0 2/4/8-Port Secure KVM Switches.
| Feature |
Feature Value |
| Product type |
Keypad |
| Interface |
RJ-11 |
| Material |
Plastic |
| Product colour |
Black, White |
| Maximum operating temperature |
50 °C |
| Cable length |
1.8 m |
| Country of origin |
Taiwan |
| Power source |
DC |
| Input voltage |
5 V |
| Input current |
0.17 A |
| Power consumption (typical) |
0.15 W |
| Width |
55 mm |
| Depth |
155 mm |
| Height |
223 mm |
| Weight |
150 g |
| Package weight |
200 g |
| Operating temperature (T-T) |
0 – 50 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Heat dissipation |
1 BTU/h |
| Package volume |
1982.179 cm³ |
| Master (outer) case gross weight |
8.49 kg |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Master (outer) case height |
330 mm |
| Master (outer) case volume |
42192.102 cm³ |
| Master (outer) case net weight |
6.06 kg |
