Description
Multiple Monitor Technologies
The ground breaking ControlSync technology allows users to control up to six select
MultiSync EA Series units in a multi-monitor configuration. Upon establishing one unit as the
master, you will be able to simultaneously control many performance attributes of the multimonitor setup through the master monitor. ControlSync enables multi-monitor setups of up
to six monitors and controls up to 26 settings.
In addition, ultra narrow bezels reduce the gap between displays and reduce distractions.
Select models feature DisplayPort in and out connections, allowing multiple monitors
connected to a single source output
Comprehensive Input Panel

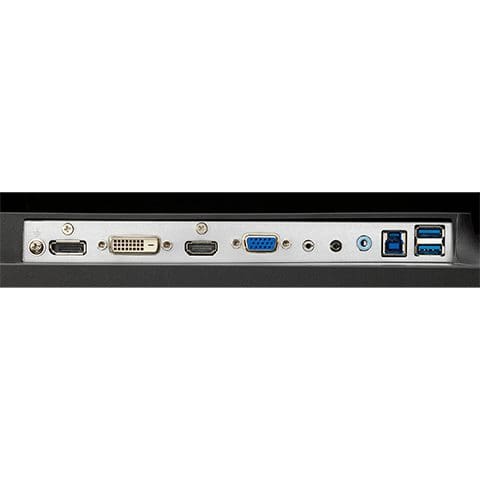

DisplayPort, HDMI, DVI-D* and 15-pin VGA*, as well as USB hubs connect you to the latest
peripherals and future-proofs your investment. The USB Type-C input provides video, audio,
data and power all through one cable, simplifying connections to mobile devices.
(EA271Q, EA271U)
Adjustable for Every Workspace

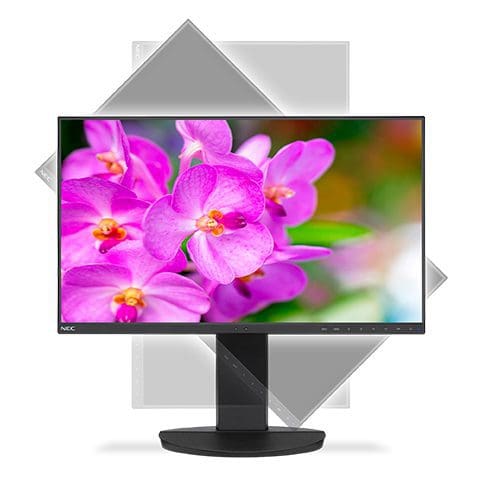

Four-way ergonomic stand boasts dual-direction pivot, tilt, swivel and height adjustment up
to 150mm to maximize your viewing comfort. In addition, Space-saving multimedia speakers

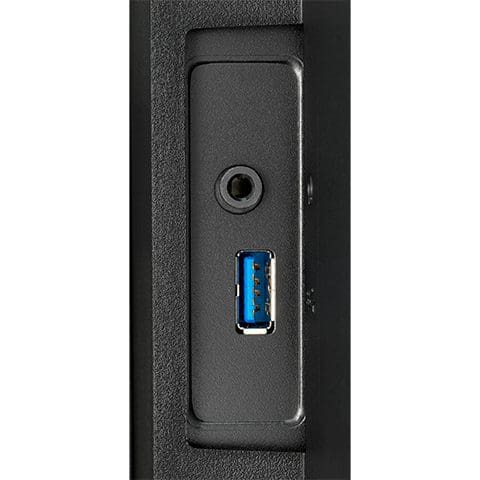

are hidden to maintain the monitor’s aesthetic appeal (headphone jack also included).
IT-Friendly Features
Customize Setting allows both users and IT administrators to set and restore preferred
settings with just one touch, contributing to a free-seating business environment.
The optional NaViSet™ Administrator 2.0 software offers an intuitive graphical interface,
allowing for easy adjustment of display settings via mouse and keyboard. NaViSet
Administrator provides all the advanced control to remotely located IT professionals.
| Feature |
Feature Value |
| Display diagonal |
61 cm (24″) |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
N |
| HD type |
Full HD |
| Panel type |
IPS |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
16.78 million colours |
| Backlight type |
W-LED |
| Display brightness (typical) |
250 cd/m² |
| Response time |
5 ms |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Aspect ratio |
16:9 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.25 x 0.25 mm |
| Pixel density |
93 ppi |
| Horizontal scan range |
31.5 – 75 kHz |
| Vertical scan range |
50 – 60 Hz |
| Viewable size, horizontal |
17.8 cm |
| Viewable size, vertical |
17.8 cm |
| DDC/CI |
Y |
| RGB colour space |
sRGB |
| Colour gamut |
75% |
| NTSC coverage (typical) |
72% |
| 3D |
N |
| NVIDIA G-SYNC |
N |
| AMD FreeSync |
N |
| Low Blue Light technology |
Y |
| Built-in speaker(s) |
Y |
| Built-in camera |
N |
| Market positioning |
Business |
| Product colour |
Black |
| Certification |
Low Blue Light, Flicker Free, TCO |
| Built-in USB hub |
Y |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
3 |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Y |
| VESA mounting |
Y |
| Height adjustment |
Y |
| Pivot |
Y |
| Swivelling |
Y |
| Plug and Play |
Y |
| Tilt adjustment |
Y |
| Energy efficiency class (SDR) |
C |
| Energy consumption (SDR) per 1000 hours |
11 kWh |
| Power consumption (typical) |
15 W |
| Power consumption (PowerSave) |
0.29 W |
| Energy efficiency scale |
A to G |
| Operating temperature (T-T) |
5 – 35 °C |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage relative humidity (H-H) |
10 – 85% |
| Non-operating altitude |
5000 – 12192 m |
| Cables included |
DisplayPort, USB |
| Manual |
Y |
| Width (with stand) |
498.9 mm |
| Depth (with stand) |
250 mm |
| Height (with stand) |
337.2 mm |
| Weight (with stand) |
8.3 kg |
| Width (without stand) |
49.9 cm |
| Depth (without stand) |
4.56 cm |
| Height (without stand) |
32 cm |
| Weight (without stand) |
5.9 kg |
| Height (max) |
48.7 cm |
| Sustainability certificates |
RoHS, N, ENERGY STAR |
| Harmonized System (HS) code |
85285210 |
| On/off switch |
Y |
| TV tuner integrated |
N |
