Description

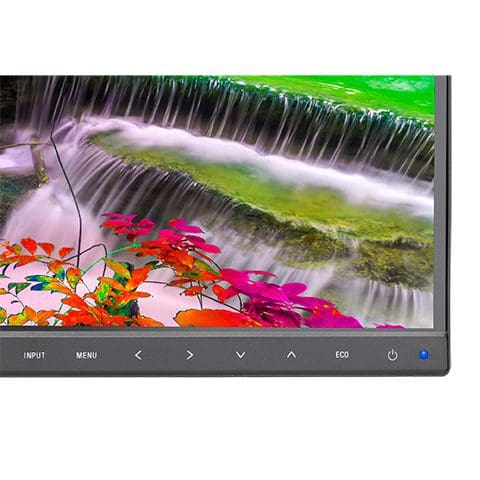

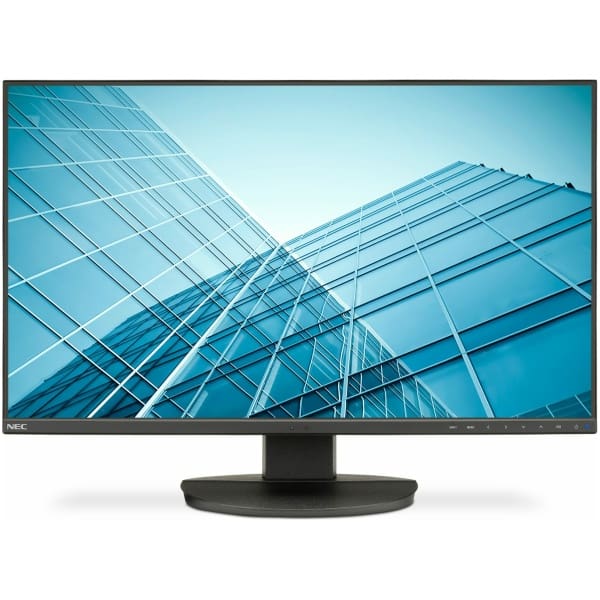

The 27” NEC MultiSync EA271F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed for excellent imaging and ideal for multiple monitor configurations, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA271F allows for a slimmer profile, lighter weight and increased power savings. This model also boasts a 150mm height-adjustable stand and full connectivity with DisplayPort, HDMI, DVI-D and VGA inputs. The EA271F includes touch-sensitive On Screen Display controls, streamlined cable management and ControlSync™ technology, which allows users to control up to six units in a multi-monitor configuration.
| Feature |
Feature Value |
| Display diagonal |
68.6 cm (27″) |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Display technology |
LED |
| Touchscreen |
N |
| HD type |
Full HD |
| Panel type |
IPS |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
16.78 million colours |
| Backlight type |
W-LED |
| Display brightness (typical) |
250 cd/m² |
| Response time |
6 ms |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.31 x 0.31 mm |
| Viewable size, horizontal |
69.8 cm |
| Viewable size, vertical |
33.6 cm |
| DDC/CI |
Y |
| Colour gamut |
72% |
| Built-in speaker(s) |
Y |
| Product colour |
Black |
| Built-in USB hub |
Y |
| USB Type-A downstream ports quantity |
3 |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Audio output |
Y |
| HDCP |
Y |
| Wi-Fi |
N |
| Bluetooth |
N |
| Ethernet LAN |
N |
| VESA mounting |
Y |
| Cable lock slot |
Y |
| Height adjustment |
Y |
| Panel mounting interface |
100 x 100 mm |
| Cable lock slot type |
Kensington |
| Pivot |
Y |
| Swivelling |
Y |
| On Screen Display (OSD) |
Y |
| Plug and Play |
Y |
| LED indicators |
Y |
| Tilt adjustment |
Y |
| Energy efficiency class (SDR) |
C |
| Energy consumption (SDR) per 1000 hours |
11 kWh |
| Power consumption (typical) |
17 W |
| Power consumption (PowerSave) |
0.27 W |
| Energy efficiency scale |
A to G |
| Operating temperature (T-T) |
5 – 35 °C |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage relative humidity (H-H) |
10 – 85% |
| Operating altitude |
0 – 2000 m |
| Non-operating altitude |
2000 – 12192 m |
| Width (with stand) |
610.2 mm |
| Depth (with stand) |
250 mm |
| Height (with stand) |
527.3 mm |
| Weight (with stand) |
7.6 kg |
| Width (without stand) |
610.2 mm |
| Depth (without stand) |
45.6 mm |
| Height (without stand) |
359.8 mm |
| Weight (without stand) |
5 kg |
| Bezel width (side) |
1 mm |
| Bezel width (top) |
1 mm |
| Bezel width (bottom) |
1.73 cm |
| Package width |
730 mm |
| Package depth |
204 mm |
| Package height |
475 mm |
| Package weight |
10.8 kg |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
85285210 |
| On/off switch |
Y |
| Miracast |
N |
